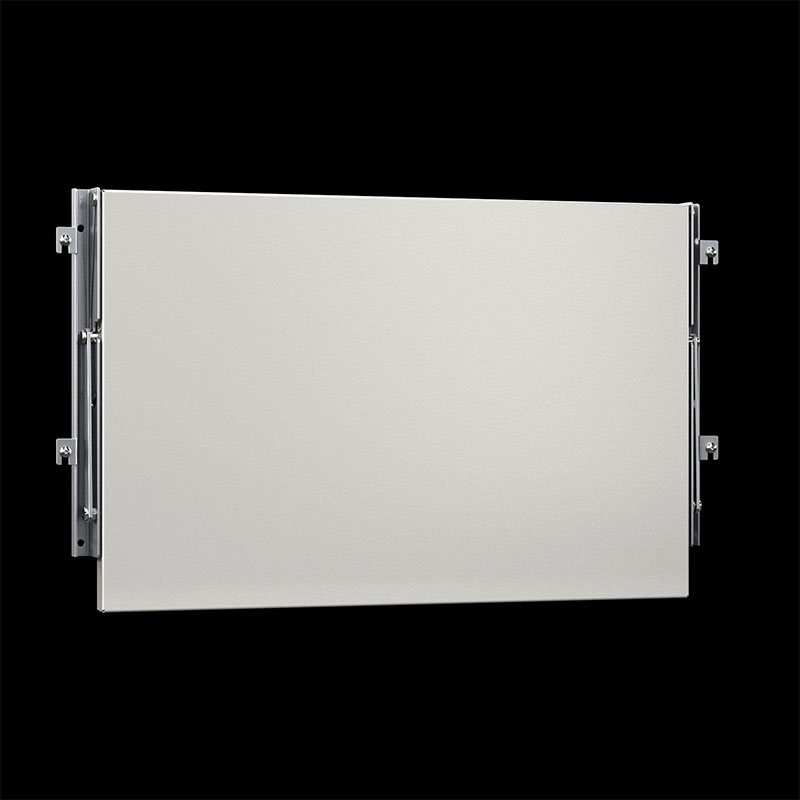

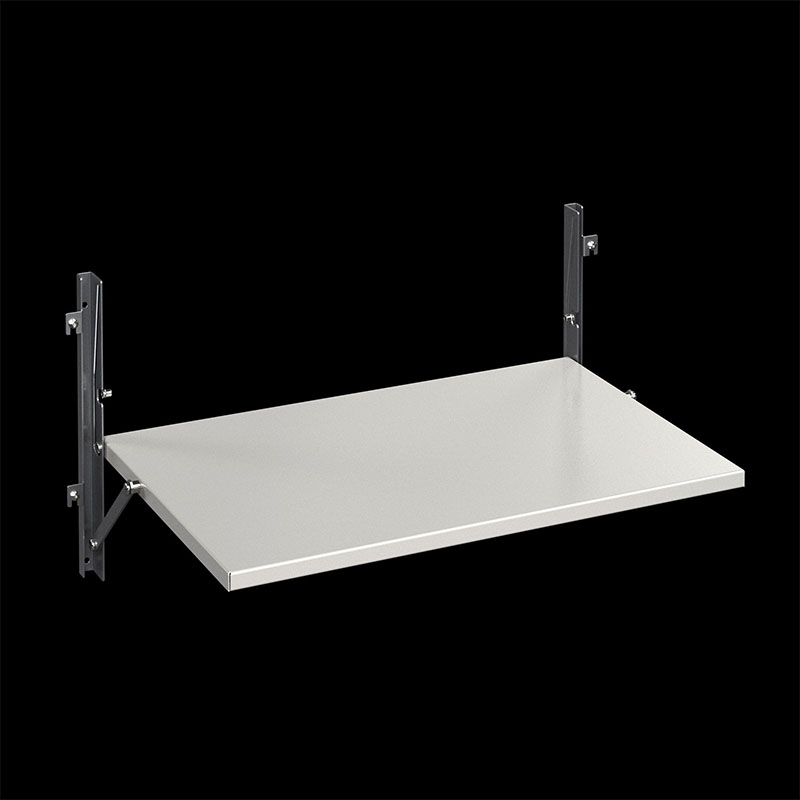

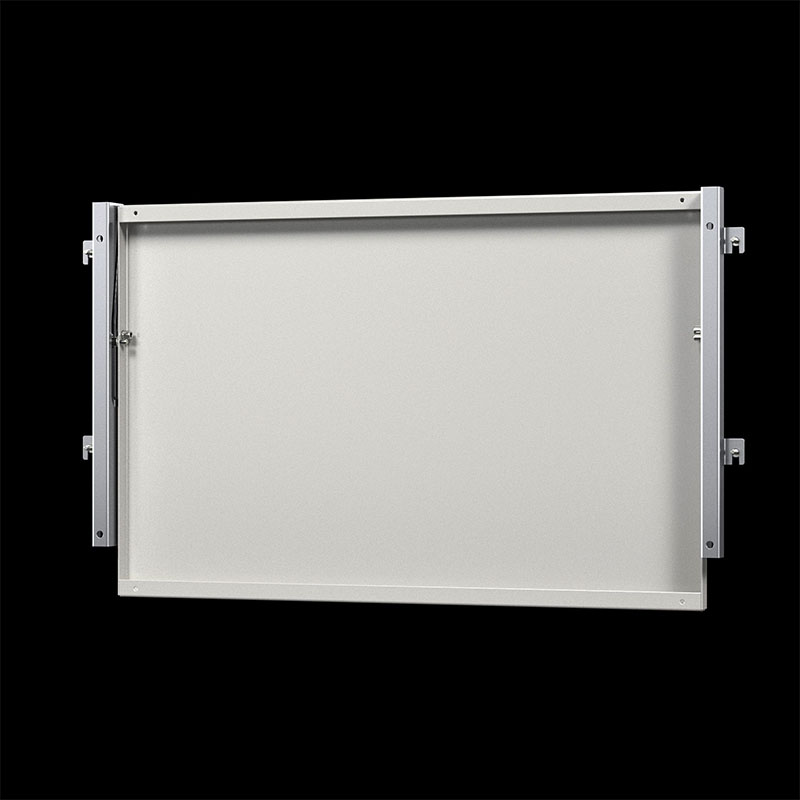

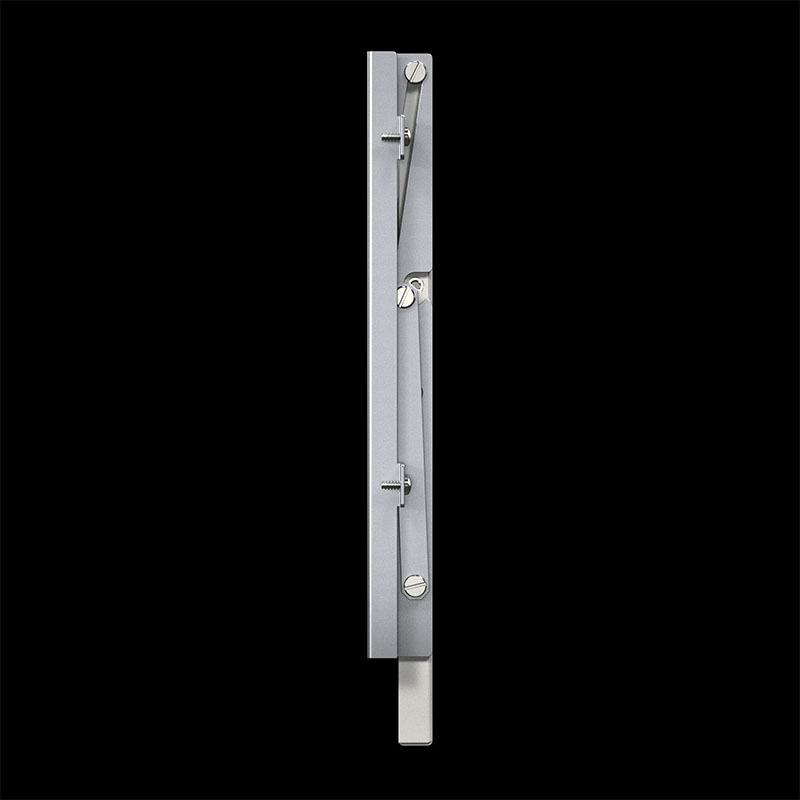

PS 4638600 Utility tray for VX, TS, VX SE, TP, PC
For programming devices etc., prepared for mounting on the tubular frame. When required for servicing, it folds down quickly with a maximum support area, and after use is stowed away in a space-saving design.
Product description
PS utility tray, for VX, TS, VX SE, PC, for door width 600 mm
Article no.:
PS 4638600
Product description
For programming devices etc., prepared for mounting on the tubular frame. When required for servicing, it folds down quickly with a maximum support area, and after use is stowed away in a space-saving design.
Material
Carbon steel
Color
RAL 7035
Support area
Width: 413 mm
Depth: 400 mm
( Width: 16.3 ˝
Depth: 15.7 ˝ )
Suitable for door width
600 mm
( 23.6 ˝ )
Installation options
On the tubular door frame
For external mounting on surfaces.
Load capacity
max. 300 N
Support area
Width: 413 mm
Depth: 400 mm
( Width: 16.3 ˝
Depth: 15.7 ˝ )
Suitable for
Enclosure type: VX
TS
VX SE
PC
Packaging unit
1 pc(s).
Net weight
3.471 kg
Gross weight
3.671 kg
PCF/VE (cradle-to-gate)
14.5 kg CO2 eq (Cat B)
Information regarding the PCF class
Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
Customs tariff number
94039910
EAN
4028177107496
ETIM 9
EC000784
ETIM 8
EC000784
ECLASS 8.0
27180504
Product description
PS utility tray, for VX, TS, VX SE, PC, for door width 600 mm
