Article no.:

TS 8612080

Version

For the inner mounting level and for mounting on doors

Product description

For universal skeleton structures or partial assembly. Simply locate onto the punchings and secure.

Material

Carbon steel

Surface finish

Zinc-plated

Supply includes

Assembly screws

Length

790 mm

( 31.1 ˝ )

Suitable for door width

900 mm

( 35.4 ˝ )

Installation options

On the vertical TS, VX SE enclosure profile: on the inner mounting level, all-round, height-offset

For SE, may additionally be mounted on the top horizontal section in the depth

In the tubular door frame for TS, SE and PC

In TP via rails for interior installation: in width, for inner mounting level

As installation kit for device bases in TS, VX SE, simply hook in and secure

Mounting tip

The rail for interior installation is required when installing in TP

Suitable for

Enclosure type: VX SE

TP

PC

IW

TX CableNet

Width/depth: 800 mm

( Enclosure type: VX SE

TP

PC

IW

TX CableNet

Width/depth: 31.5 ˝ )

Packaging unit

4 pc(s).

Net weight

3.384 kg

Gross weight

3.54 kg

PCF/VE (cradle-to-gate)

13.7 kg CO2 eq (Cat B)

Information regarding the PCF class

Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared

Customs tariff number

73269098

EAN

4028177212107

ETIM 9

EC002625

ECLASS 8.0

27189234

Product description

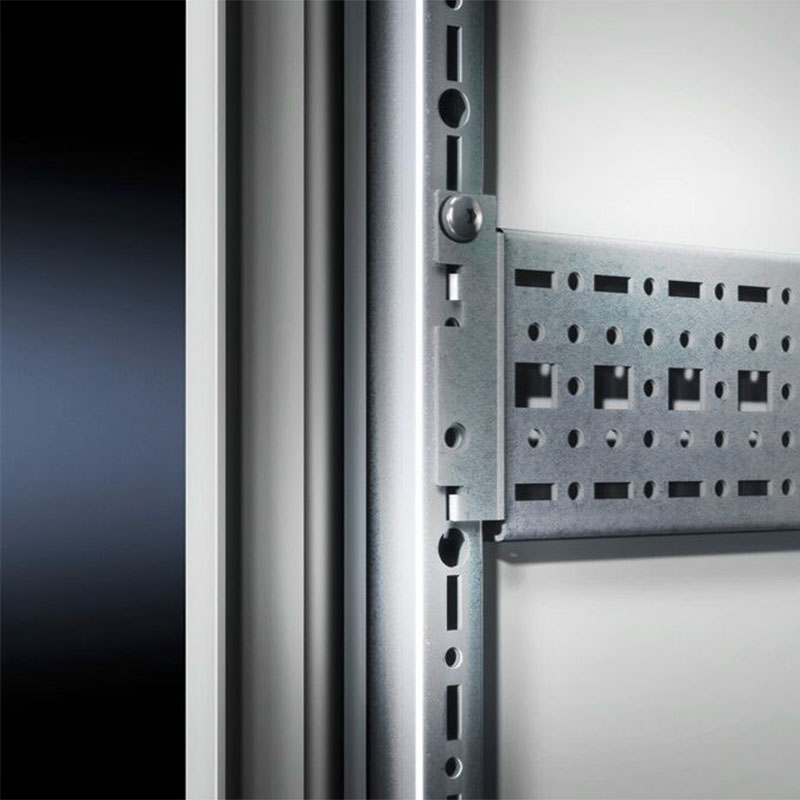

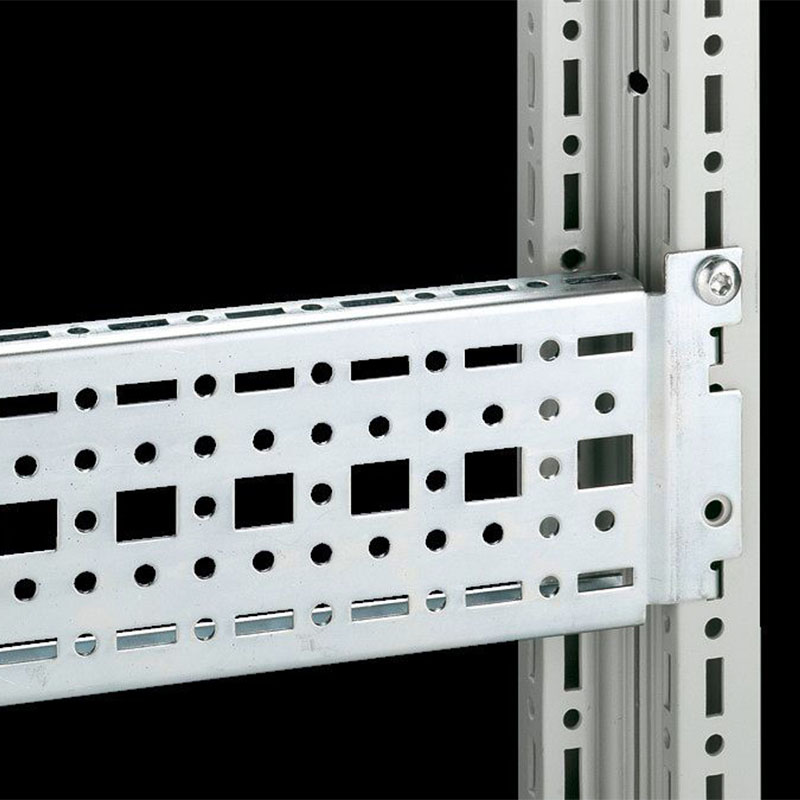

TS punched section with mounting flange, 17 x 73 mm, for inner mounting level: for W/D: 800 mm, for door width: 900 mm, L: 790 mm
