Article no.:

TS 8612150

Version

For the outer mounting level

Product description

For universal skeleton structures or partial assembly. Simply locate onto the punchings and secure.

Material

Carbon steel

Surface finish

Zinc-plated

Supply includes

Assembly screws

Length

440 mm

( 17.3 ˝ )

Installation options

On the vertical TS, VX SE enclosure profile: on the inner mounting level, all-round, height-offset

On the horizontal VX SE enclosure section top, in depth

In TP via rails for interior installation: in width, for inner mounting level

As installation kit for device bases in TS, VX SE, simply hook in and secure

Mounting tip

The rail for interior installation is required when installing in TP

Suitable for

Enclosure type: VX SE

TP

PC

IW

Width/depth: 500 mm

( Enclosure type: VX SE

TP

PC

IW

Width/depth: 19.7 ˝ )

Packaging unit

4 pc(s).

Net weight

1.92 kg

Gross weight

1.96 kg

PCF/VE (cradle-to-gate)

7.6 kg CO2 eq (Cat B)

Information regarding the PCF class

Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared

Customs tariff number

73269098

EAN

4028177212145

ETIM 9

EC002625

ECLASS 8.0

27189234

Product description

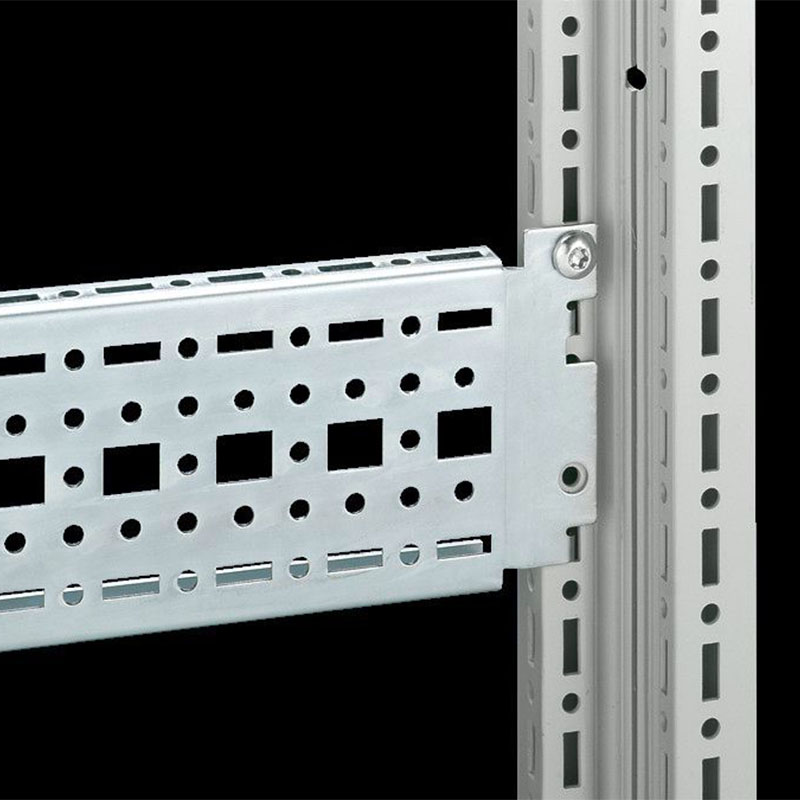

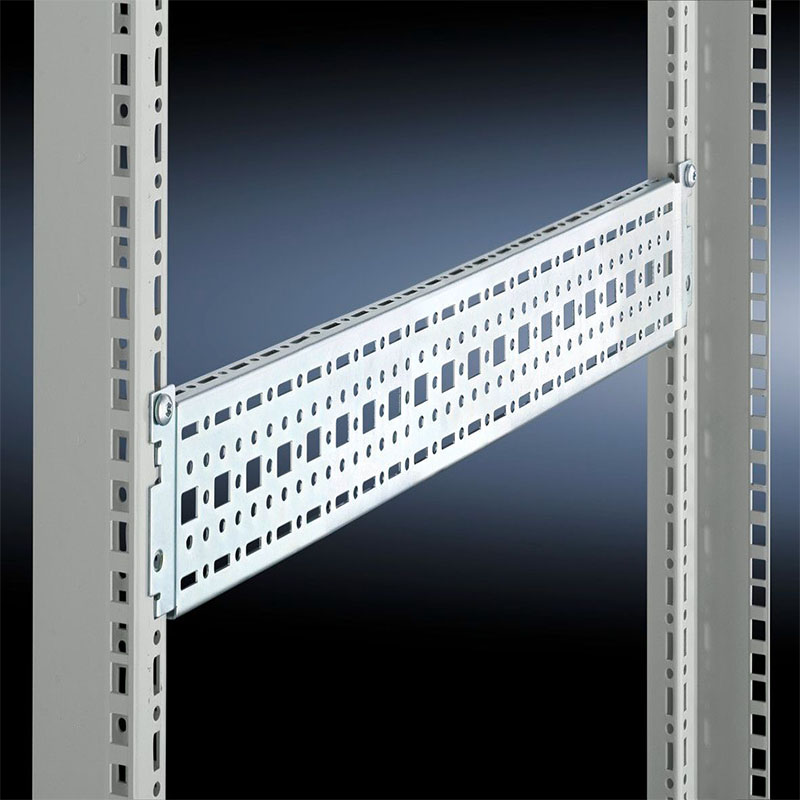

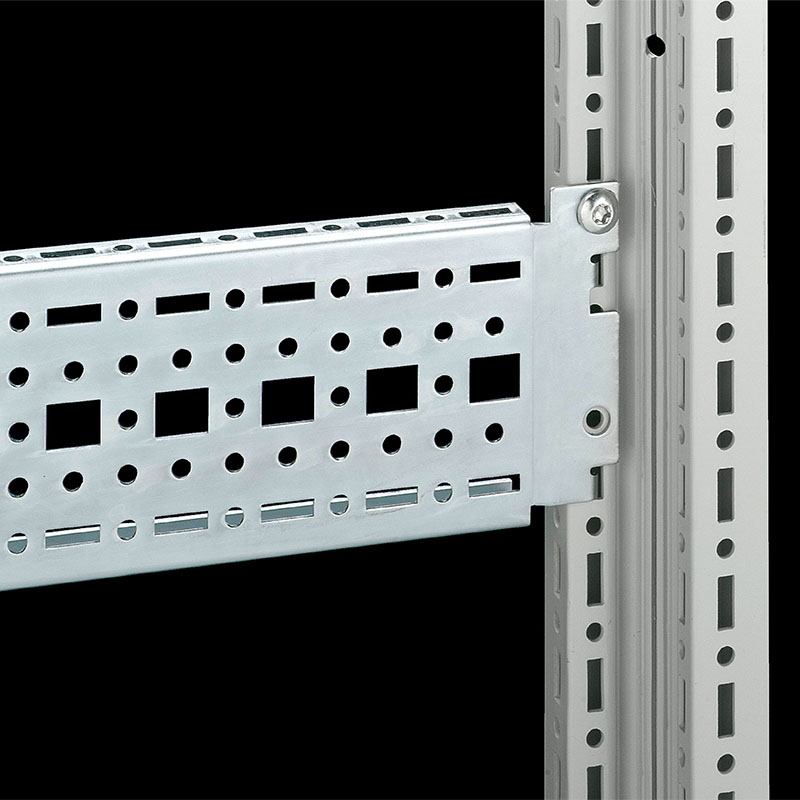

TS punched section with mounting flange, 17 x 73 mm, for outer mounting level: W/D: 500 mm, L: 440 mm
