Cabinet Accessories

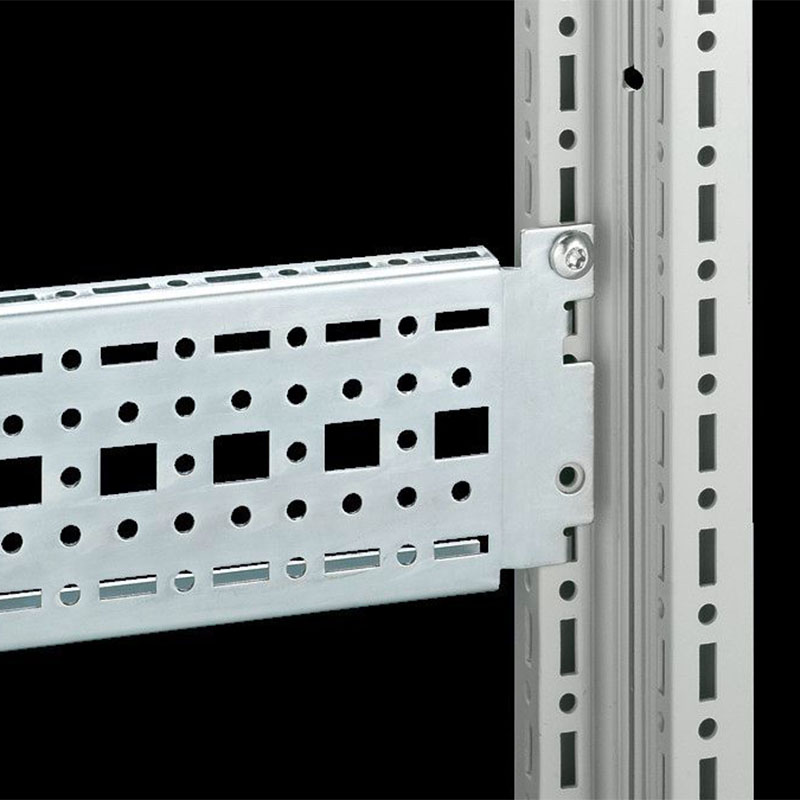

TS 8612180 TS System Chassis 17 x 73 mm
For universal skeleton structures or partial assembly. Simply locate into the punchings and secure.
Product description
TS punched section with mounting flange, 17 x 73 mm, for outer mounting level: W/D: 800 mm, L: 740 mm
Article no.:
TS 8612180
Version
For the outer mounting level
Product description
For universal skeleton structures or partial assembly. Simply locate onto the punchings and secure.
Material
Carbon steel
Surface finish
Zinc-plated
Supply includes
Assembly screws
Length
740 mm
( 29.1 ˝ )
Installation options
On the vertical TS, VX SE enclosure profile: on the inner mounting level, all-round, height-offset
On the horizontal VX SE enclosure section top, in depth
In TP via rails for interior installation: in width, for inner mounting level
As installation kit for device bases in TS, VX SE, simply hook in and secure
Mounting tip
The rail for interior installation is required when installing in TP
Suitable for
Enclosure type: VX SE
TP
PC
IW
TX CableNet
Width/depth: 800 mm
( Enclosure type: VX SE
TP
PC
IW
TX CableNet
Width/depth: 31.5 ˝ )
Packaging unit
4 pc(s).
Net weight
3.18 kg
Gross weight
3.34 kg
PCF/VE (cradle-to-gate)
12.8 kg CO2 eq (Cat B)
Information regarding the PCF class
Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
Customs tariff number
73269098
EAN
4028177212169
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
TS punched section with mounting flange, 17 x 73 mm, for outer mounting level: W/D: 800 mm, L: 740 mm
