Article no.:

TS 8802060

Product description

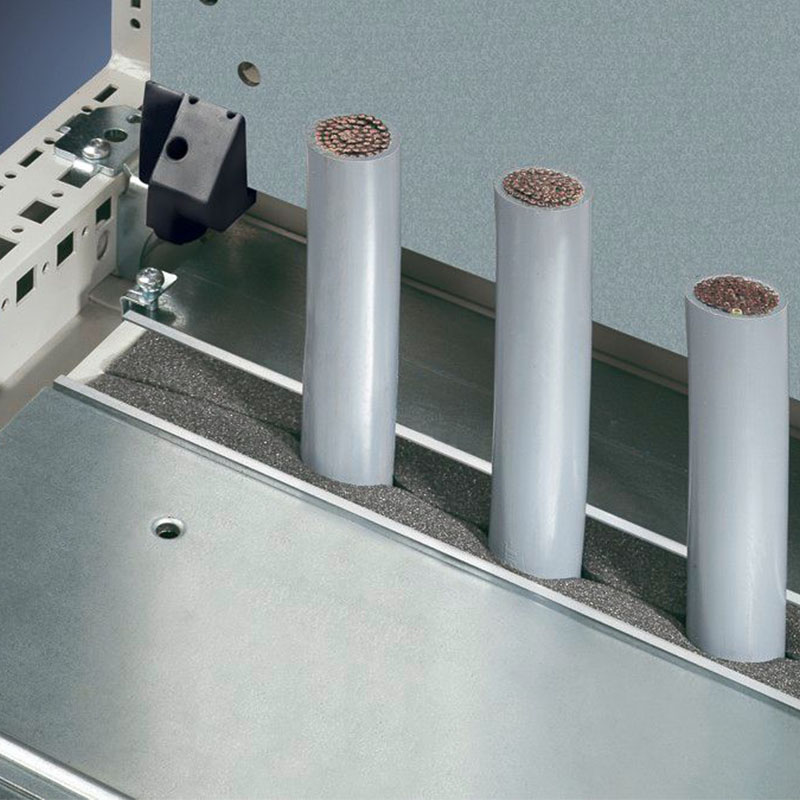

To seal the cable entry between the base plates.

Benefits

Particularly well-suited to cables with identical cross-sections

Technical specifications

Foam rubber cable clamping profile: Cross-section: 30 x 25 mm

Applications

For top-mounting on base plates

Material

Extruded aluminum section

Foam rubber cable clamping profile: PU foam

Supply includes

Plug-in sections, incl. foam rubber clamp strip

Note

2 pc(s). are sufficient for one base opening up to an enclosure width of 800 mm

From an enclosure width of 1,000 mm, two base openings are provided. 4 units per enclosure may be fitted

Suitable for

Enclosure type: TS: = 600 mm

Enclosure type: TP

( Enclosure type: TS: = 23.6 ˝

Enclosure type: TP )

Protection category IP to IEC 60 529

IP 55 if correctly installed

Packaging unit

2 pc(s).

Net weight

0.208 kg

Gross weight

0.212 kg

Customs tariff number

76042990

EAN

4028177382480

ETIM 9

EC000211

ECLASS 8.0

27142421

Product description

TS profile for cable entry, centered, for TS, VX SE, TP, for W: 600 mm
