Article no.:

VX 8617020

Product description

For variable and individual interior installation of the enclosure frame on the outer mounting level.

Benefits

Simply place into the system punchings from the outside and screw-fasten

System punchings on all four sides

With pre-bayed enclosures, the system chassis can also be mounted from the inside of the enclosure

Material

Carbon steel

Surface finish

Zinc-plated

Supply includes

Assembly components

Installation options

On the outer mounting level on the enclosure section

On the outer mounting level between two 23 x 64 mm system chassis

Suitable for

Enclosure type: VX

Width/depth: 500 mm

( Enclosure type: VX

Width/depth: 19.7 ˝ )

Packaging unit

4 pc(s).

Net weight

2 kg

Gross weight

2.075 kg

PCF/VE (cradle-to-gate)

9.99

Customs tariff number

73269098

EAN

4028177829053

ETIM 9

EC002620

ECLASS 8.0

27189234

Product description

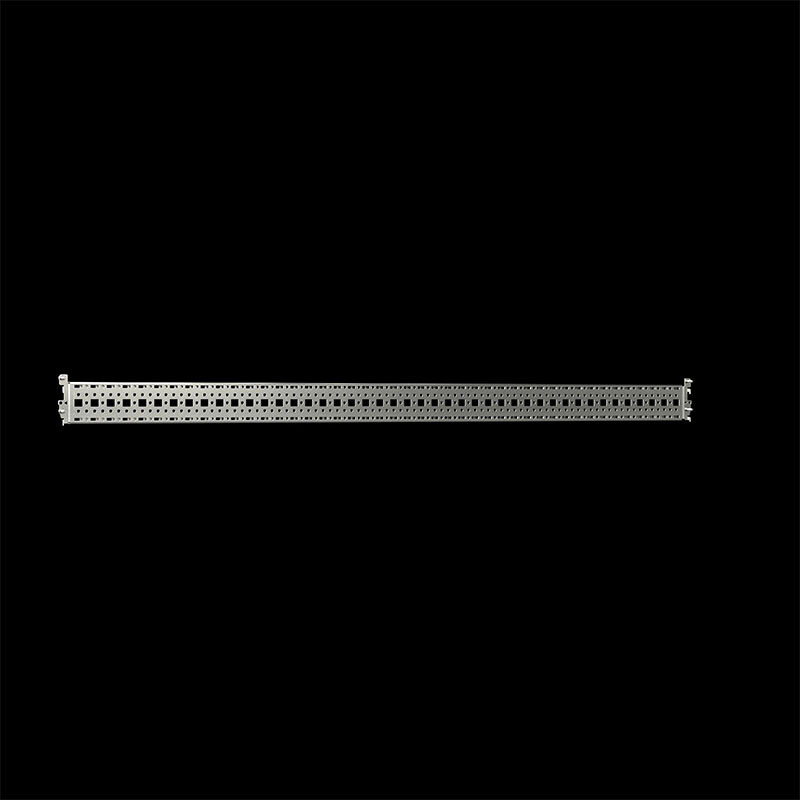

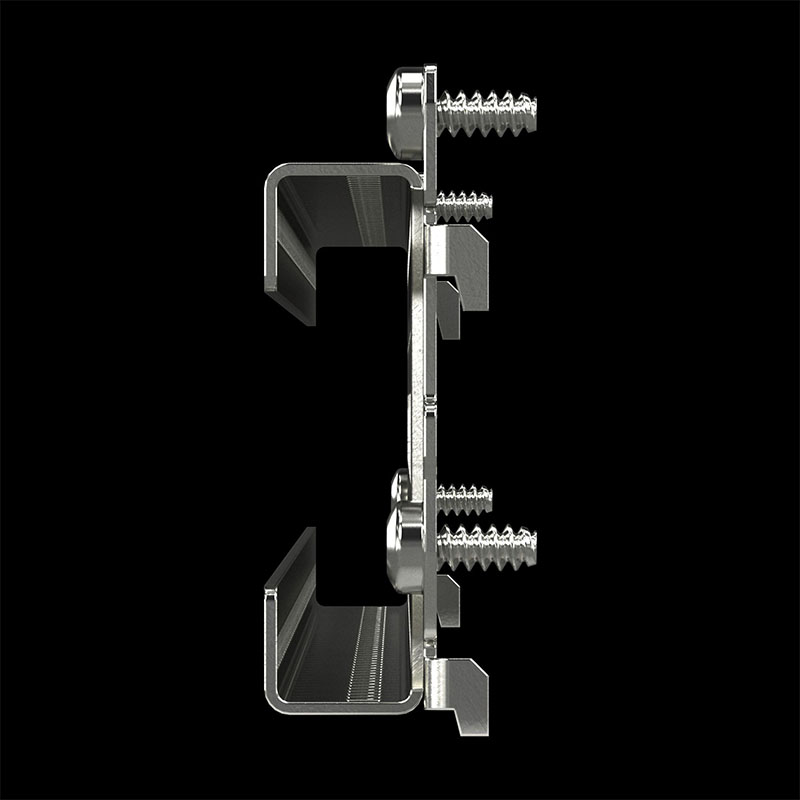

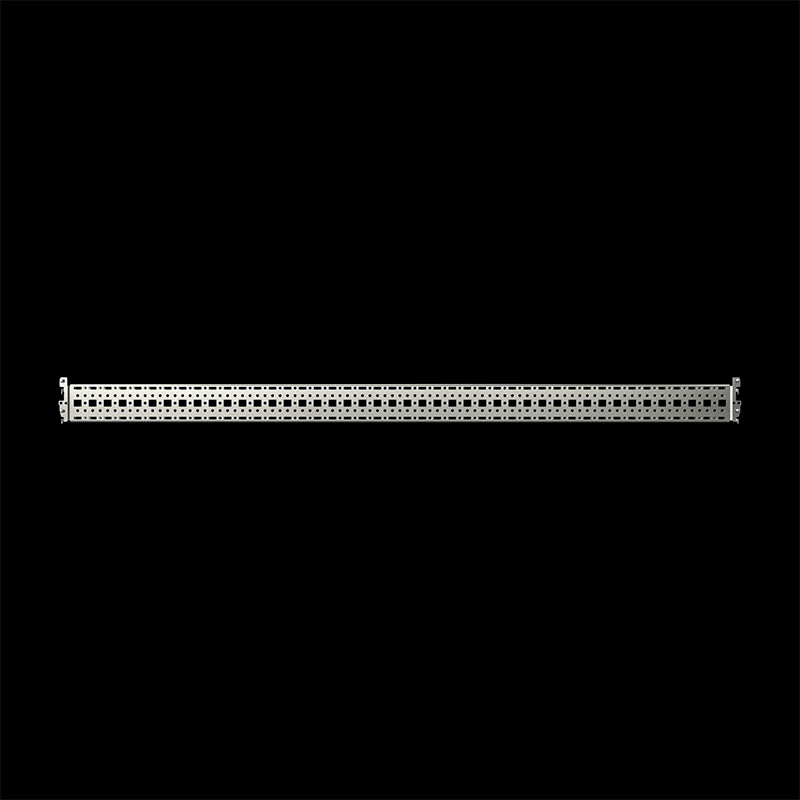

VX Punched section, with mounting flange 18 x 64 mm, for outer mounting level
