Article no.:

VX 8617110

Product description

For variable and individual interior fitting of the enclosure frame on the inner mounting level and for installation in compact control enclosures.

Benefits

Simply place in the system punchings and screw-fasten

System punchings on all four sides

With slots at the top and bottom for cage nuts, for attaching your own components via metric screws

Material

Carbon steel

Surface finish

Zinc-plated

Supply includes

Assembly components

Installation options VX

In enclosure width/depth 400 mm on the inner mounting level

Installation options VX SE

In enclosure depth 400 mm, on the inner mounting level, in conjunction with adaptor rail for VX compatibility

Installation options AX

In enclosure width/height 400 mm, in conjunction with rail for interior installation AX and base configuration rail for AX

Installation options AX stainless steel

In enclosure width 400 mm, in conjunction with the base configuration rail

Installation options AX plastic

In enclosure width 400 mm, in conjunction with universal bracket

Installation options CX

In pedestal in enclosure depth 400 mm

In one-piece console lower part in enclosure depth 400 mm

Installation options VX Base

In base/plinth width/depth 400 mm on the base/plinth panels, in conjunction with base/plinth installation bracket

Suitable for

Enclosure type: VX

VX IT

VX SE

AX

AX plastic

Suitable for width or height or depth: 400 mm

Suitable for

VX base system

Packaging unit

4 pc(s).

Net weight

1.4 kg

Gross weight

1.53 kg

PCF/VE (cradle-to-gate)

8.39

Customs tariff number

73269098

EAN

4028177829114

ETIM 9

EC002620

ECLASS 8.0

27189234

Product description

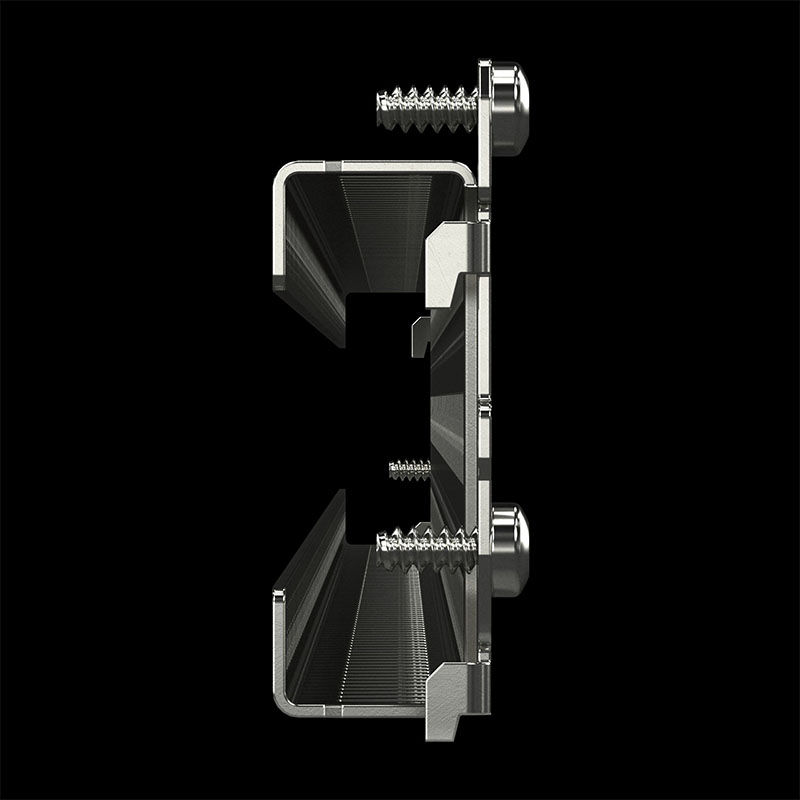

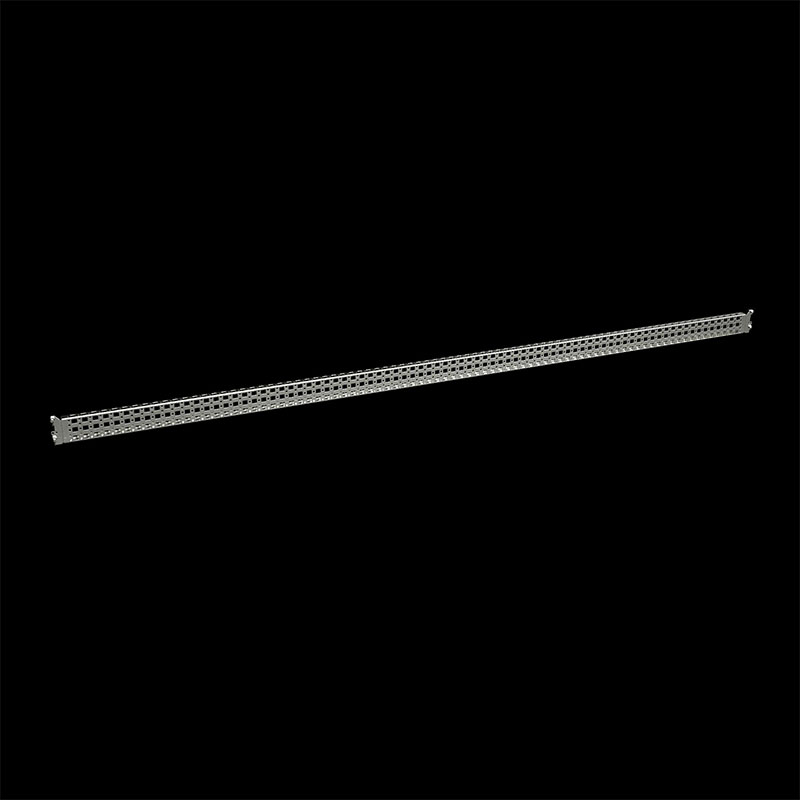

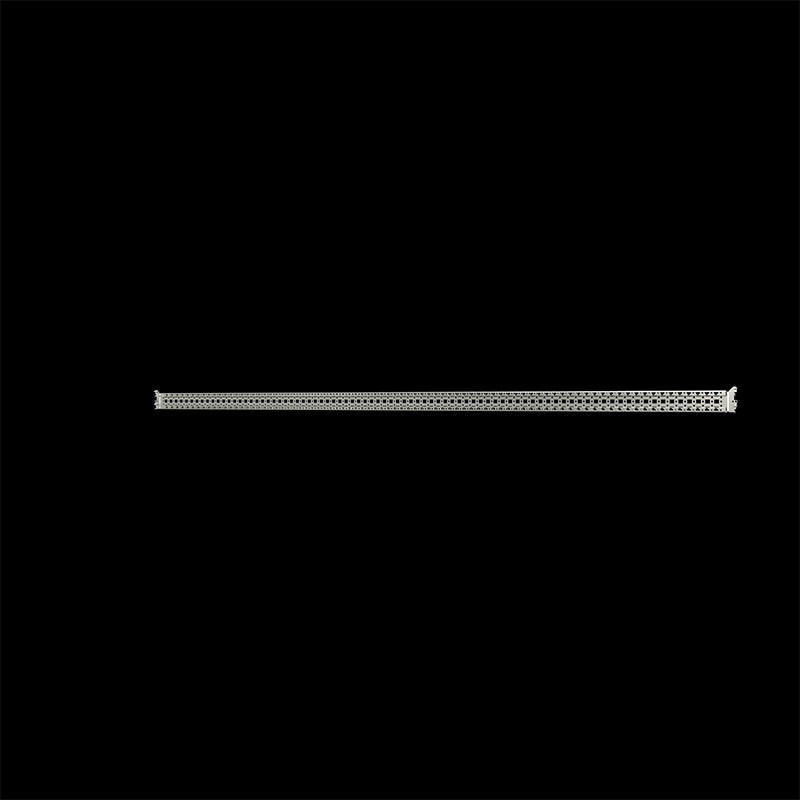

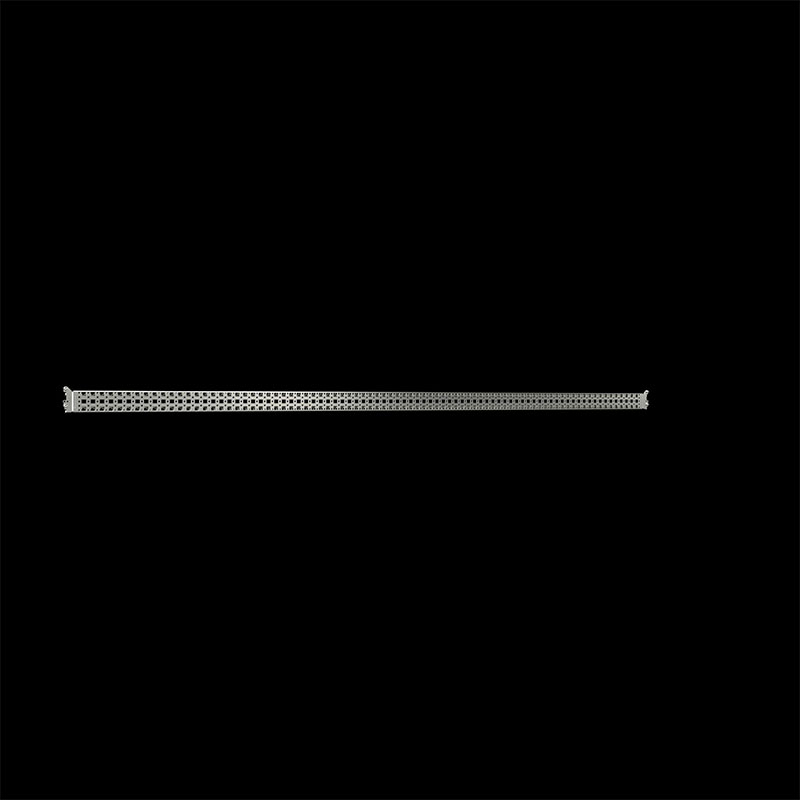

VX Punched section, with mounting flange 23 x 64 mm, for inner mounting level
