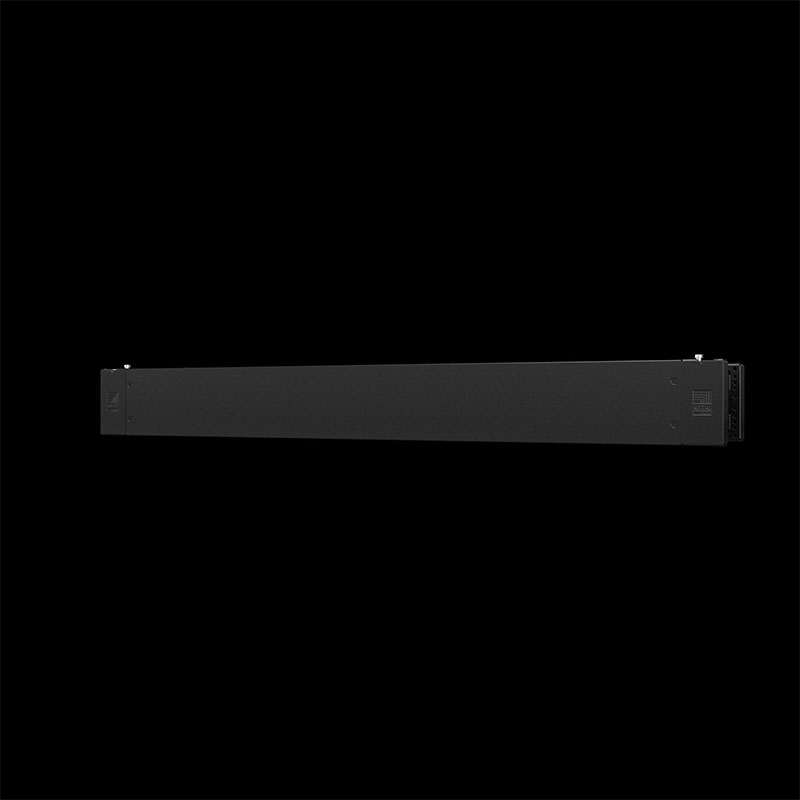

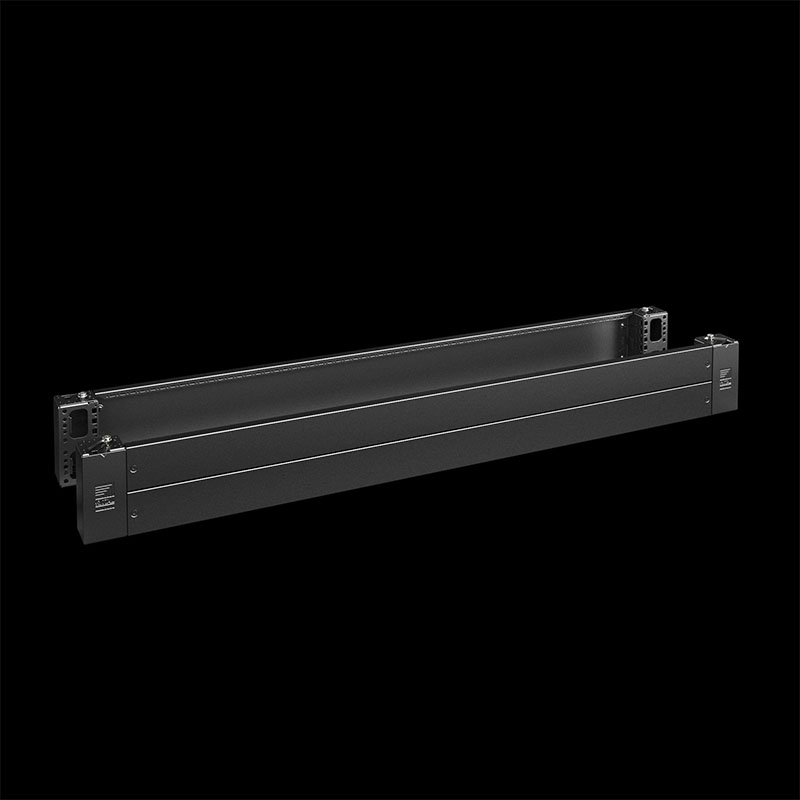

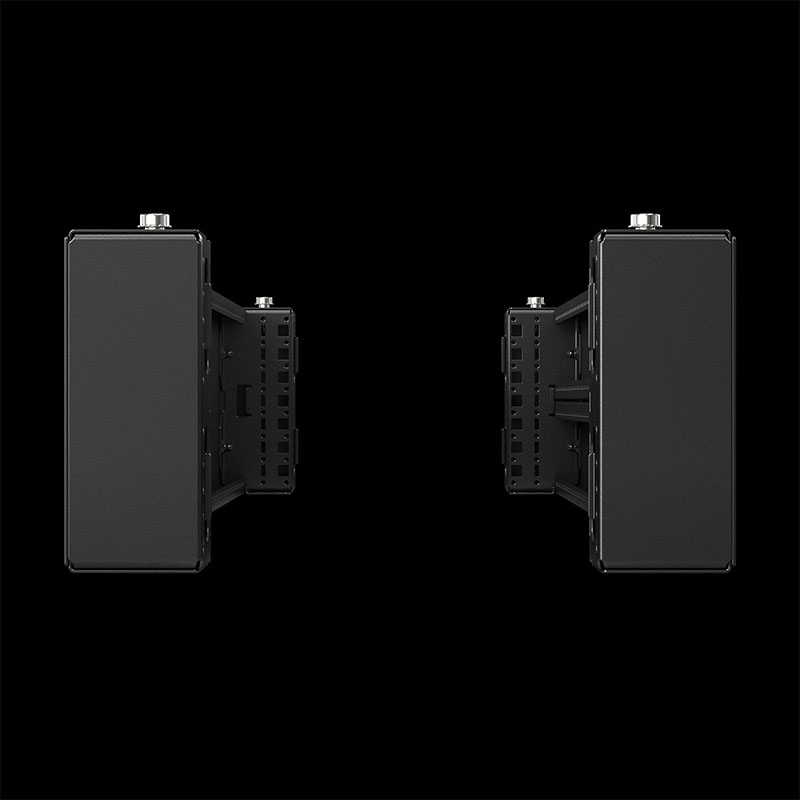

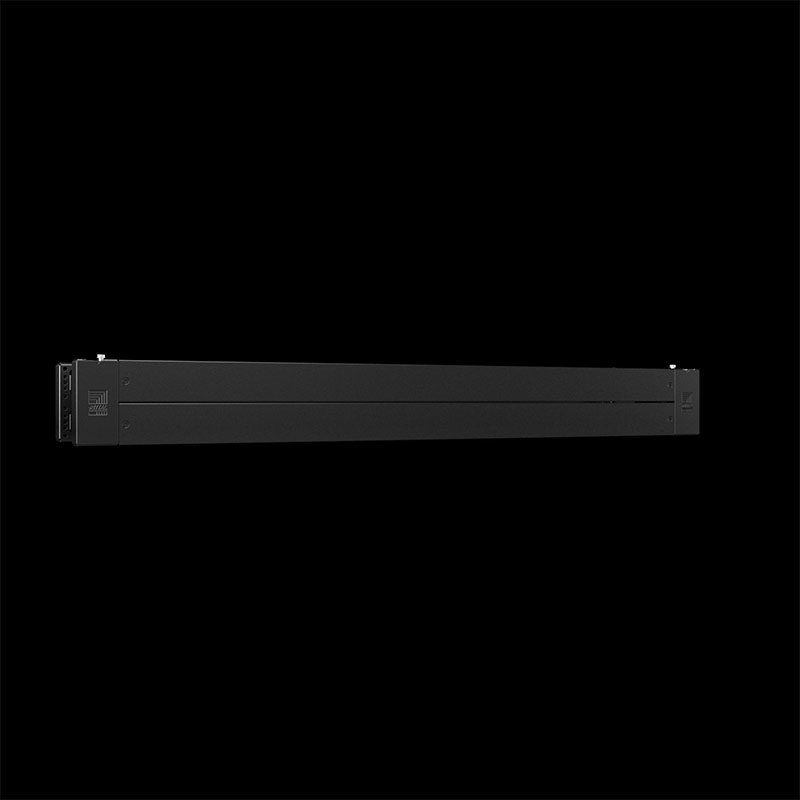

VX 8660000 Base/plinth corner pieces with base/plinth trim panels, front and rear for base/plinth system VX, carbon steel
Base/plinth corner pieces with trim panels for flexible cable entry.
Product description
VX base corner piece with base trim panel, front and rear, : 100 mm, for W H: 300 mm, carbon steel
Article no.:
VX 8660000
Benefits
Reliable - very high stability of the base
Flexible – numerous interior expansion options with the VX accessories
Simple – flush finish between the baying points
Material
Base/plinth corner piece: Carbon steel
Base/plinth trim panels, front/rear: Carbon steel
Corner and baying covers: Plastic
Color
RAL 9005
Supply includes
4 x corner covers
Assembly components
4 x base/plinth corner pieces, 100 mm high
2 x base/plinth trim panels, front/rear, 100 mm high
Note
Base/plinth trim panels, on the side for closing off a base/plinth unit, for additional stabilization of the bases/plinths to one another, or for interior installation of the bases/plinths
Dimensions
Height: 100 mm
( Height: 3.94 ˝ )
Suitable for
Enclosure type: VX
VX IT
VX SE
TX CableNet
TS
TS IT
TP
PC
IW
CX
Width: = 300 mm
( Enclosure type: VX
VX IT
VX SE
TX CableNet
TS
TS IT
TP
PC
IW
CX
Width: = 11.8 ˝ )
Type rating according to UL 50E
Type 1
Type 12
Weight/packaging unit
3.24 kg
( 7.1 lb. )
Packaging unit
2 pc(s).
Net weight
3.2 kg
Gross weight
3.243 kg
PCF/VE (cradle-to-gate)
13.39 kg CO2 eq (Cat B)
Information regarding the PCF class
Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
Customs tariff number
94039910
EAN
4028177978027
ETIM 9
EC000721
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
VX base corner piece with base trim panel, front and rear, : 100 mm, for W H: 300 mm, carbon steel
