Article no.:

VX 8660025

Benefits

Reliable - very high stability of the base

Flexible – numerous interior expansion options with the VX accessories

Simple – flush finish between the baying points

Material

Base/plinth corner piece: Carbon steel

Base/plinth trim panels, front/rear: Carbon steel

Corner and baying covers: Plastic

Color

RAL 9005

Supply includes

4 x corner covers

Assembly components

4 x base/plinth corner pieces, 200 mm high

1 base/plinth trim panel, front/rear, 200 mm

2 x base/plinth trim panels, front/rear, 100 mm high

Note

Base/plinth trim panels, on the side for closing off a base/plinth unit, for additional stabilization of the bases/plinths to one another, or for interior installation of the bases/plinths

Dimensions

Height: 200 mm

( Height: 7.87 ˝ )

Suitable for

Enclosure type: VX

VX IT

VX SE

TX CableNet

TS

TS IT

TP

PC

IW

CX

Width: = 1,200 mm

( Enclosure type: VX

VX IT

VX SE

TX CableNet

TS

TS IT

TP

PC

IW

CX

Width: = 47.2 ˝ )

Type rating according to UL 50E

Type 1

Type 12

Weight/packaging unit

11.7 kg

( 25.8 lb. )

Packaging unit

2 pc(s).

Net weight

11.56 kg

Gross weight

11.66 kg

PCF/VE (cradle-to-gate)

39 kg CO2 eq (Cat B)

Information regarding the PCF class

Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared

Customs tariff number

94039910

EAN

4028177978171

ETIM 9

EC000721

ETIM 8

EC000721

ECLASS 8.0

27182003

Product description

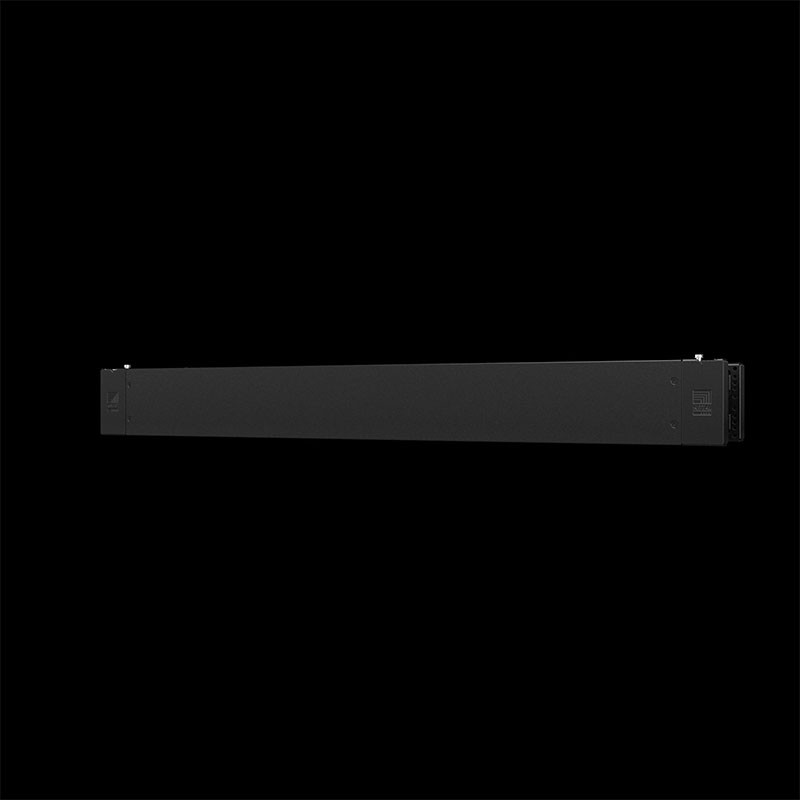

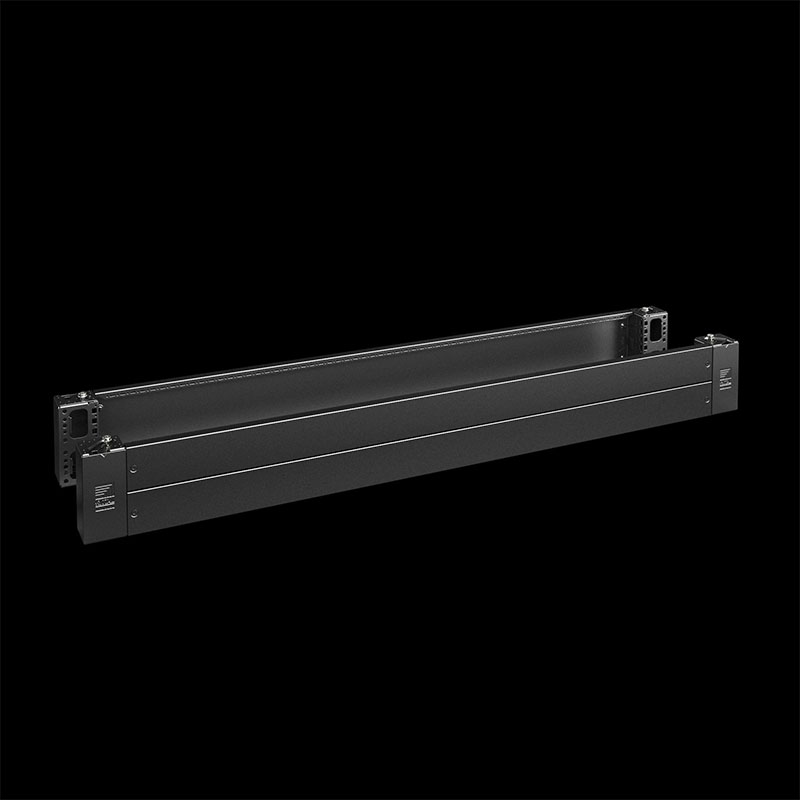

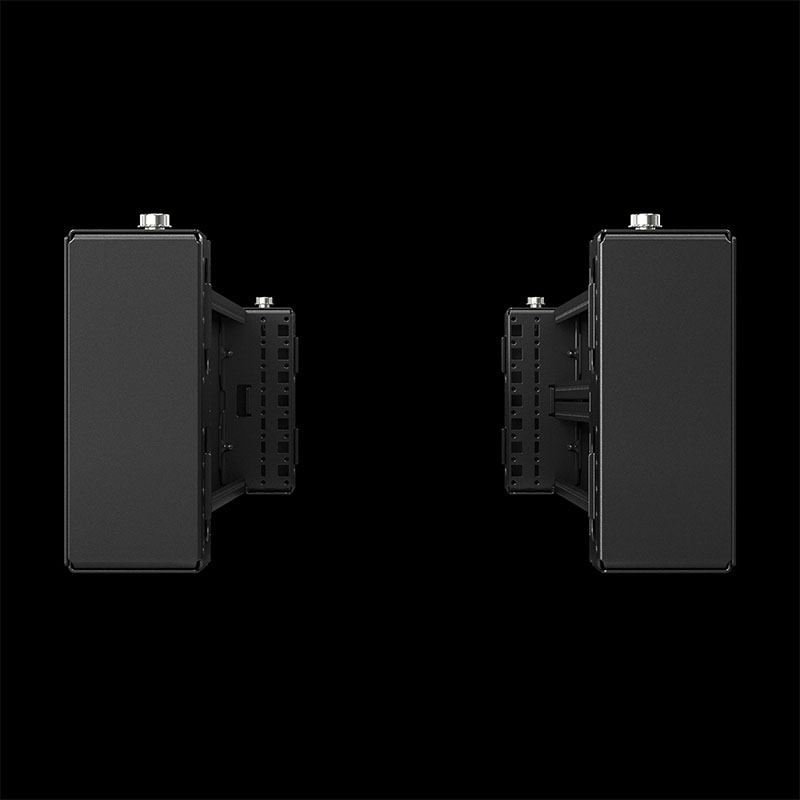

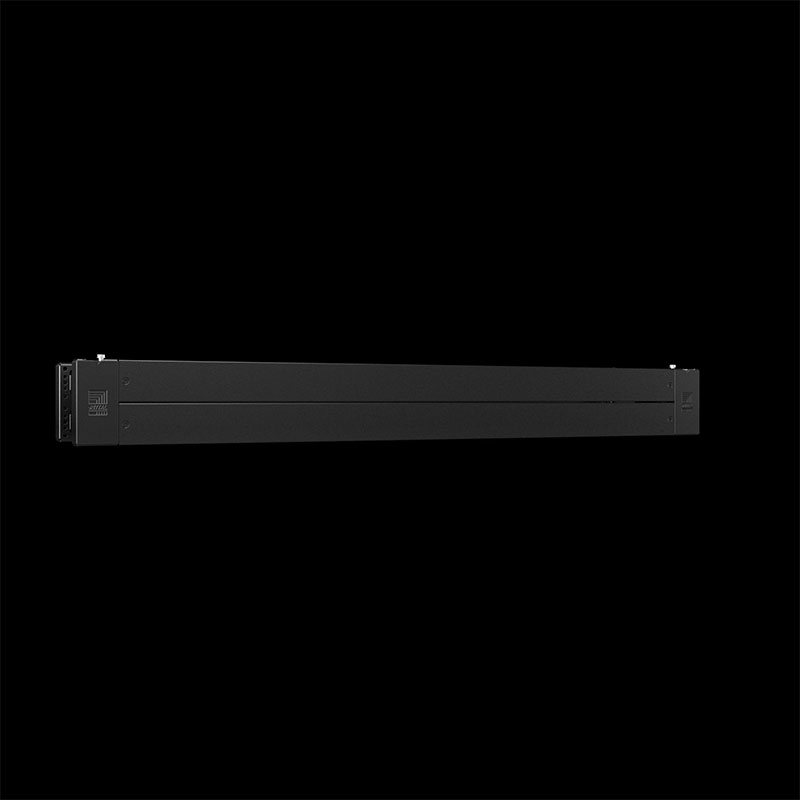

VX base corner piece with base trim panel, front and rear, : 200 mm, for W H: 1200 mm, carbon steel
