Cabinet Accessories

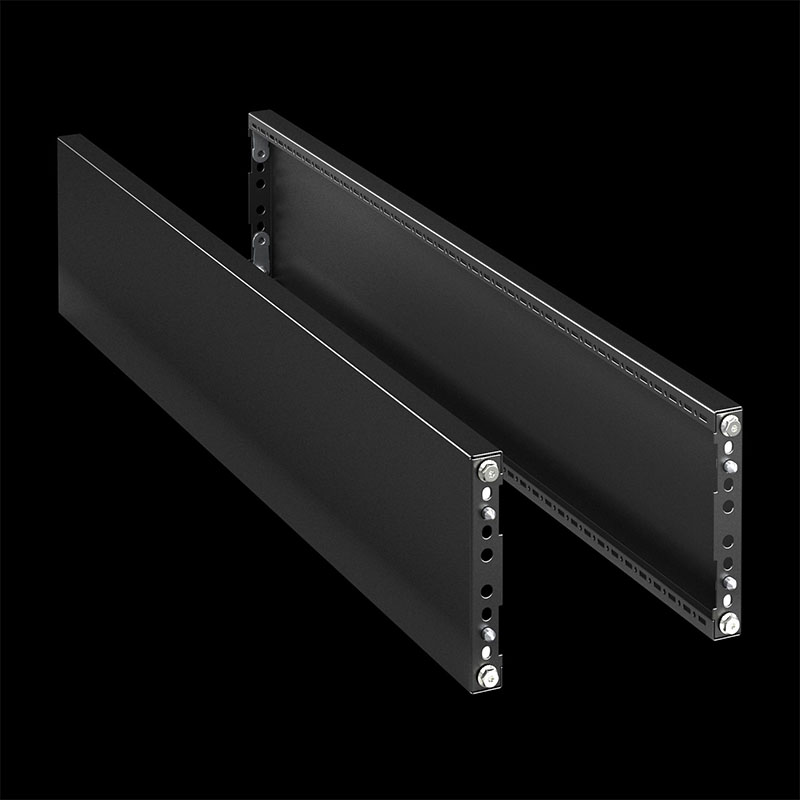

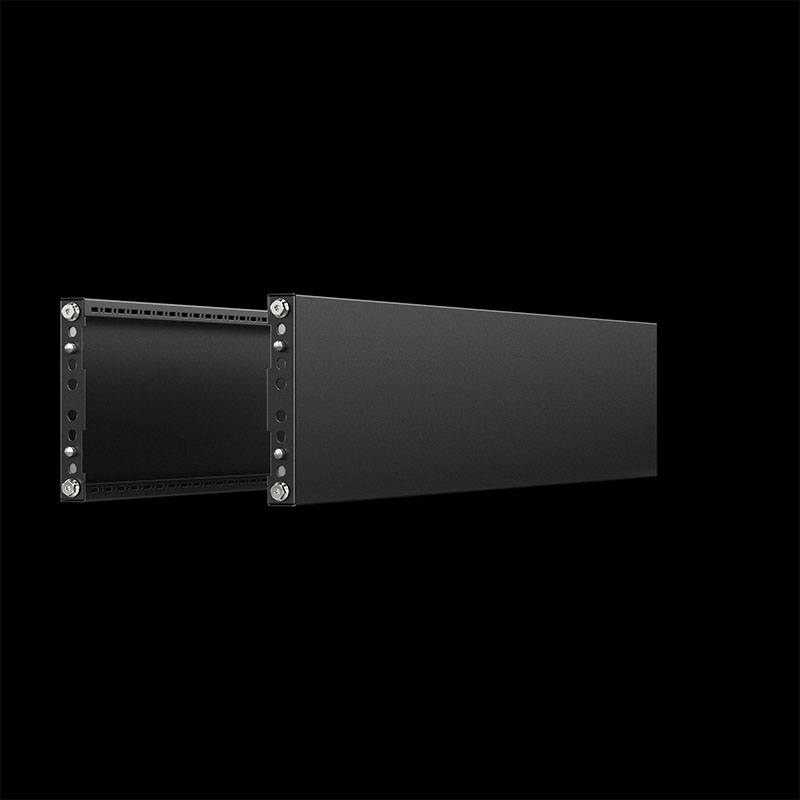

VX 8660030 Base/Plinth Trim Panels, Side for base/plinth system VX, carbon steel
For side blanking of a base/plinth unit and for additional stabilization or the interior installation of baying bases. One 200 mm-high or two 100 mm-high trim panels can optionally be fitted on 200 mm-high base/plinths.
Product description
VX Base/plinth trim panels, H: 100 mm, side, for D: 300 mm, carbon steel
Article no.:
VX 8660030
Version
Closed
Material
Carbon steel
Color
RAL 9005
Supply includes
Assembly components
Dimensions
Height: 100 mm
( Height: 3.94 ˝ )
Suitable for
Enclosure type: VX
VX IT
VX SE
TX CableNet
TS
TS IT
TP
PC
IW
CX
Depth: = 300 mm
( Enclosure type: VX
VX IT
VX SE
TX CableNet
TS
TS IT
TP
PC
IW
CX
Depth: = 11.8 ˝ )
Type rating according to UL 50E
Type 1
Type 12
Weight/packaging unit
0.7 kg
( 1.5 lb. )
Packaging unit
2 pc(s).
Suitable for
for base/plinth system VX, carbon steel
Net weight
0.6 kg
Gross weight
0.7 kg
PCF/VE (cradle-to-gate)
4.13 kg CO2 eq (Cat B)
Information regarding the PCF class
Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
Customs tariff number
94039910
EAN
4028177978201
ETIM 9
EC000721
ETIM 8
EC000721
ECLASS 8.0
27182003
Product description
VX Base/plinth trim panels, H: 100 mm, side, for D: 300 mm, carbon steel
