Article no.:

SK 3105330

Product description

Enclosure heaters to regulate relative humidity, prevent temperatures from dropping below the dew point and stop condensation forming inside the enclosure. This prevents consequential damage associated with corrosion or electrical short circuits.

Material

Aluminum, anodized

Supply includes

PTC heater

Quick-connection terminal

Fasteners

Note

A thermostat is recommended for precise temperature control inside the enclosure

In order to prevent condensation on assemblies, hygrostat is recommended to regulate heating

In larger enclosures, even heat distribution is best achieved by installing several low-output heaters.

Note on Model No.:

Operation at a temperature of -40 °C is possible. Upon request, you will receive a manufacturer's declaration.

Special voltages available on request. We reserve the right to make technical modifications.

Continuous thermal output at 10 °C

23 W ‐ 30 W

( 78 BTU/h ‐ 102 BTU/h )

Rated operating voltage

110 V - 240 V, 1~, 50 Hz/60 Hz

Dimensions

Width: 64 mm

Height: 155 mm

Depth: 56 mm

( Width: 2.52 ˝

Height: 6.1 ˝

Depth: 2.2 ˝ )

Pre-fuse

Miniature circuit-breaker/fuse: 4 A

Protection category IP to IEC 60 529

IP 20

Protection category

II (total insulation)

Operating temperature range

-33 °C...65 °C

( -27 °F...149 °F )

Packaging unit

1 pc(s).

Net weight

0.331 kg

Gross weight

0.395 kg

Customs tariff number

85162999

EAN

4028177638631

ETIM 9

EC000737

ETIM 8

EC000737

ECLASS 8.0

27180710

Product description

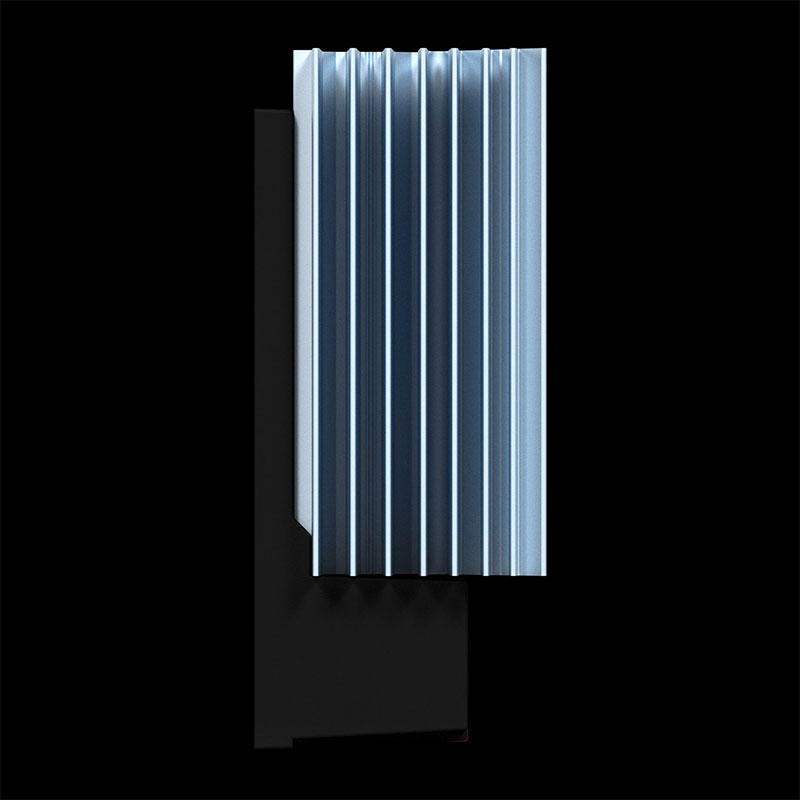

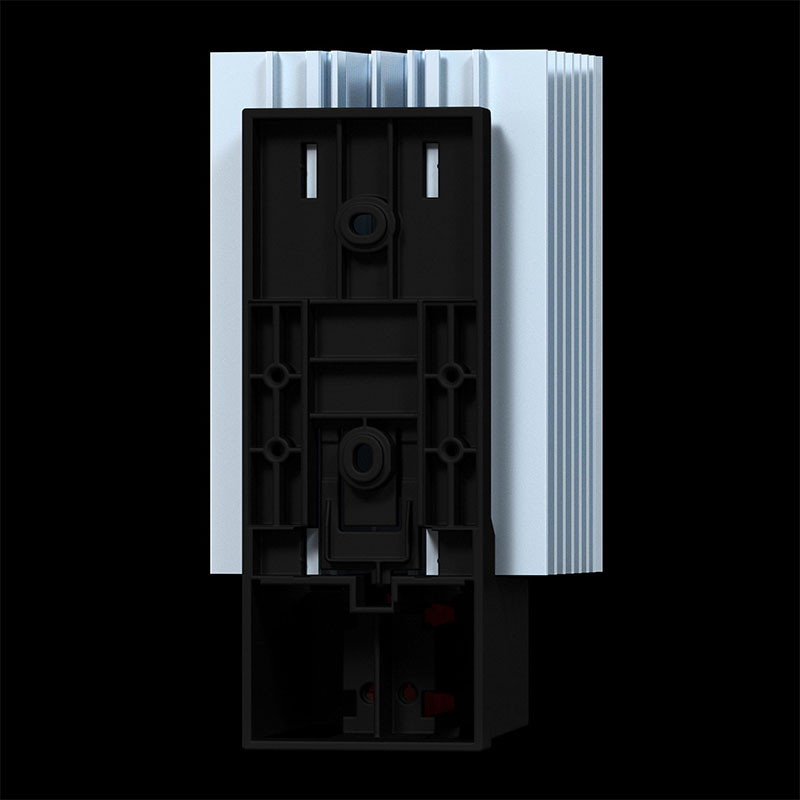

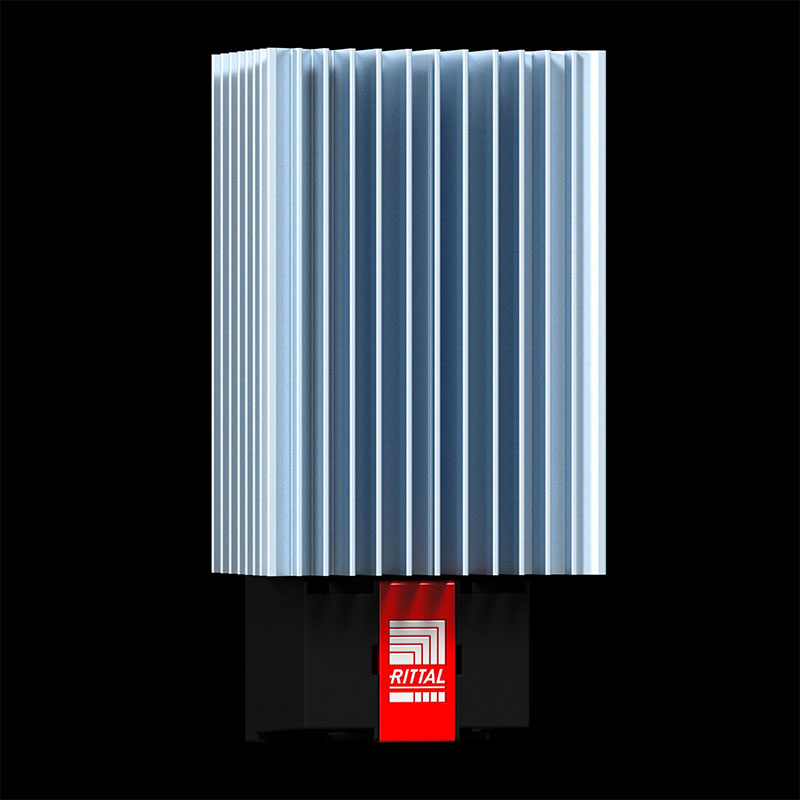

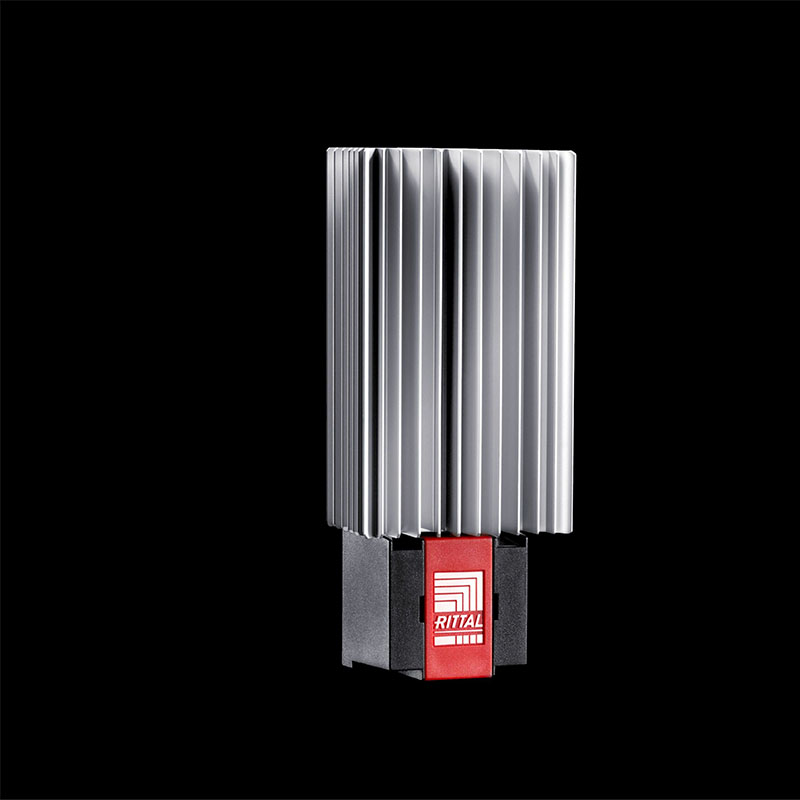

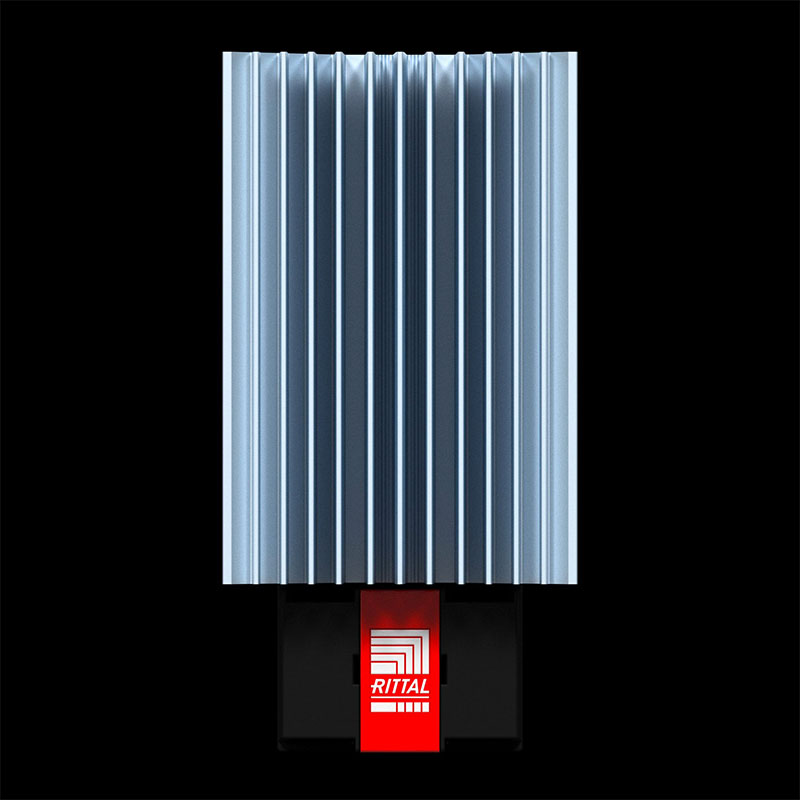

SK enclosure heater, without fan, 23-30 W, 110-240 V, 1~, 50/60 Hz, WHD: 64 x 155 x 56 mm
