Article no.:

SK 3105390

Product description

Enclosure heaters to regulate relative humidity, prevent temperatures from dropping below the dew point and stop condensation forming inside the enclosure. This prevents consequential damage associated with corrosion or electrical short circuits.

Material

Aluminum, anodized

Supply includes

PTC heater with fan

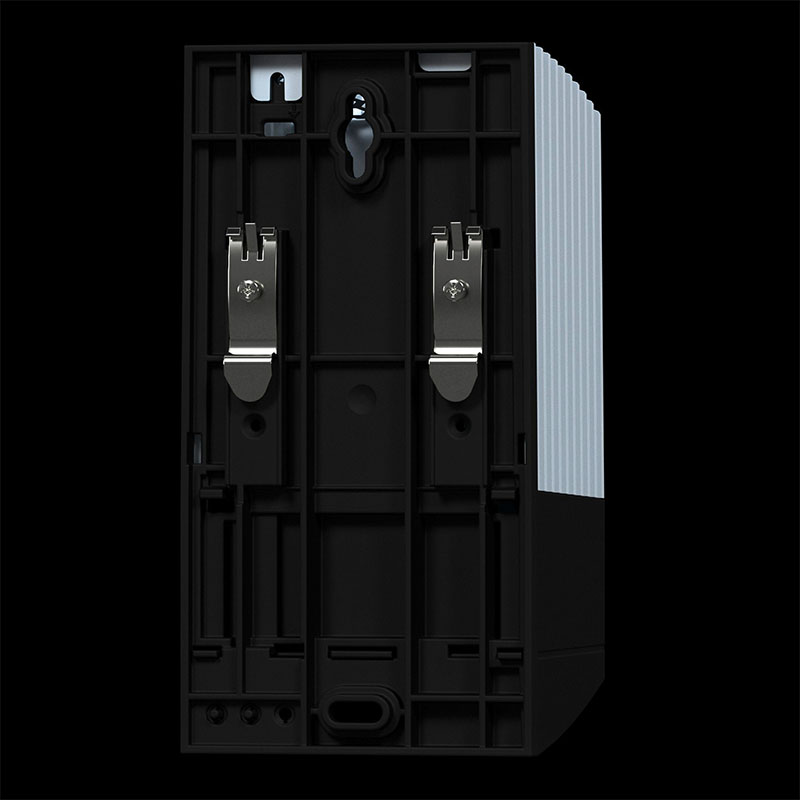

Fasteners

Continuous thermal output

Continuous thermal output with fan

Integrated fan

Yes

Note

A thermostat is recommended for precise temperature control inside the enclosure

In order to prevent condensation on assemblies, hygrostat is recommended to regulate heating

In larger enclosures, even heat distribution is best achieved by installing several low-output heaters.

Note on Model No.:

Operation at a temperature of -40 °C is possible. Upon request, you will receive a manufacturer's declaration.

Continuous thermal output at 10 °C

400 W ‐ 415 W

( 1,365 BTU/h ‐ 1,416 BTU/h )

Rated operating voltage

230 V, 1~, 50 Hz/60 Hz

Dimensions

Width: 103 mm

Height: 200 mm

Depth: 103 mm

( Width: 4.06 ˝

Height: 7.87 ˝

Depth: 4.06 ˝ )

Pre-fuse

Miniature circuit-breaker/fuse: 6 A

Protection category IP to IEC 60 529

IP 20

Protection category

II (total insulation)

Operating temperature range

-33 °C...65 °C

( -27 °F...149 °F )

Packaging unit

1 pc(s).

Net weight

1 kg

Gross weight

1.192 kg

Customs tariff number

85162999

EAN

4028177662872

ETIM 9

EC000737

ETIM 8

EC000737

ECLASS 8.0

27180710

Product description

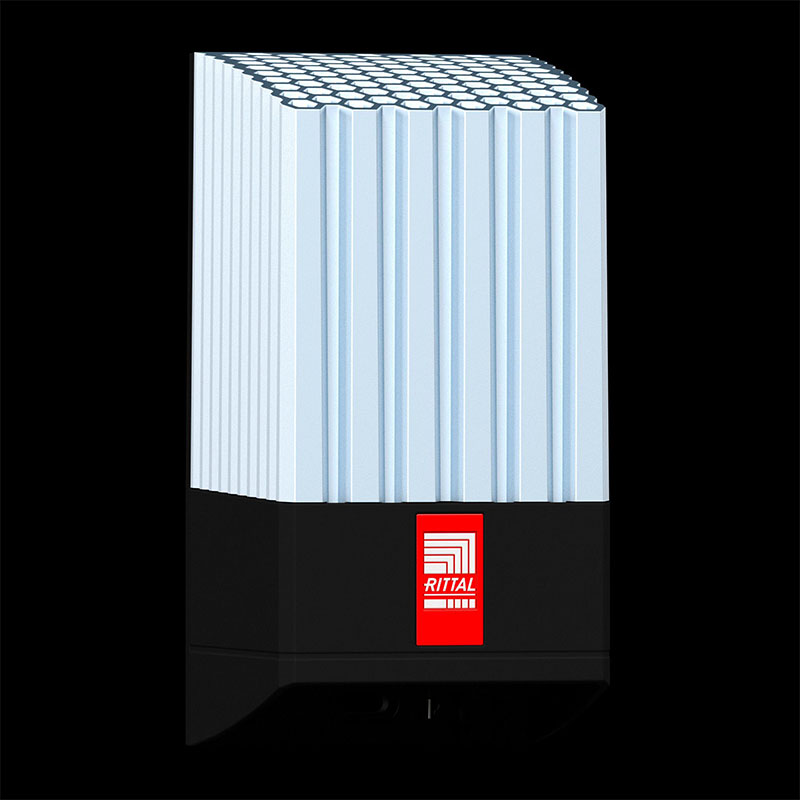

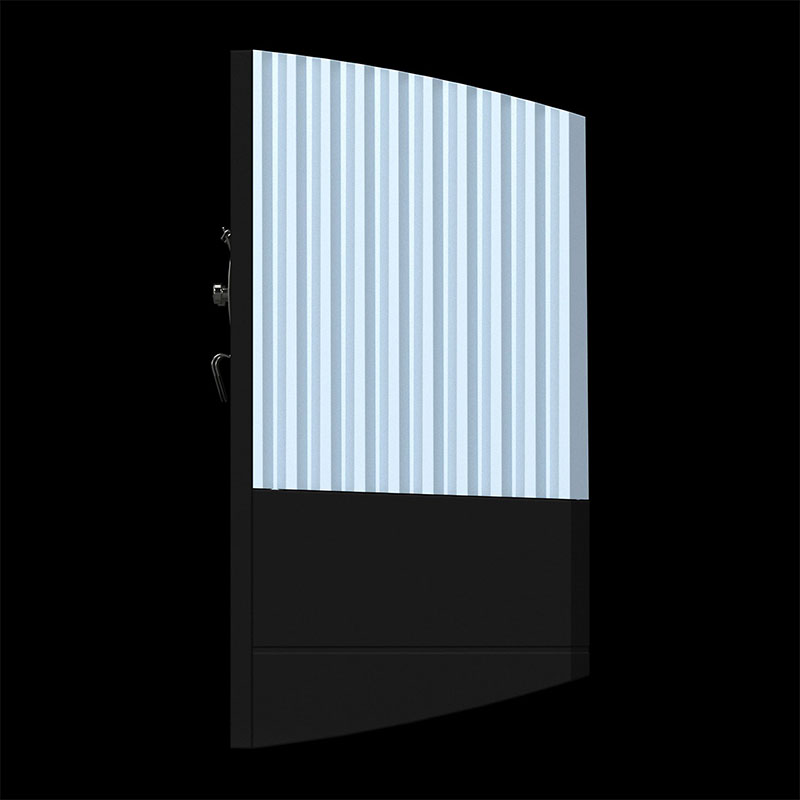

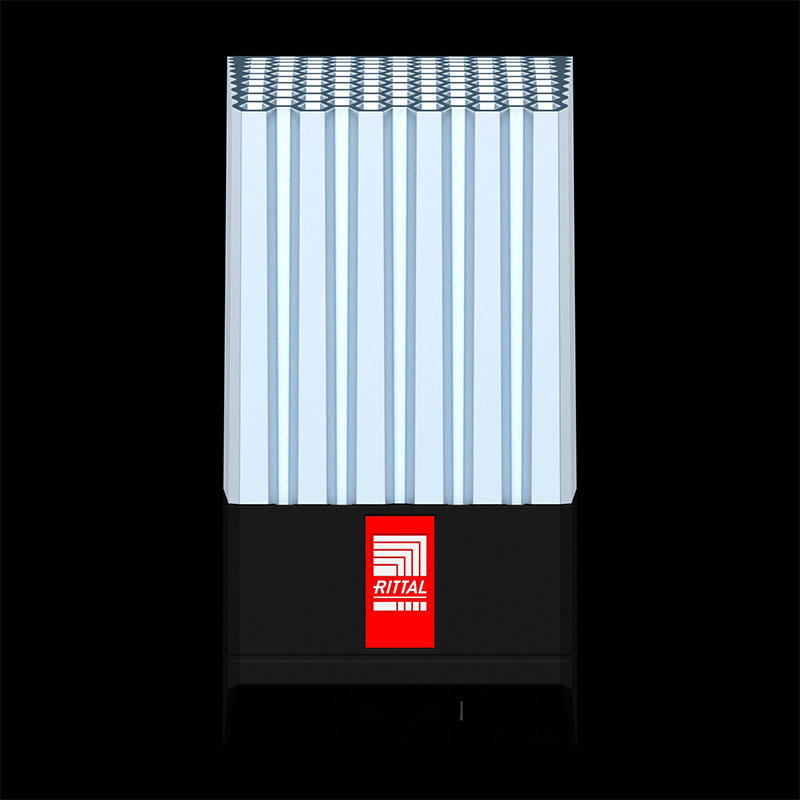

SK enclosure heater, with fan, 400/415 W, 230 V, 1~, 50/60 Hz, WHD: 103 x 200 x 103 mm
