Article no.:

SZ 2500110

Version

without socket

Benefits

Optimum illumination of the entire enclosure

Option of clip-on, screw or magnetic attachment

A configuration to suit every application

Version

without socket

Material

Light body: Extruded aluminum

Light cover: polycarbonate

Light ends: PC-ABS

Color

Enclosure: RAL 7016

Supply includes

Assembly screws

Rated power

7 W

Connection options

Power Supply, 2-pole

Through-wiring, 2-pole

Door-operated switch

Protection category

II (total insulation)

Light – installation type

Screw fastening

Clip fastening

Magnetic fastener (accessories)

Installation options

The internal mounting rail AX and the mounting bracket are required when installing in compact enclosures

Directly onto the enclosure section with 25 mm pitch pattern

Luminous flux

600 lm

Light color

4000 K (neutral white)

Note

Connection accessories should be ordered separately

Dimensions

Width: 337 mm

Height: 55 mm

Depth: 23 mm

( Width: 13.3 ˝

Height: 2.17 ˝

Depth: 0.91 ˝ )

Operating temperature range

-20 °C...55 °C

( -4 °F...131 °F )

Rated operating voltage

100 V - 230 V, 1~, 50 Hz/60 Hz

Protection category IP to IEC 60 529

IP 20

Packaging unit

1 pc(s).

Net weight

0.263 kg

Gross weight

0.351 kg

PCF/VE (cradle-to-gate)

7.4

Customs tariff number

94054990

EAN

4028177806948

ETIM 9

EC000321

ETIM 8

EC000321

ECLASS 8.0

27189241

Product description

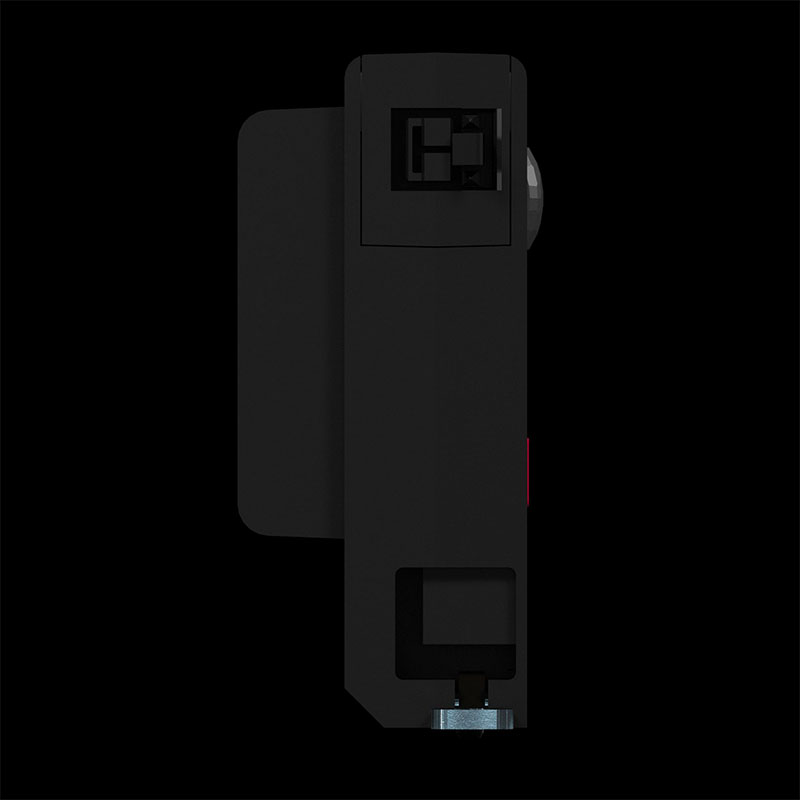

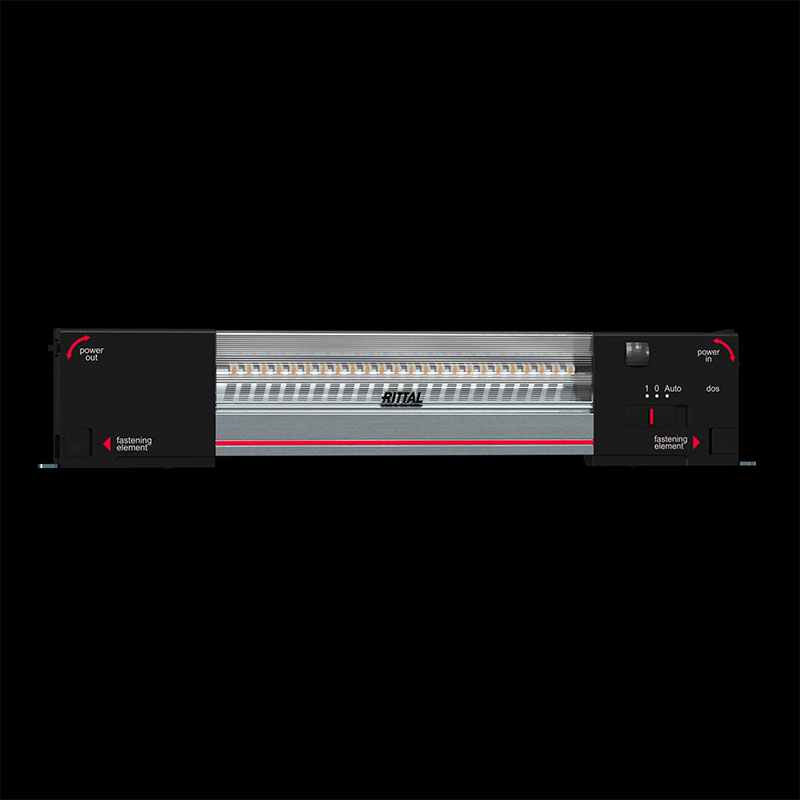

SZ system light LED, 600 Lumen, L: 337 mm, 100-230 V
