Article no.:

SV 3575005

Material

Cu lamina: High-purity electrolyte copper

Insulation: Highly resistant vinyl blend, expansion 370%, temperature: -30°C ... +105°C, fire protection according to UL-94 V0, dielectric strength: 20 kV/mm

Length

2,000 mm

( 78.7 ˝ )

Rated current for temperature increase 50 K

780 A

Rated current for temperature increase 30 K

590 A

Rated current for temperature increase 70 K

930 A

Note

Assembly = number of layers x layer width x layer thickness

May be cut to length as required

The conductor temperature of the laminated copper bar is derived by adding the ambient temperature and the temperature increase together. Example: 3565.005 carrying 180 A, i.e. the temperature increases by 30 K. At an ambient temperature of 35 °C, this produces a resultant conductor temperature of 35 °C + 30 K = 65 °C.

Laminated flat copper version

Number of lamina: 5

Lamina width: 40 mm

Lamina thickness: 1 mm

( Lamina width: 1.57 ˝

Lamina thickness: 0.04 ˝ )

Packaging unit

1 pc(s).

Net weight

4.666 kg

Gross weight

4.866 kg

Copper weight (kg per piece)

3.58

Customs tariff number

85446010

EAN

4028177666818

ETIM 9

EC001522

ETIM 8

EC001522

ECLASS 8.0

27370303

Product description

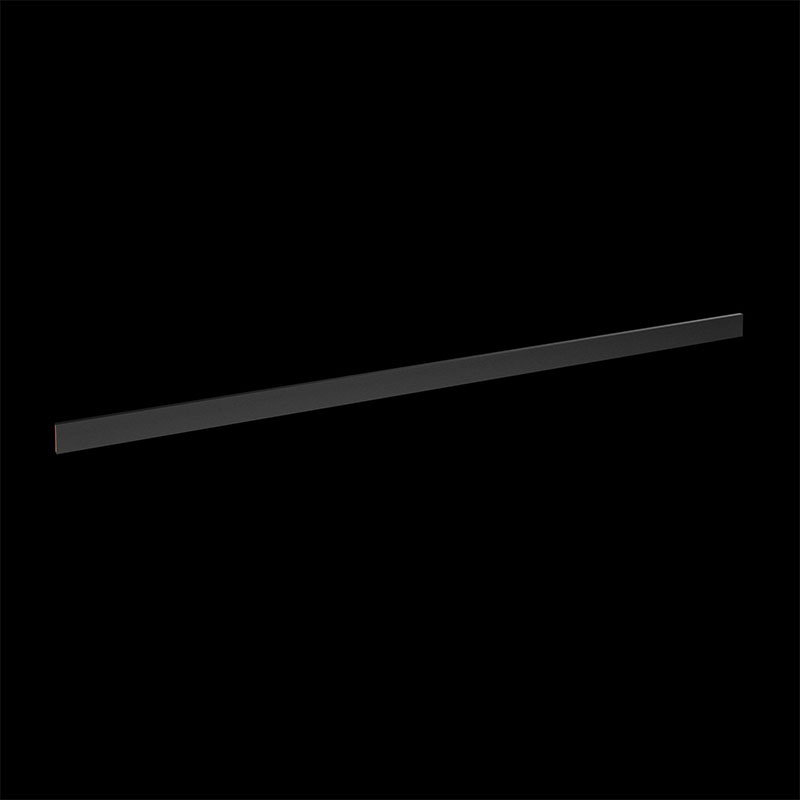

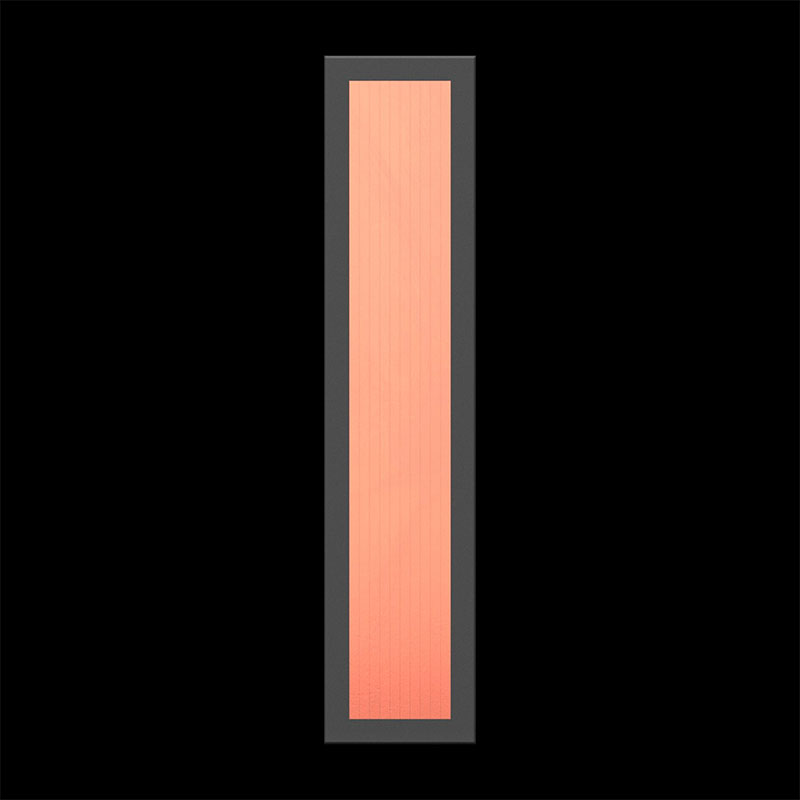

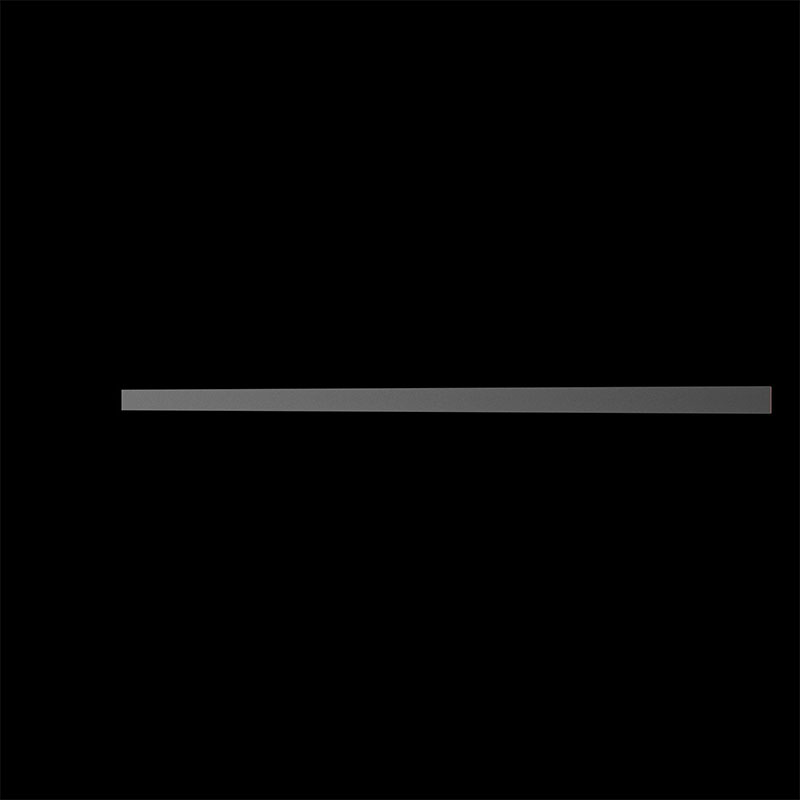

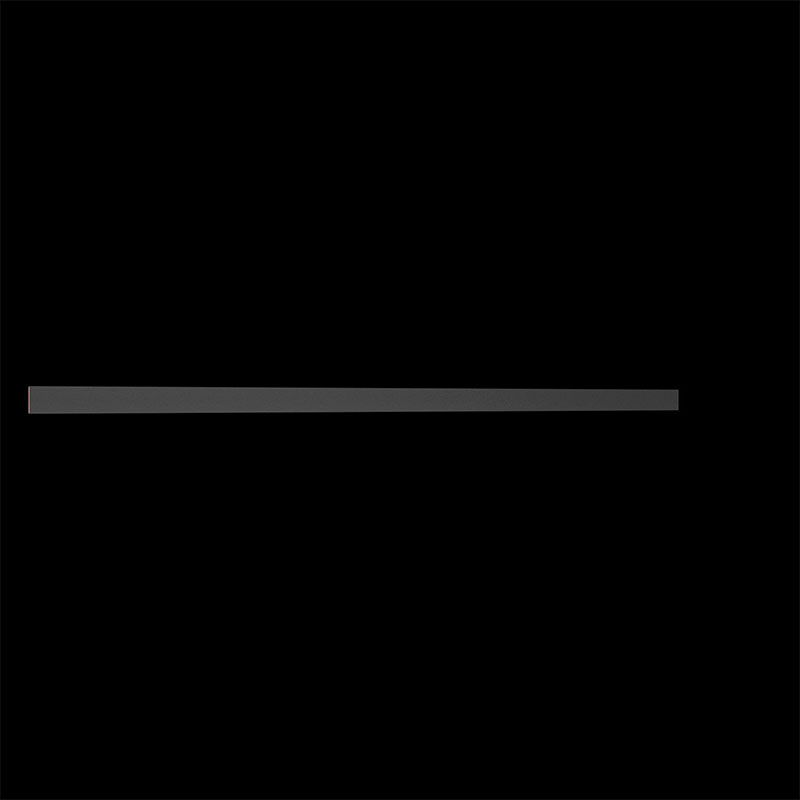

SV Laminated copper bar, WH: 40x5 mm, L: 2000 mm
