Article no.:

SV 3581000

Material

E-Cu

Note

May be cut to length as required

Standards

DIN EN 13 601

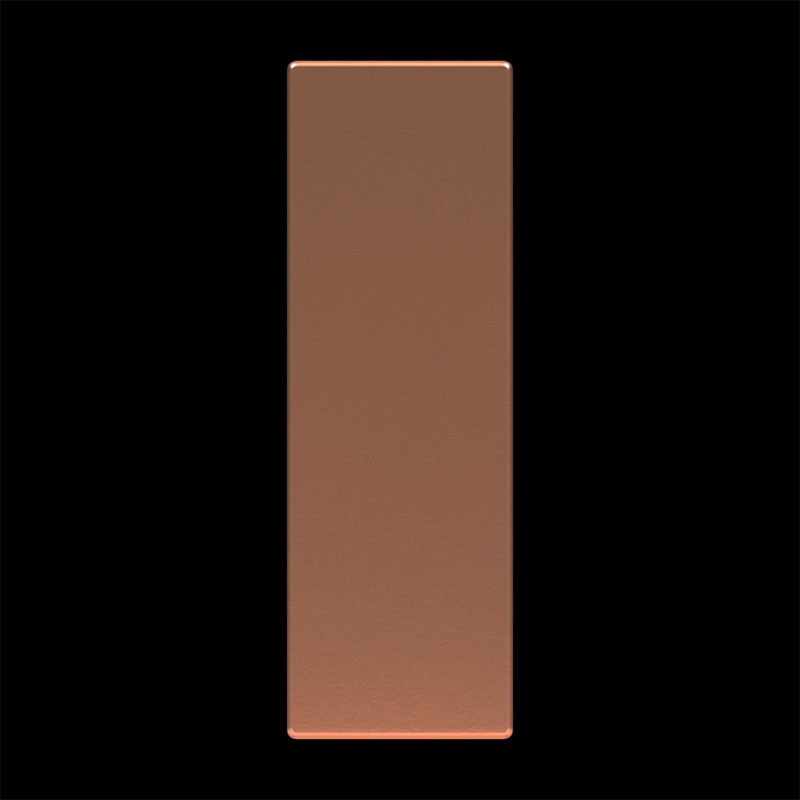

Cross-section

15 mm x 5 mm

( 0.59 ˝ x 0.2 ˝ )

Dimensions

Length: 2,400 mm

( Length: 94.5 ˝ )

Packaging unit

6 pc(s).

Net weight

9.48 kg

Gross weight

9.6 kg

Copper weight (kg per piece)

1.61

Customs tariff number

74071000

EAN

4028177044760

ETIM 9

EC001522

ETIM 8

EC001522

ECLASS 8.0

27370303

Product description

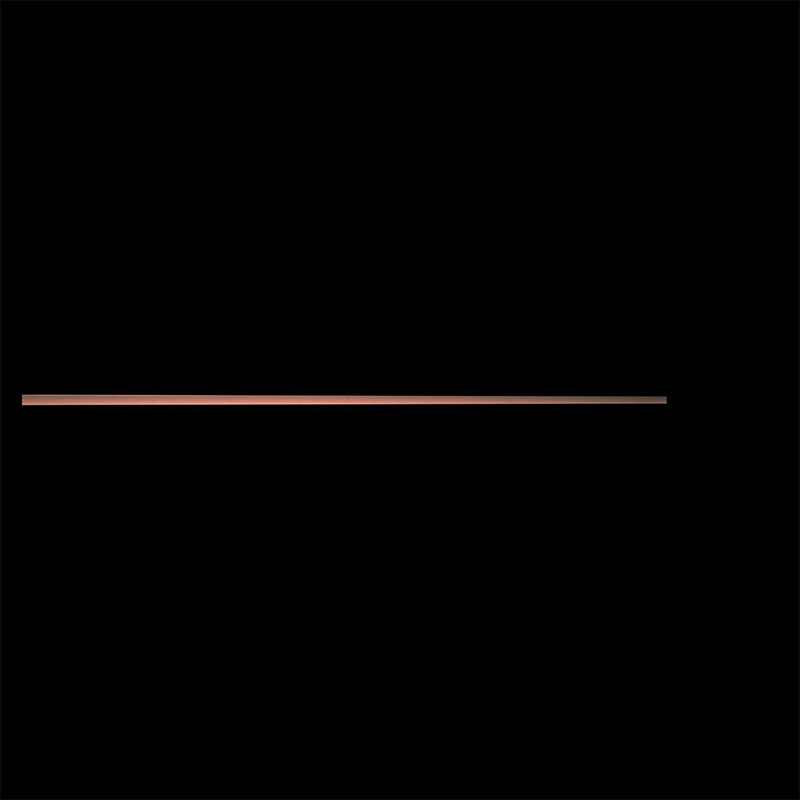

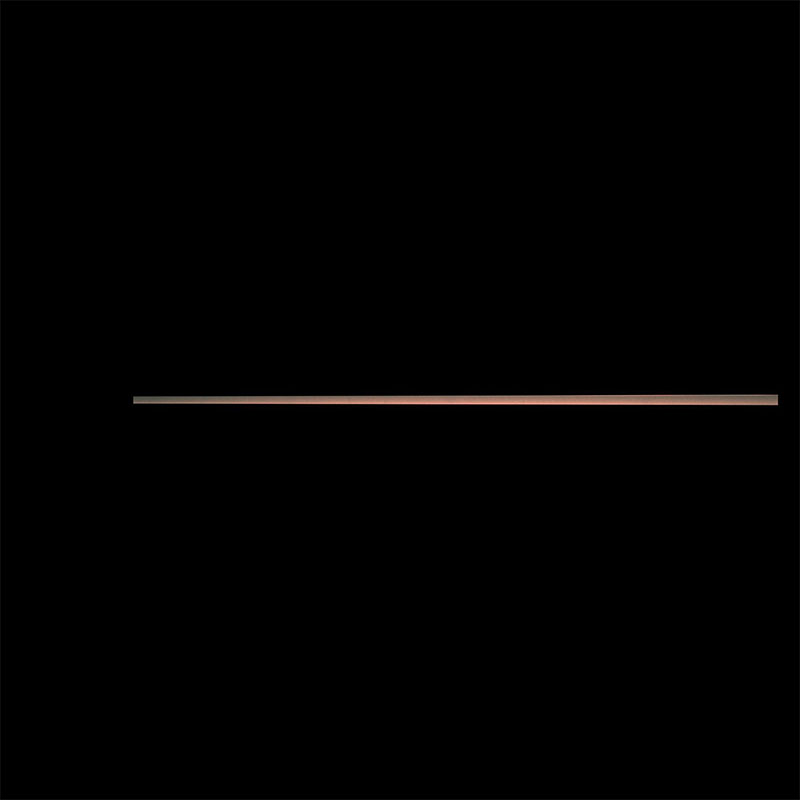

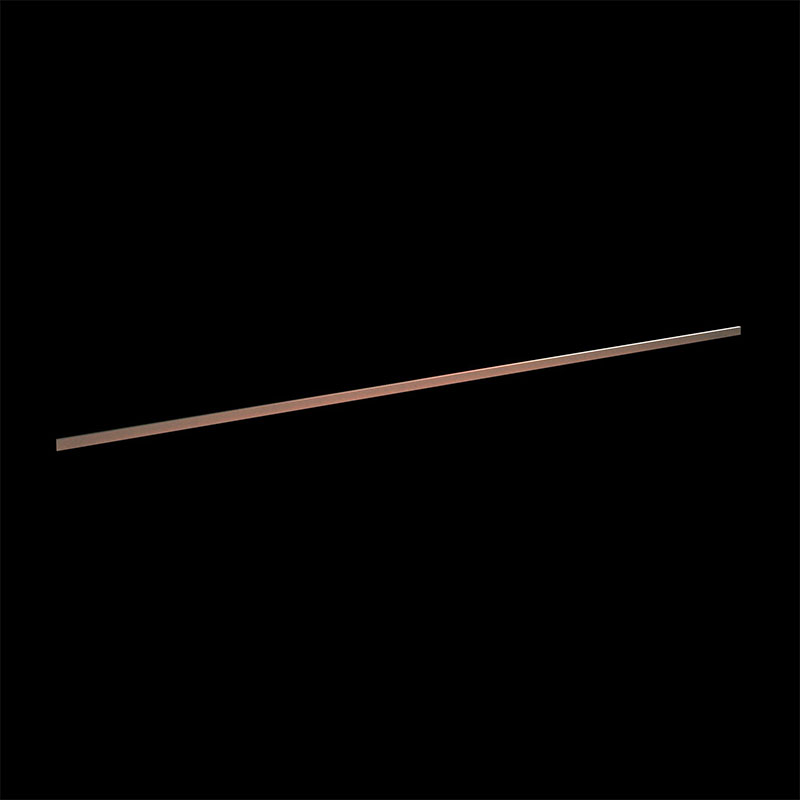

SV Busbar E-Cu, WH: 15x5 mm, L: 2400 mm
