Article no.:

SV 3586020

Product description

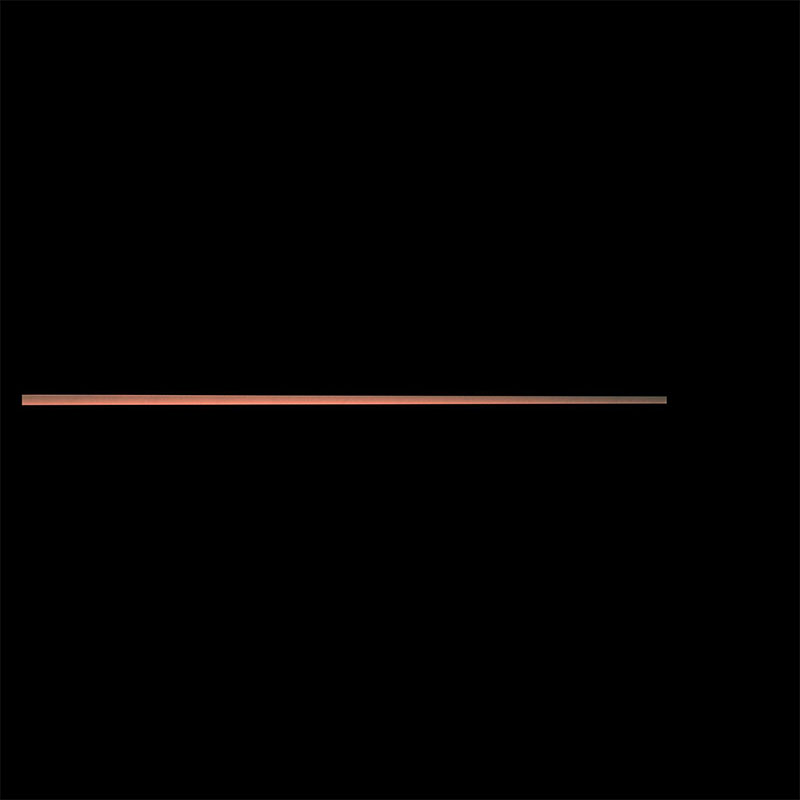

Copper-coated aluminum busbars, suitable for configuring busbar systems with busbar supports SV 9340.000/SV 9340.050.

Material

Aluminum

Copper

Rated current max.

493 A

Note

The rated current is generated at 65°C rail temperature and 35°C ambient temperature

Correction factor diagram according to DIN EN 43 671

May be cut to length as required

Standards

DIN EN 13 601

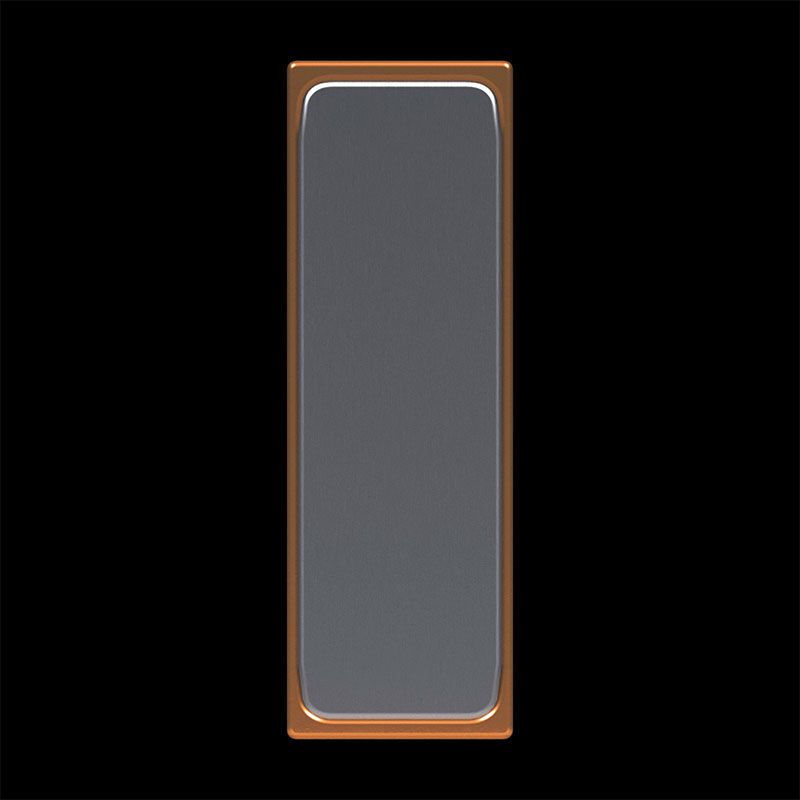

Cross-section

30 mm x 10 mm

( 1.18 ˝ x 0.39 ˝ )

Dimensions

Length: 2,400 mm

( Length: 94.5 ˝ )

Packaging unit

3 pc(s).

Net weight

7.5 kg

Gross weight

9.2 kg

Copper weight (kg per piece)

1.05

Customs tariff number

76042990

EAN

4028177686588

ETIM 9

EC001522

ETIM 8

EC001522

ECLASS 8.0

27370303

Product description

SV Busbar CUPONAL, WH: 30x10 mm, L: 2400 mm
