Power distribution

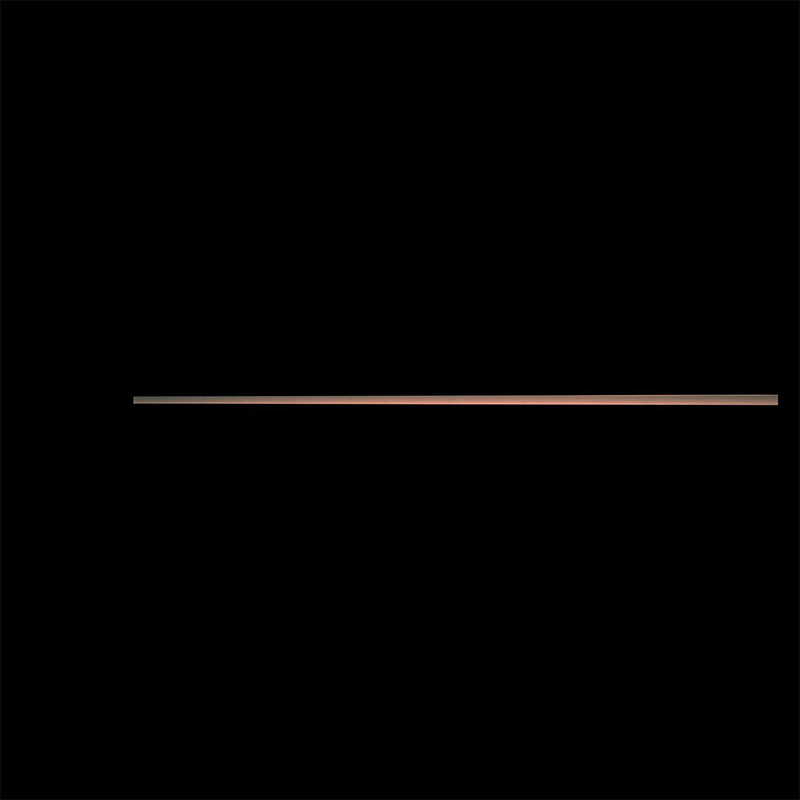

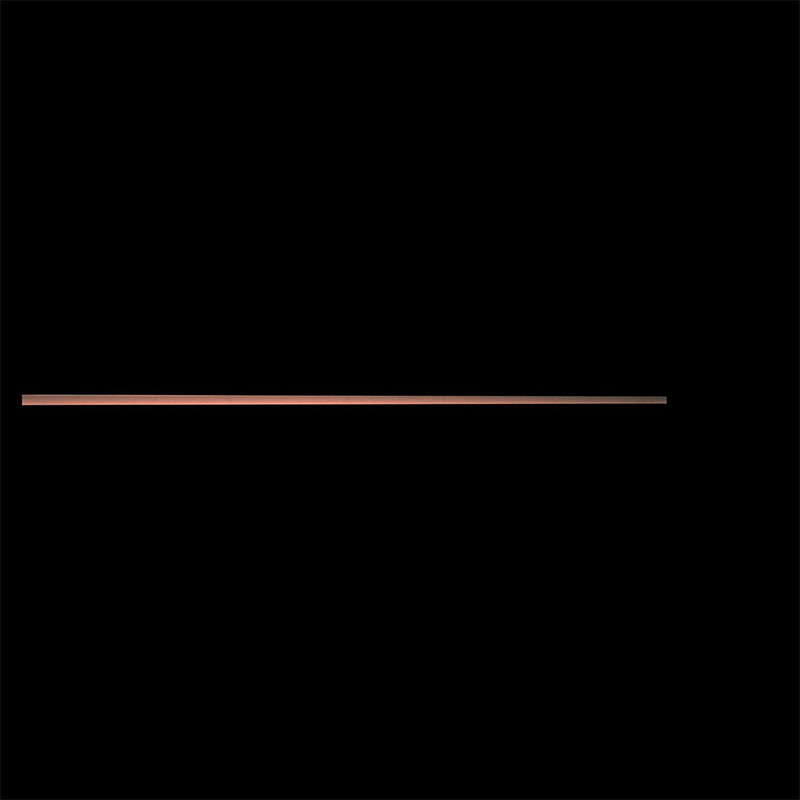

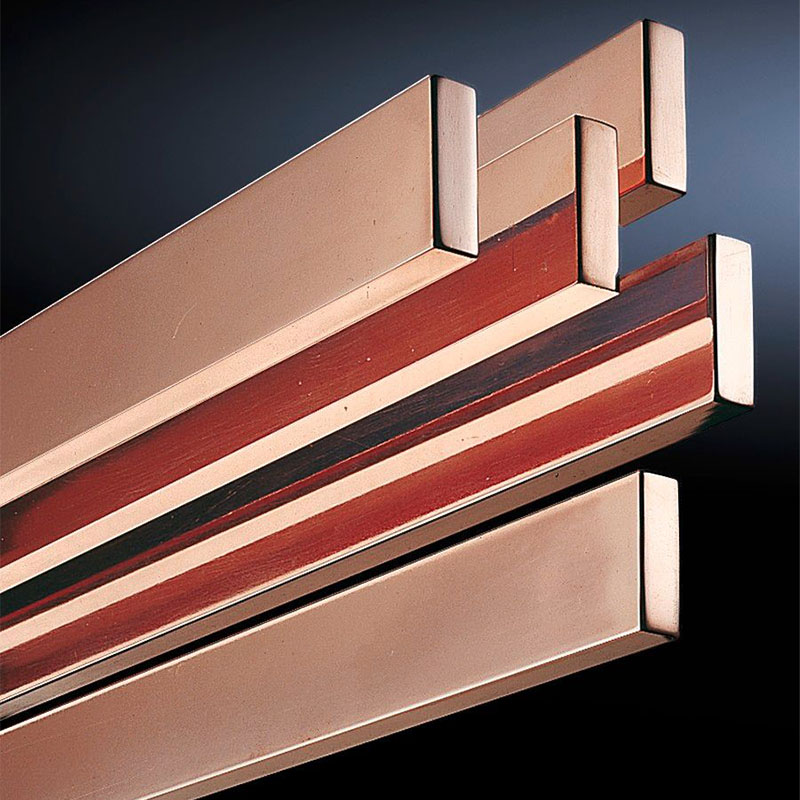

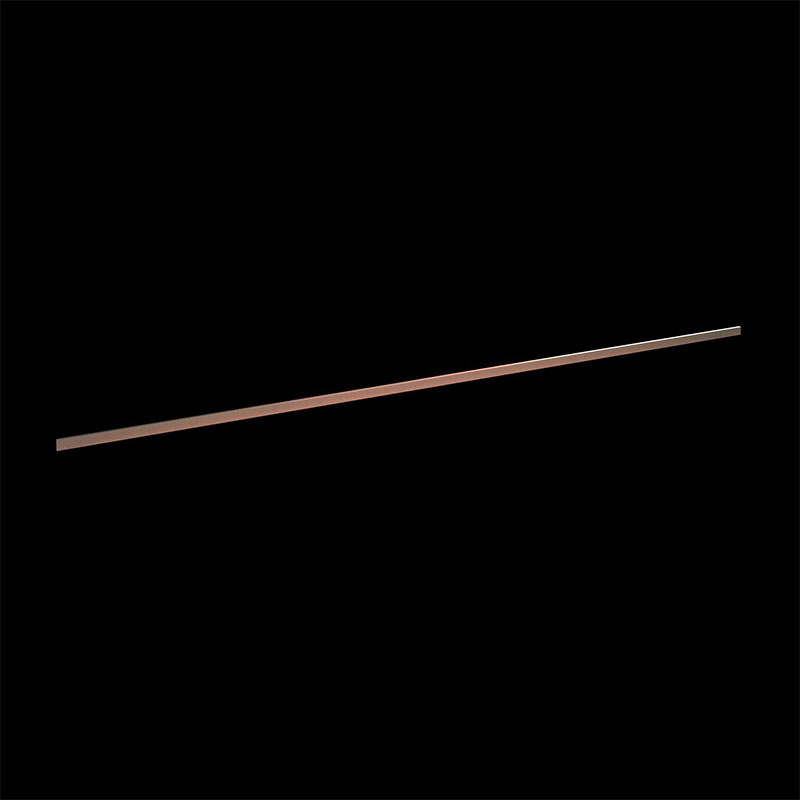

SV 3589005 E-Cu Busbars
Length: 2400 mm (94.5")/bar.
Product description
SV Busbar E-Cu, WH: 60x10 mm, L: 2400 mm
Product Introduction
Article no.:
SV 3589005
Material
E-Cu
Note
May be cut to length as required
Standards
DIN EN 13 601

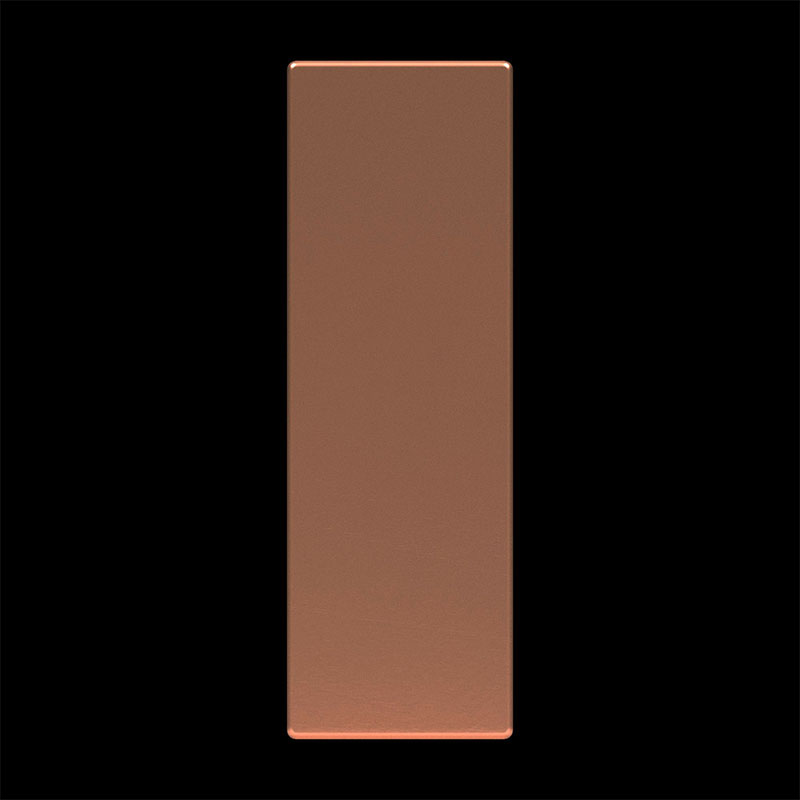

Cross-section
60 mm x 10 mm
( 2.36 ˝ x 0.39 ˝ )
Dimensions
Length: 2,400 mm
( Length: 94.5 ˝ )
Packaging unit
2 pc(s).
Net weight
25.8 kg
Gross weight
25.88 kg
Copper weight (kg per piece)
12.9
Customs tariff number
74071000
EAN
4028177684607
ETIM 9
EC001522
ETIM 8
EC001522
ECLASS 8.0
27370303
Product description
SV Busbar E-Cu, WH: 60x10 mm, L: 2400 mm
