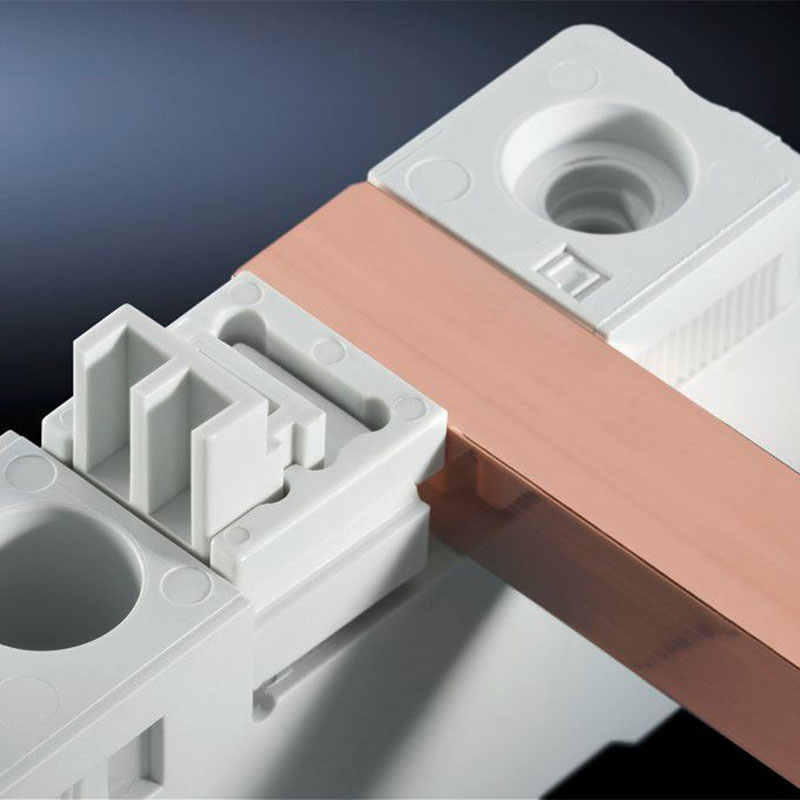

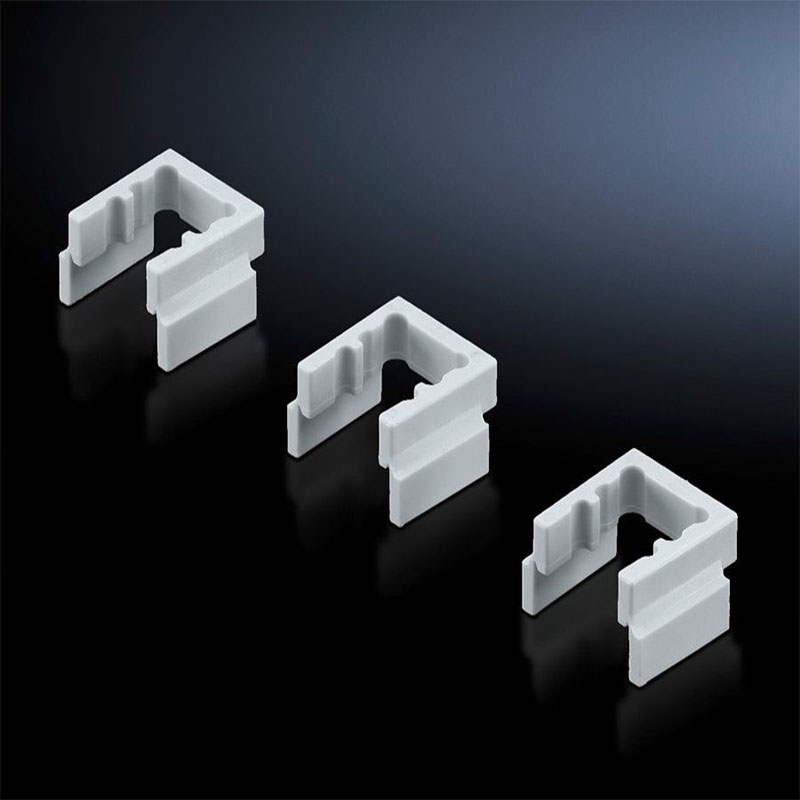

SV 9340090 Spacer for RiLine busbar supports (flat bar system)
For busbar supports of flat copper bars. For adapting 12 x 5 and 12 x 10 mm size busbars.
Product description
SV Spacer, for busbar support, SV 934000/004/010/030, for busbar WH: 12x5/12x10 mm
Article no.:
SV 9340090
Product description
For adapting 12 x 5 and 12 x 10 mm size busbars.
Material
Polyamide
Fire protection corresponding to UL 94-V0
Color
RAL 7035
Suitable for Model No.
9340.000
9340.004
9340.010
9340.030
Packaging unit
12 pc(s).
Net weight
0.024 kg
Gross weight
0.021 kg
Customs tariff number
73269098
EAN
4028177551916
ETIM 9
EC000713
ECLASS 8.0
27400613
Product description
SV Spacer, for busbar support, SV 934000/004/010/030, for busbar WH: 12x5/12x10 mm
