Power distribution

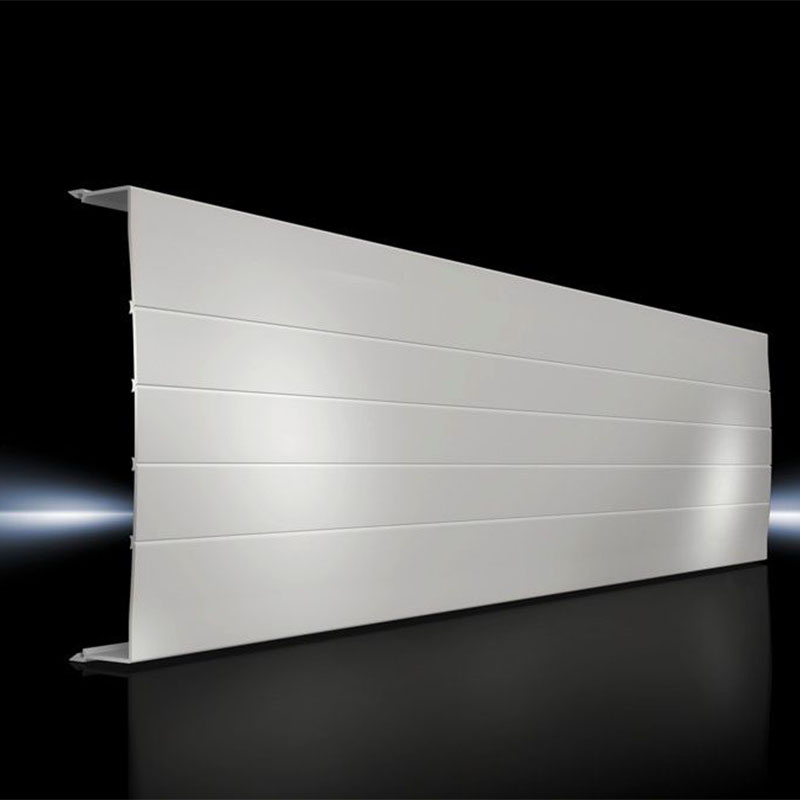

SV 9340214 Cover section for RiLine busbar systems
May be cut to desired width, for clip-on mounting to the base tray section.
Product description
SV Cover section, L: 1100 mm, (4-pole)
Article no.:
SV 9340214
Product description
For clip-on mounting to the base tray.
Material
Thermally modified hard PVC.
Fire protection corresponding to UL 94-V0
Color
RAL 7035
Note
When loading the cover section from the front, the support panel is required for stabilization
May be cut to length as required
Number of poles
4-pole
Suitable for busbar system
Flat copper bars, 4-pole
PLS 1600, 4-pole
Dimensions
Length: 1,100 mm
( Length: 43.3 ˝ )
Packaging unit
2 pc(s).
Net weight
3.56 kg
Gross weight
3.7 kg
Customs tariff number
85472000
EAN
4028177536746
ETIM 9
EC000775
ECLASS 8.0
27142414
Product description
SV Cover section, L: 1100 mm, (4-pole)
