Article no.:

SV 9340390

Version

With connection cable

Material

Polyamide

Fire protection corresponding to UL 94-V0

Color

Chassis: RAL 7035

Connection cables (AWG)

AWG 10

Rated current max.

32 A

Rated operating voltage

690 V, 3~

Note

The technical data may vary for UL applications.

Electrical UL ratings (SCCR)

30 kA - 600 V, fuse class K5 max. 60 A, JDDZ/7

50 kA - 600 V, fuse class K5 max. 35 A, JDDZ/7

65 kA - 600 V, fuse class J max. 30 A, JDDZ/7

65 kA - 600 V, fuse class K5 max. 30 A, JDDZ/7

50 kA - 480 V, Combination Motor Controller max. 27 A, NKJH/7

65 kA - 480 V, Combination Motor Controller max. 32 A, NKJH/7

For bar systems with center-to-center spacing

60 mm

Length of connection cable

130 mm

( 5.12 ˝ )

Support rail type

Support frame, 1 x TS 45D, 1 x TS 45D-V

Number of poles

3-pole

Support frame support

Yes

Dimensions

Width: 45 mm

Height: 272 mm

( Width: 1.77 ˝

Height: 10.7 ˝ )

Support rails Qty/height

2 / 10 mm

( 0.39 ˝ )

Suitable for busbars

Height: 5, 10 mm

( Height: 0.2, 0.39 ˝ )

Support frame (W x H)

45 mm x 237 mm

( 1.77 ˝ x 9.33 ˝ )

Approvals

UL

Packaging unit

1 pc(s).

Net weight

0.3 kg

Gross weight

0.309 kg

Copper weight (kg per piece)

0.074

Customs tariff number

85369095

EAN

4028177664227

ETIM 9

EC001531

ECLASS 8.0

27370304

Product description

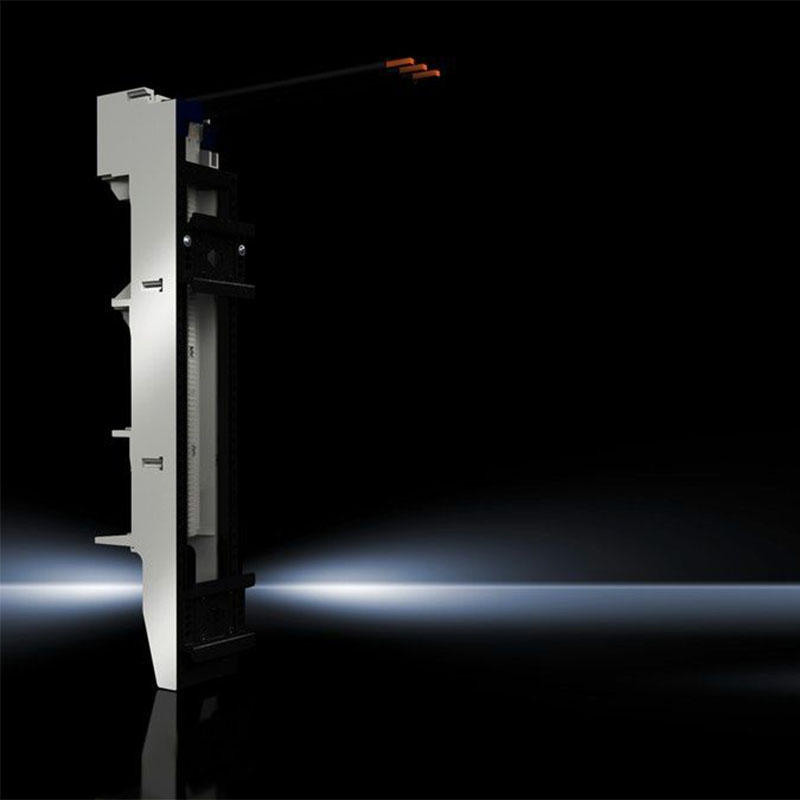

SV OM adaptor, 32 A, 690 V, 3-pole, connection cable AWG 10, WH: 45x272 mm, support frame, support rail TS 45D, TS 45D-V
