Article no.:

SV 9340520

Version

with tension spring clamp

Material

Polyamide

Fire protection corresponding to UL 94-V0

Color

Chassis: RAL 7035

Rated current max.

32 A

Rated operating voltage

690 V, 3~

For bar systems with center-to-center spacing

60 mm

Support rail type

Without support frame, 2 x TS 45D

Number of poles

3-pole

Dimensions

Width: 45 mm

Height: 208 mm

( Width: 1.77 ˝

Height: 8.19 ˝ )

Connection of round conductors

1.5 ‐ 6 mm²

Support rails Qty/height

2 / 10 mm

( 0.39 ˝ )

Suitable for busbars

Height: 5, 10 mm

( Height: 0.2, 0.39 ˝ )

Packaging unit

1 pc(s).

Net weight

0.238 kg

Gross weight

0.266 kg

Copper weight (kg per piece)

0.027

Customs tariff number

85369095

EAN

4028177630710

ETIM 9

EC001531

ECLASS 8.0

27370304

Product description

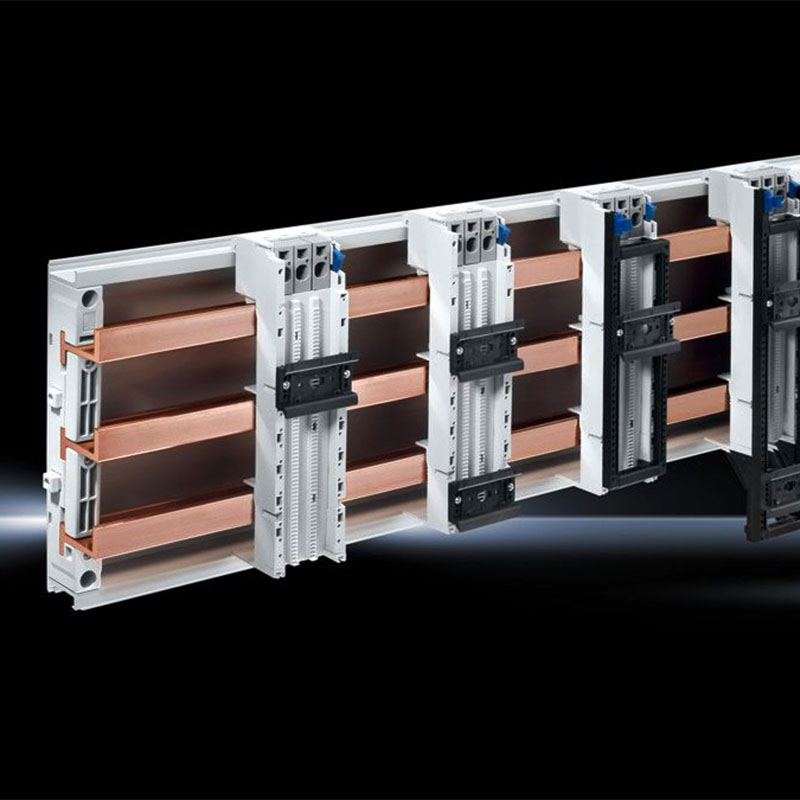

SV OM adaptor, 32 A, 690 V, 3-pole, tension spring clamp 1,5-6 mm², WH: 45x208 mm, support rail 2xTS 45D
