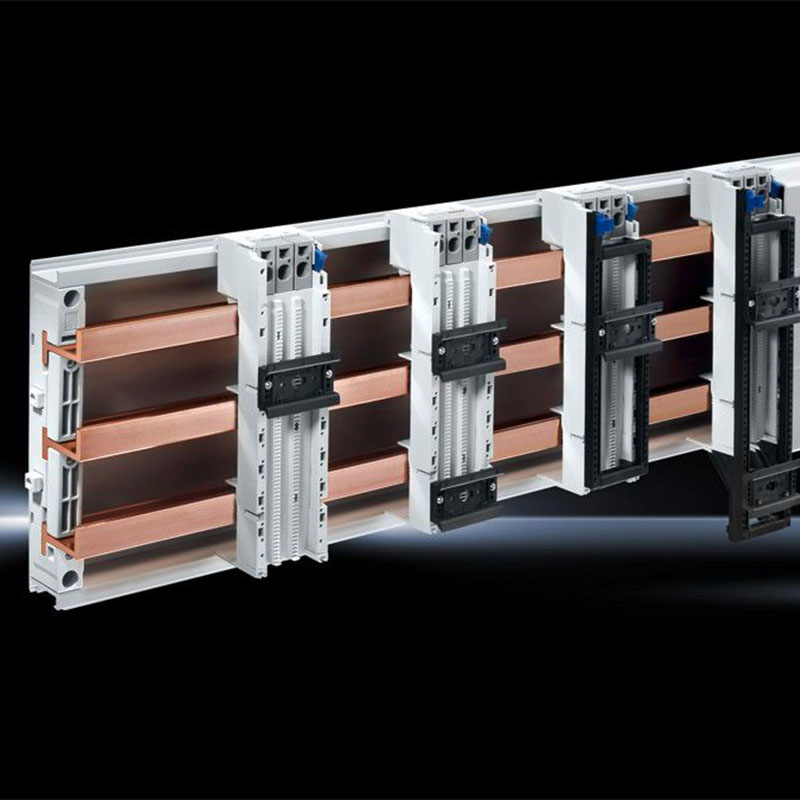

Article no.:

SV 9340560

Version

with tension spring clamp

Material

Polyamide

Fire protection corresponding to UL 94-V0

Color

Chassis: RAL 7035

Rated current max.

32 A

Rated operating voltage

690 V, 3~

For bar systems with center-to-center spacing

60 mm

Support rail type

Support frame, 1 x TS 45D, 1 x TS 45D-V

Number of poles

3-pole

Support frame support

Yes

Dimensions

Width: 45 mm

Height: 272 mm

( Width: 1.77 ˝

Height: 10.7 ˝ )

Connection of round conductors

1.5 ‐ 6 mm²

Support rails Qty/height

2 / 10 mm

( 0.39 ˝ )

Suitable for busbars

Height: 5, 10 mm

( Height: 0.2, 0.39 ˝ )

Support frame (W x H)

45 mm x 237 mm

( 1.77 ˝ x 9.33 ˝ )

Packaging unit

1 pc(s).

Net weight

0.28 kg

Gross weight

0.293 kg

Copper weight (kg per piece)

0.027

Customs tariff number

85369095

EAN

4028177664234

ETIM 9

EC001531

ECLASS 8.0

27370304

Product description

SV OM adaptor, 32 A, 690 V, 3-pole, tension spring clamp 1,5-6 mm², WH: 45x272 mm, support frame, support rail TS 45D, TS 45D-V
