Article no.:

SV 9340650

Version

with tension spring clamp

Material

Polyamide

Fire protection corresponding to UL 94-V0

Color

Chassis: RAL 7035

Rated current max.

65 A

Rated operating voltage

690 V, 3~

For bar systems with center-to-center spacing

60 mm

Support rail type

Support frame, 1 x TS 55E, 1 x TS 55D-V

Number of poles

3-pole

Support frame support

Yes

Note on Model No.:

According to a heat dissipation test to IEC 61 439-1, a current carrying capacity of up to 80 A is supported

Dimensions

Width: 55 mm

Height: 272 mm

( Width: 2.17 ˝

Height: 10.7 ˝ )

Connection of round conductors

2.5 ‐ 16 mm²

Support rails Qty/height

2 / 10 mm

( 0.39 ˝ )

Suitable for busbars

Height: 5, 10 mm

( Height: 0.2, 0.39 ˝ )

Support frame (W x H)

55 mm x 237 mm

( 2.17 ˝ x 9.33 ˝ )

Packaging unit

1 pc(s).

Net weight

0.339 kg

Gross weight

0.377 kg

Copper weight (kg per piece)

0.059

Customs tariff number

85369095

EAN

4028177502673

ETIM 9

EC001531

ECLASS 8.0

27370304

Product description

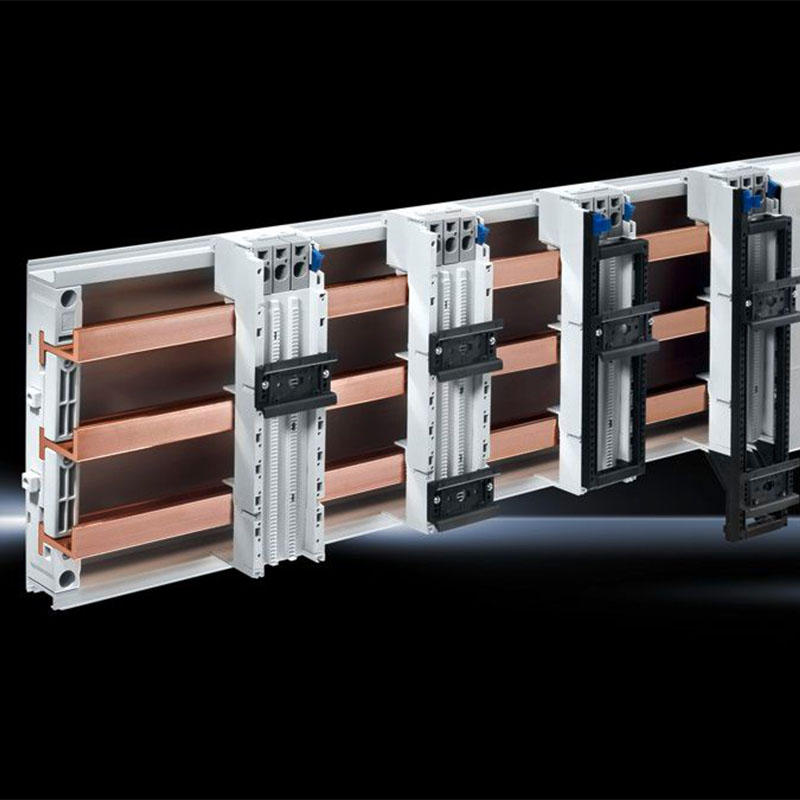

SV OM adaptor, 65 A, 690 V, 3-pole, tension spring clamp 2,5-16 mm², WH: 55x272 mm, support frame, support rail TS 55E, TS 55D-V
