Article no.:

SV 9340710

Version

With connection cable

Material

Polyamide

Fire protection corresponding to UL 94-V0

Color

Chassis: RAL 7035

Connection cables (AWG)

AWG 8

Rated current max.

40 A

Rated operating voltage

690 V, 3~

Note

The technical data may vary for UL applications.

Electrical UL ratings (SCCR)

30 kA - 600 V, fuse class K5 max. 60 A, JDDZ/7

30 kA - 480 V, Combination Motor Controller max. 63 A, NKJH/7

65 kA - 600 V, fuse class J max. 60 A, JDDZ/7

65 kA - 480 V, manual motor controller max. 63 A, NLRV/7

65 kA - 480 V, Combination Motor Controller max. 63 A, NKJH/7

For bar systems with center-to-center spacing

60 mm

Length of connection cable

130 mm

( 5.12 ˝ )

Support rail type

Without support frame, 2 x 7.5 x 35 mm

Number of poles

3-pole

Dimensions

Width: 75 mm

Height: 208 mm

( Width: 2.95 ˝

Height: 8.19 ˝ )

Support rails Qty/height

2 / 7.5 mm

( 0.3 ˝ )

Suitable for busbars

Height: 5, 10 mm

( Height: 0.2, 0.39 ˝ )

Approvals

UL

Packaging unit

1 pc(s).

Net weight

0.379 kg

Gross weight

0.396 kg

Copper weight (kg per piece)

0.088

Customs tariff number

85369095

EAN

4028177531116

ETIM 9

EC001531

ECLASS 8.0

27370304

Product description

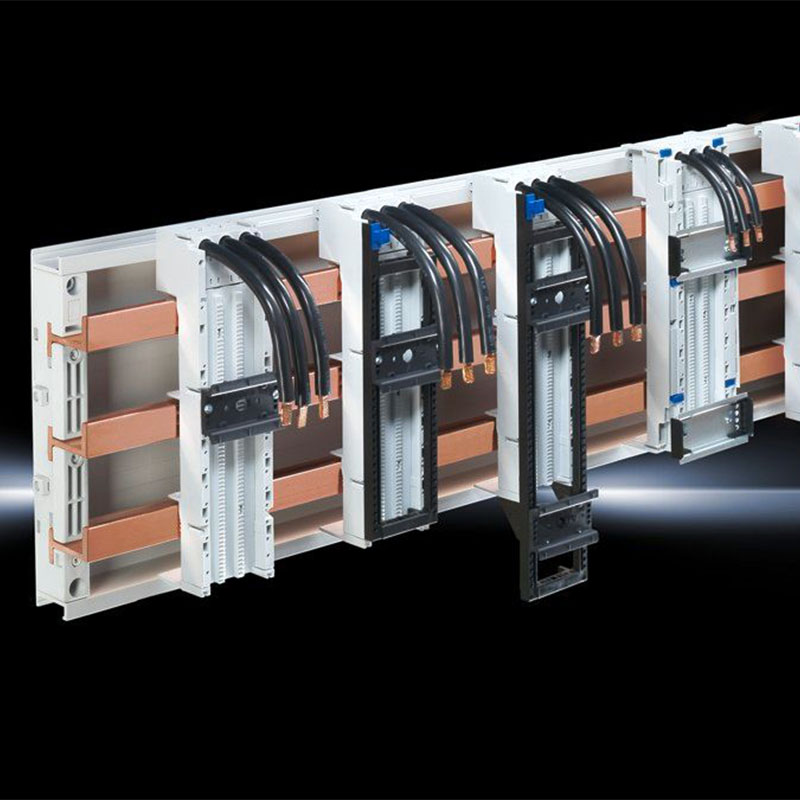

SV OM adaptor, 40 A, 690 V, 3-pole, connection cable AWG 8, WH: 75x208 mm, 2 insert strips, 2 metal support rails
