Power distribution

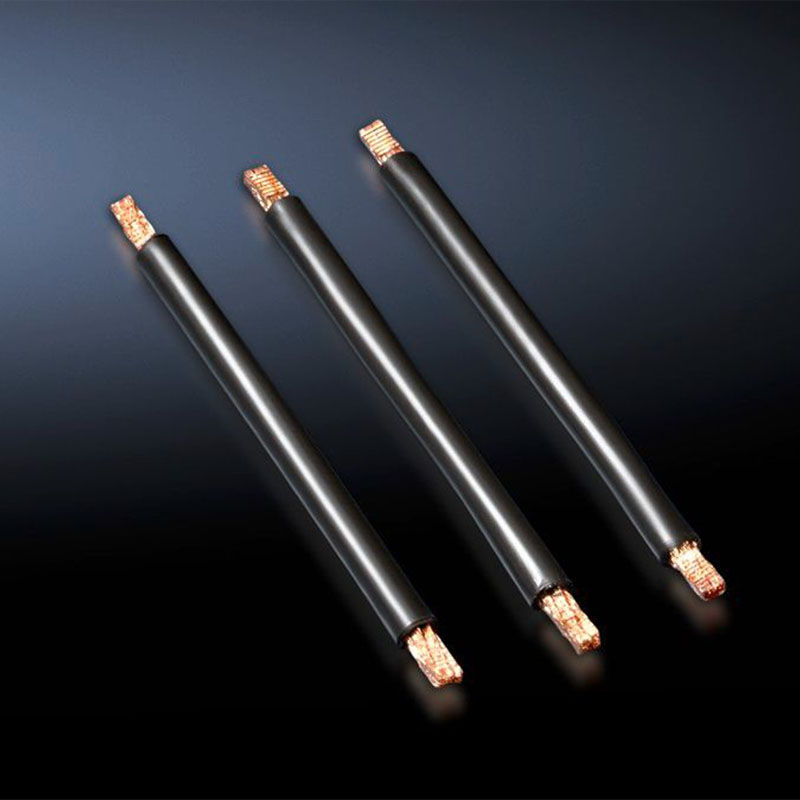

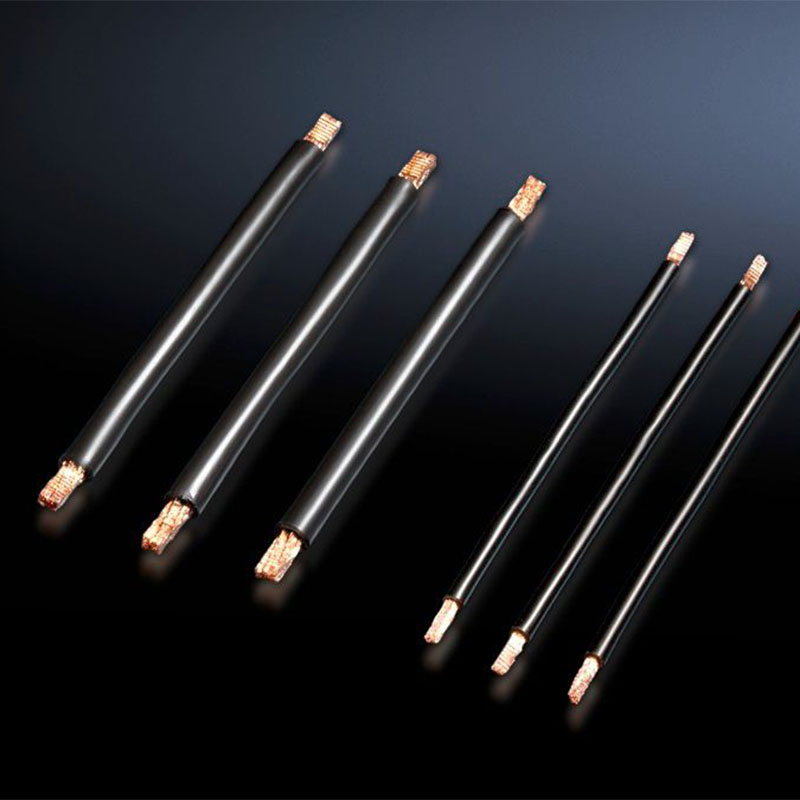

SV 9340890 Cable set for OM adapter with spring-cage terminal
Pre-assembled connection cables for the individual connection of switchgear.
Product description
SV Cable set, AWG 6, L: 140 mm
Article no.:
SV 9340890
Product description
Pre-assembled connection cables for individual connection of switchgear, top-mounted on OM adaptors with tension spring clamps.
Material
PVC insulation
Temperature resistant to 105 °C
Wire ends with ultrasonic wire-end compression at both ends
Note
AWG = American Wire Gage
AWG
AWG|6 = 13.3|mm² ≙ 16|mm²
Dimensions
Length: 140 mm
( Length: 5.51 ˝ )
Packaging unit
6 pc(s).
Net weight
0.12 kg
Gross weight
0.128 kg
Copper weight (kg per piece)
0.014
Customs tariff number
85444290
EAN
4028177502741
ETIM 9
EC000839
ECLASS 8.0
27062302
Product description
SV Cable set, AWG 6, L: 140 mm
