Article no.:

SV 9342004

Material

Polyamide

Fire protection corresponding to UL 94-V0

Color

RAL 7035

Rated operating voltage

1000 V, 3~

Note on Model No.:

The use of a base tray is required for UL applications.

UL approval only applies in conjunction with AC application

Electrical UL ratings (SCCR)

65 kA - 480 V, support spacing 250 mm, busbars PLS 1600, circuit breaker max. 1200A, DIVQ/7

Busbar support design

PLS 1600 PLUS

Number of poles

4-pole

Suitable for busbars

PLS 1600

Suitable for Model No.

3516.000

3527.000

3528.010

3529.000

With internal attachment

Yes

Center-to-center spacing of busbars

60 mm

Approvals

UL

Packaging unit

4 pc(s).

Net weight

2.2 kg

Gross weight

2.321 kg

Customs tariff number

85469010

EAN

4028177536760

ETIM 9

EC001166

ECLASS 8.0

27400607

Product description

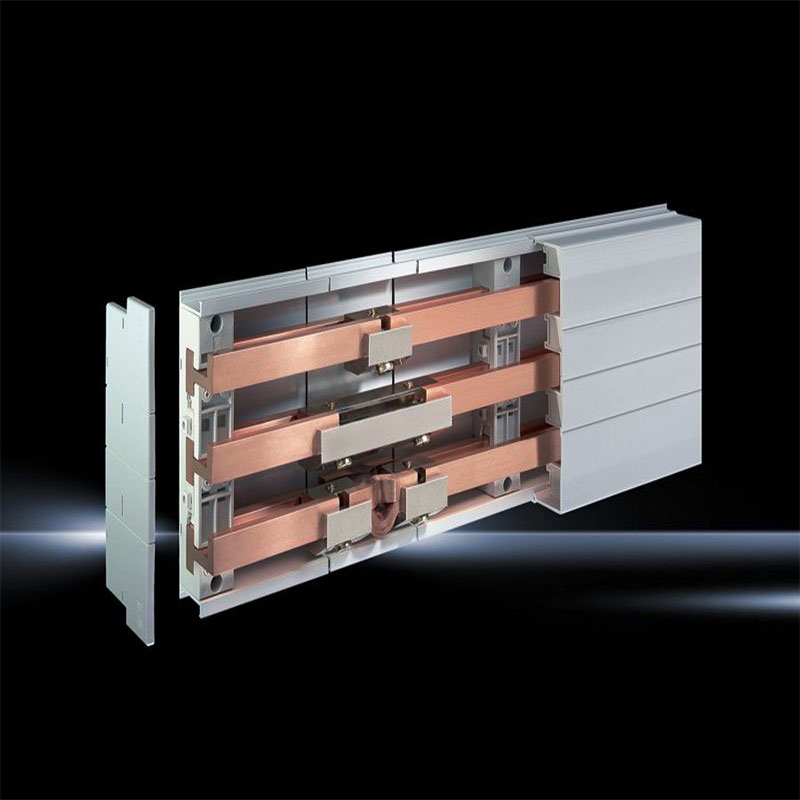

SV Busbar support, PLS 1600, 4-pole, 60 mm bar centre distance, UL design
