Article no.:

SV 9342570

Product description

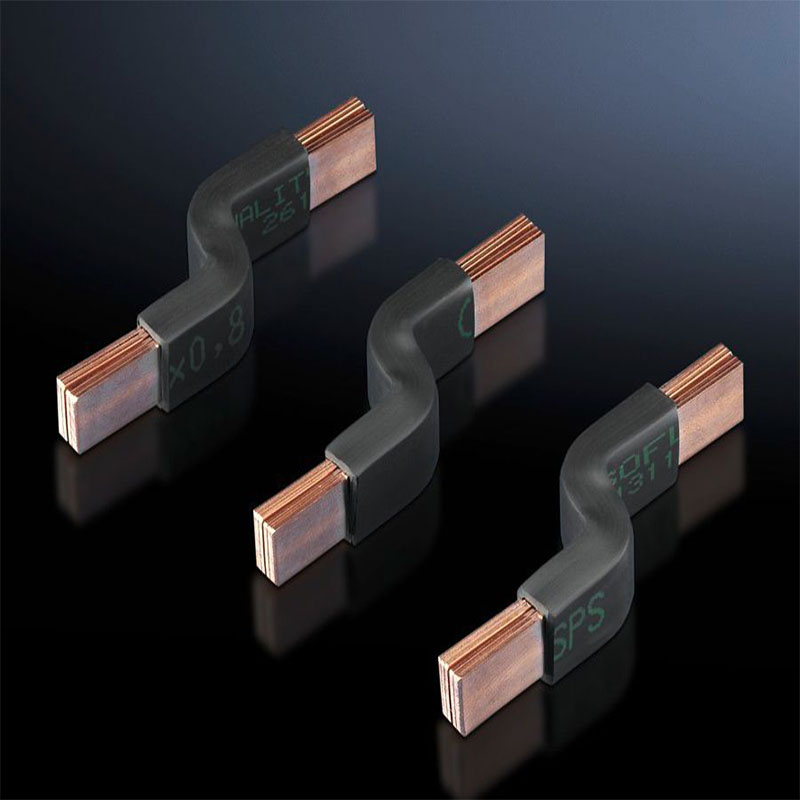

Pre-assembled, laminated flat copper for connecting standard, commercially available molded case circuit-breakers (MCCB).

Material

Electrolytic copper

Note

Universal application for switchgear with a dimensional difference between the mounting level and the upper edge of the contact level of 20 ± 5 mm.

Suitable for Model No.

9342.500

9342.510

9342.540

9342.550

Laminated flat copper version

Number of lamina: 6

Lamina width: 9 mm

Lamina thickness: 0.8 mm

( Lamina width: 0.35 ˝

Lamina thickness: 0.03 ˝ )

To fit manufacturer (model)

ABB (T1, T1 UL, T2, T2 UL)

Eaton (NZM1, NZM1 UL, BZM B1)

Schneider Electric (NSC100, NSE75, NSE100)

Packaging unit

3 pc(s).

Net weight

0.096 kg

Gross weight

0.103 kg

Copper weight (kg per piece)

0.032

Customs tariff number

85446010

EAN

4028177551947

ETIM 9

EC002270

ECLASS 8.0

27409221

Product description

SV Connection bracket E-Cu, for circuit-breaker component adaptor, SV 9342500/510/540/550
