Power distribution

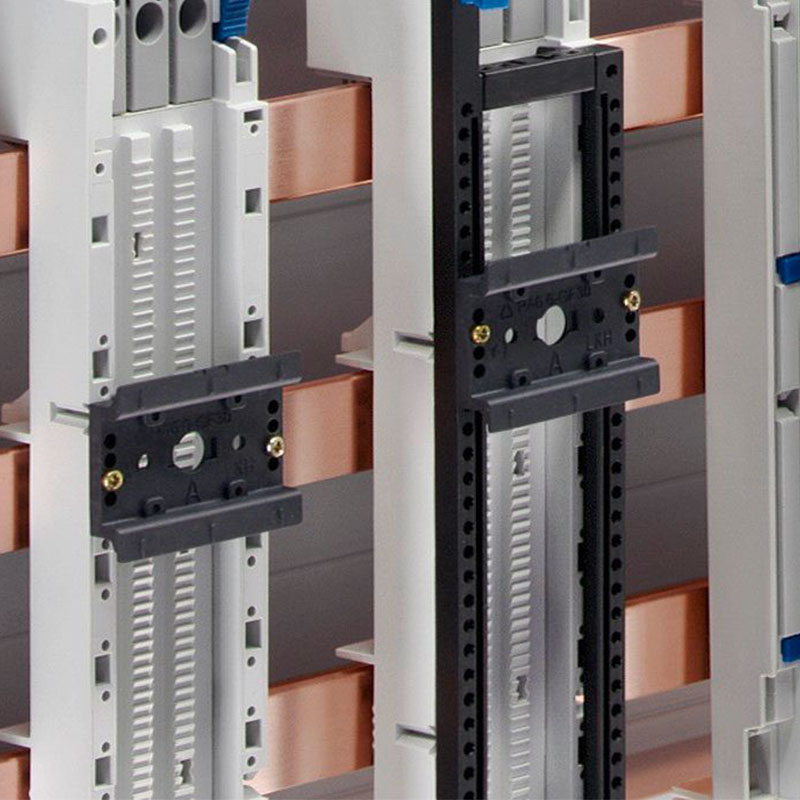

SV 9342930 Support Rail 35 x 10 mm for OM adapter/support
For attaching to the adaptor section or to the support frame.
Product description
SV Support rail 35x10 mm, W: 55 mm, version TS 55D
Article no.:
SV 9342930
Version
TS 55D
Product description
For attaching to the adapter section and support frame.
Material
Polyamide
Color
RAL 9005
Supply includes
Assembly screws
Note
UL approval in conjunction with OM adapter/support
Support rail TS xxD-V, only suitable for non-pitch pattern-dependent mounting on support frame
Support rail type
TS 55D
Dimensions
Width: 55 mm
( Width: 2.17 ˝ )
Packaging unit
5 pc(s).
Net weight
0.04 kg
Gross weight
0.05 kg
Customs tariff number
39269097
EAN
4028177503977
ETIM 9
EC001285
ECLASS 8.0
27141143
Product description
SV Support rail 35x10 mm, W: 55 mm, version TS 55D
