Article no.:

SV 9342980

Applications

For assembly on 55 mm wide OM adapters/supports with 10 mm wide insert strips mounted on both sides.

Arrangement of the mounting hole for central configuration on 55 mm wide adapter section or support frame.

Material

Carbon steel

Surface finish

Zinc-plated

Supply includes

Assembly screws and side anti-slip guard

Support rail type

35 x 7.5 mm

Dimensions

Width: 72 mm

( Width: 2.83 ˝ )

Packaging unit

5 pc(s).

Net weight

0.125 kg

Gross weight

0.203 kg

PCF/VE (cradle-to-gate)

0.5 kg CO2 eq (Cat B)

Information regarding the PCF class

Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared

Customs tariff number

39269097

EAN

4028177525702

ETIM 9

EC001285

ECLASS 8.0

27141143

Product description

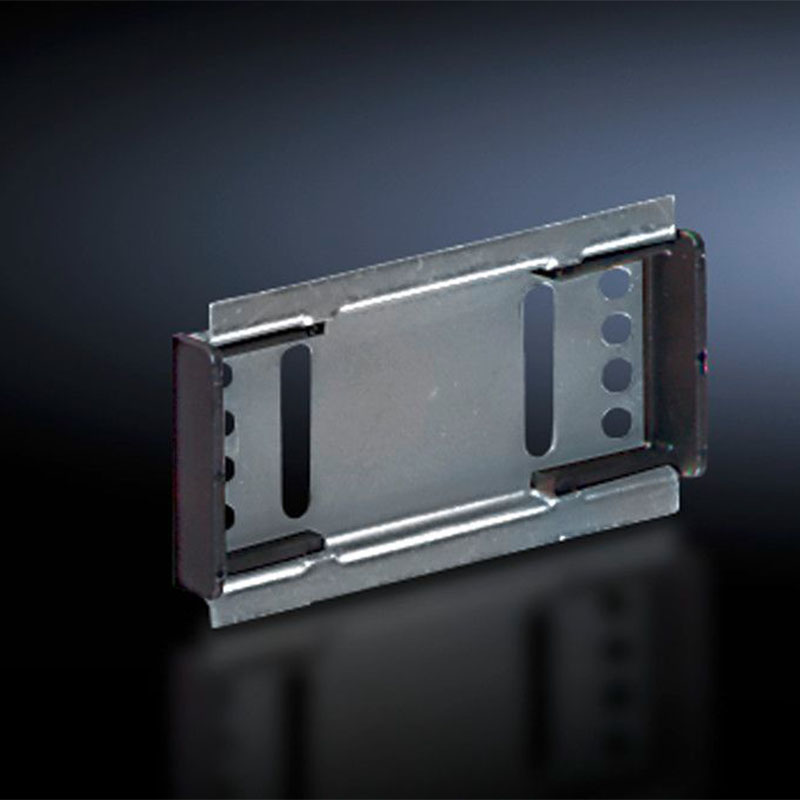

SV Support rail 35x7,5 mm, W: 72 mm, sheet steel
