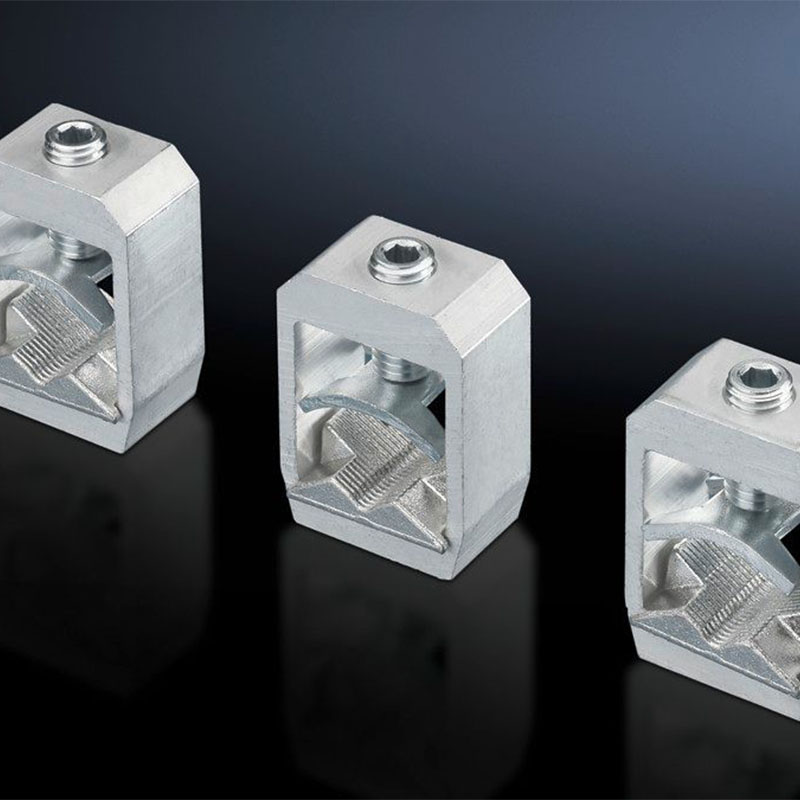

SV 9344610 Box terminal for NH fuse-switch disconnectors
For NH fuse-switch disconnectors size 1 to 3 with screw terminal. For direct connection of round and sector-shaped conductors.
Product description
SV Box terminal, for NH fuse-switch disconnector, size 1 (with screw terminal), round conductor connection 35-150 mm², clamping area WH: 20x14 mm
Article no.:
SV 9344610
Product description
For direct connection of round and sector-shaped conductors as well as laminated copper bars. Suitable for NH fuse-switch disconnectors with screw terminal.
Material
Cast brass
Surface finish
Nickel-plated
Clamping area for laminated copper bars:
Clamping area width: 20 mm
Clamping area height: 14 mm
( Clamping area width: 0.79 ˝
Clamping area height: 0.55 ˝ )
Type of connection (electrical)
Box terminal
For size
1
OUT_COL_CROSS_SECTION_SECTOR_CONDUCTOR
50 ‐ 150 mm²
Connection of round conductors
35 ‐ 150 mm²
Round conductor cross-section
35 ‐ 150 mm²
Packaging unit
3 pc(s).
Net weight
0.171 kg
Gross weight
0.175 kg
Customs tariff number
73182900
EAN
4028177540972
ETIM 9
EC001894
ECLASS 8.0
27400609
Product description
SV Box terminal, for NH fuse-switch disconnector, size 1 (with screw terminal), round conductor connection 35-150 mm², clamping area WH: 20x14 mm
