Article no.:

SV 9345610

Material

Polyamide

Fire protection corresponding to UL 94-V0

Color

RAL 7035

Supply includes

Connection straps

Sliding Blocks

Rated current max.

250 A

Rated operating voltage

690 V, 3~

Note

Cable outlet: Switch outlet or as outgoing cable from the switchgear

The technical data may vary for UL applications.

Electrical UL ratings (SCCR)

65 kA - 480 V, circuit breaker max. 250 A, DIVQ/7

Cable outlet

Bottom

For bar systems with center-to-center spacing

60 mm

Number of poles

3-pole

Dimensions

Width: 105 mm

Height: 240 mm

( Width: 4.13 ˝

Height: 9.45 ˝ )

Suitable for busbars

Height: 5, 10 mm

( Height: 0.2, 0.39 ˝ )

To fit manufacturer (model)

ABB (S3, T3, T4/320 A, T3 UL, T4 UL, XT3, XT4)

Allen Bradley (140U-J)

Eaton (NZM2, NZM2 UL, BZM B2)

GE (FE160, FE250, FD160)

Legrand (DPX 250)

Mitsubishi (NF125-SGW/HGW, NF160-SGW/HGW)

OEZ (BD250N, BD250S)

Schneider Electric (NS(X)100, NS(X)160, NS(X)250, GV7, NSF150, NSF250)

Schrack (MC2)

Siemens (VL150(X) UL, VL160(X), VL250, VL250 UL, 3RV10 63, 3RV13 63, 3RV13 64, 3VT2, 3VA12/20/21/22, 3VA52/61/62)

Terasaki (H125, L125, H160, L160, S160, E250, H250, L250)

Approvals

UL

Packaging unit

1 pc(s).

Net weight

1.433 kg

Gross weight

1.515 kg

Copper weight (kg per piece)

0.77

Customs tariff number

85369095

EAN

4028177679986

ETIM 9

EC001531

ECLASS 8.0

27370304

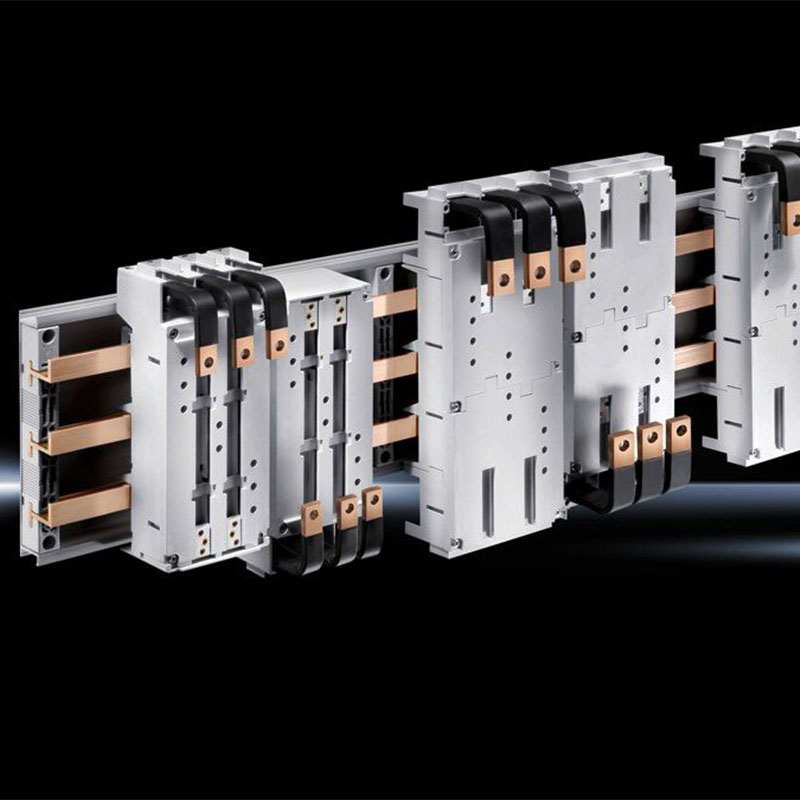

Product description

SV Circuit-breaker component adaptor, 250 A, 690 V, 3-pole, cable outlet bottom, with connection straps
