Article no.:

SV 9345700

Material

Polyamide

Fire protection corresponding to UL 94-V0

Color

RAL 7035

Supply includes

Connection straps

Sliding Blocks

Rated current max.

630 A

Rated operating voltage

690 V, 3~

Note

Cable outlet: Switch outlet or as outgoing cable from the switchgear

The technical data may vary for UL applications.

Electrical UL ratings (SCCR)

65 kA - 480 V, circuit breaker max. 600 A, DIVQ/7

Cable outlet

Top

For bar systems with center-to-center spacing

60 mm

Number of poles

3-pole

Note on Model No.:

The 9342.720 insert strip is also required when using Siemens VL630 switchgear

Dimensions

Width: 140 mm

Height: 345 mm

( Width: 5.51 ˝

Height: 13.6 ˝ )

Suitable for busbars

Height: 5, 10 mm

( Height: 0.2, 0.39 ˝ )

To fit manufacturer (model)

ABB (S5, T5, T5 UL)

Allen Bradley (140U-L)

Eaton (NZM3, NZM3 UL/630 A)

GE (FG630)

Legrand (DPX 630)

Mitsubishi (NF630-SEW/HEW/REW)

OEZ (BH630N, BH630S)

Schneider Electric (NS(X)630, NSJ600)

Schrack (MC3)

Siemens (VL630, 3VA24, 3VT3, 3V10 73, 3RV13 73, 3RV13 74, 3VA64)

Terasaki (E630, S630)

Approvals

UL

Packaging unit

1 pc(s).

Net weight

3.6 kg

Gross weight

3.808 kg

Copper weight (kg per piece)

2.44

Customs tariff number

85369095

EAN

4028177680005

ETIM 9

EC001531

ECLASS 8.0

27370304

Product description

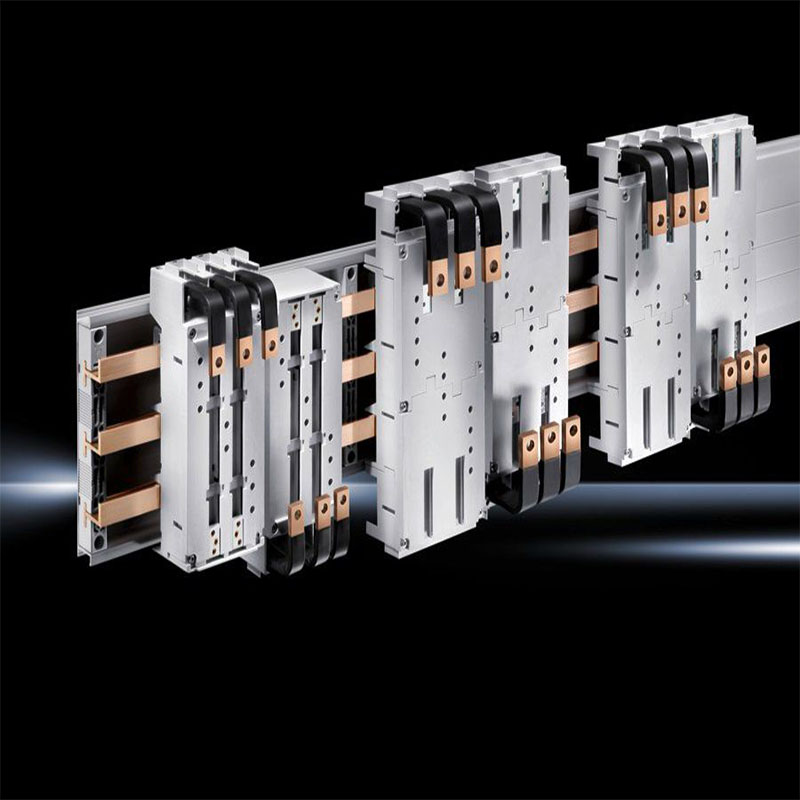

SV Circuit-breaker component adaptor, 630 A, 690 V, 3-pole, cable outlet top, with connection straps
