Article no.:

SV 9345730

Material

Polyamide

Fire protection corresponding to UL 94-V0

Color

RAL 7035

Supply includes

Connection straps

Sliding Blocks

Rated current max.

400 A

Rated operating voltage

690 V, 3~

Note

Cable outlet: Switch outlet or as outgoing cable from the switchgear

The technical data may vary for UL applications.

Electrical UL ratings (SCCR)

65 kA - 480 V, circuit breaker max. 400 A, DIVQ/7

Cable outlet

Bottom

For bar systems with center-to-center spacing

60 mm

Number of poles

3-pole

Dimensions

Width: 140 mm

Height: 345 mm

( Width: 5.51 ˝

Height: 13.6 ˝ )

Suitable for busbars

Height: 5, 10 mm

( Height: 0.2, 0.39 ˝ )

To fit manufacturer (model)

Eaton (NZM3, NZM3 UL/400 A)

GE (FG400)

Mitsubishi (NF400-SEW/HEW/REW)

Schneider Electric (NS(X)400, NSJ400)

Schrack (MC3)

Siemens (VL400, VL400X UL, VL400 UL, 3VA23, 3VA63)

Terasaki (E400, S400, H400, L400)

Approvals

UL

Packaging unit

1 pc(s).

Net weight

2.831 kg

Gross weight

2.963 kg

Copper weight (kg per piece)

1.533

Customs tariff number

85369095

EAN

4028177680036

ETIM 9

EC001531

ECLASS 8.0

27370304

Product description

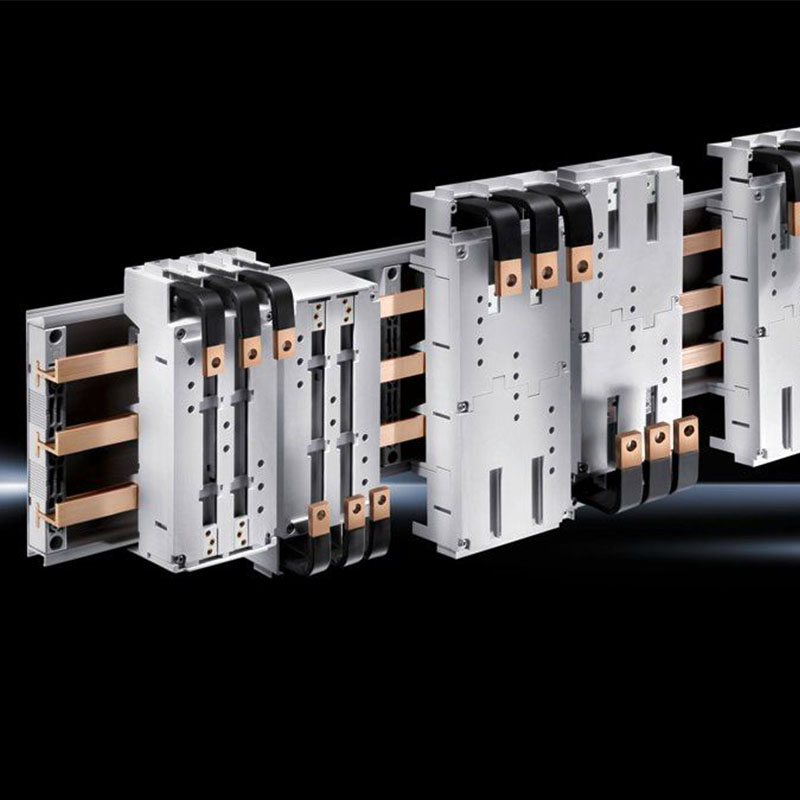

SV Circuit-breaker component adaptor, 400 A, 690 V, 3-pole, cable outlet bottom, with connection straps
