Article no.:

SV 9346010

Material

Fiberglass-reinforced polyamide

Fire protection corresponding to UL 94-V0

Contact tracks: Silver-plated hard copper

Color

Chassis: RAL 7035

Cover: RAL 7001

Handle: RAL 7016

Supply includes

3 mounting hooks

For bar systems with center-to-center spacing

60 mm

Cable outlet

Top/bottom

Type of connection (electrical)

Screw M8

Rated operating current max.

160 A

Rated operating voltage

690 V, 3~

For NH size

00

Test specification

IEC 60 947-3

IEC 60 269-2 (fuse inserts)

Dimensions

Width: 50 mm

Height: 400 mm

( Width: 1.97 ˝

Height: 15.7 ˝ )

Connection of round conductors

2.5 ‐ 95 mm²

Suitable for busbars

Height: 5, 10 mm

( Height: 0.2, 0.39 ˝ )

Number of poles

3-pole

Round conductor cross-section

2.5 ‐ 95 mm²

Packaging unit

1 pc(s).

Net weight

1.2 kg

Gross weight

1.294 kg

Copper weight (kg per piece)

0.73

Customs tariff number

85369095

EAN

4028177628755

ETIM 9

EC001046

ECLASS 8.0

27371402

Product description

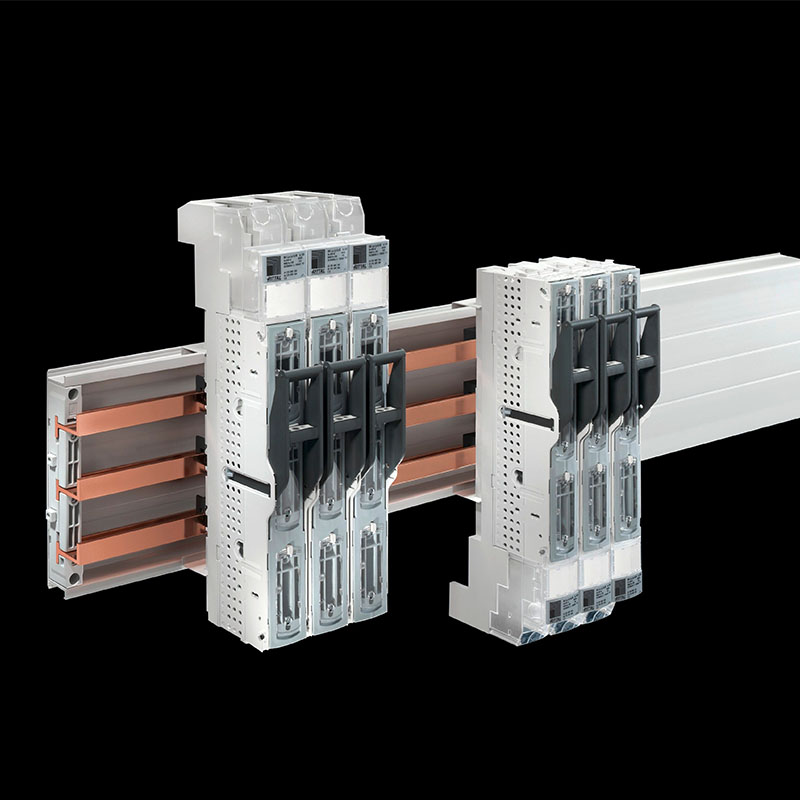

SV NH slimline fuse-switch disconnector, size 00, 160 A, 690 V, 3-pole, screw M8, 60 mm
