TS8 Basic enclosure
TS 8265500 Baying systems TS 8
Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on all sides. In addition, the integrated, automatic potential equalization of all enclosure panels and the triple machining of the surface ensures maximum safety.
Product description

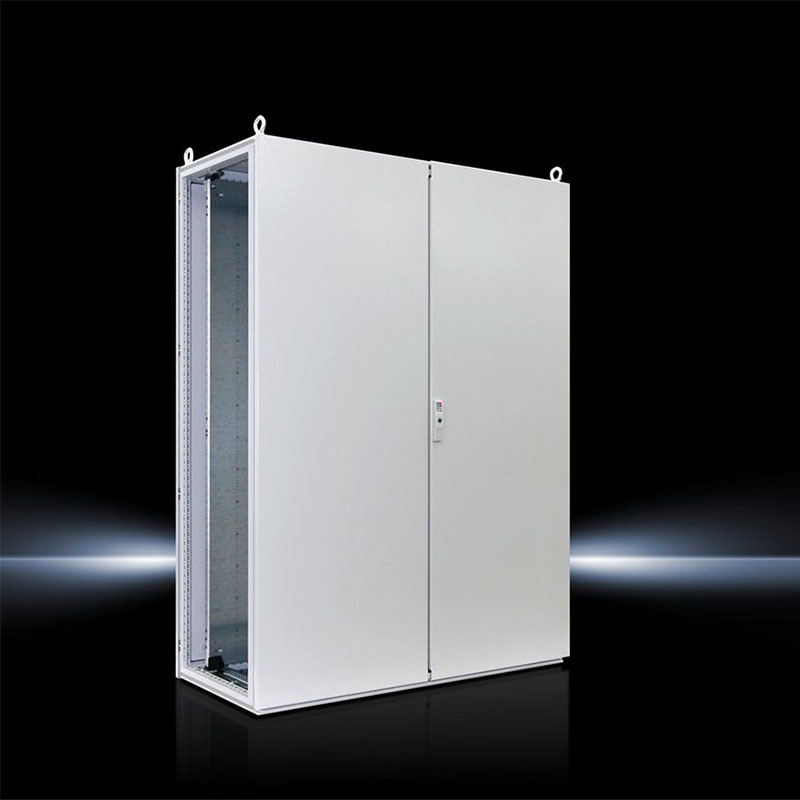

TS Bayed enclosure system, WHD: 1200x1600x500 mm, Sheet steel, with mounting plate, two doors at the front
Article no.:
TS 8265500
Material
Enclosure frame: Carbon steel, 1.5 mm
Roof: Carbon steel, 1.5 mm
Door: Carbon steel, 2.0 mm
Rear wall: carbon steel, 1.5 mm
Base plates: Carbon steel, 1.5 mm
Mounting panel: Carbon steel, 3.0 mm
Surface finish
Enclosure frame: Dipcoat-primed
Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint
Mounting plate and base plates: Zinc-plated
Color
RAL 7035
Supply includes
Enclosure frame
Door(s)
Right-hand door catch on single-door enclosures may be swapped to the left
Roof plate
Rear panel
4 eyebolts
Lock: 3 mm double-bit
Base Plates
Mounting panel
2 TS punched rails, 18 x 38 mm
Dimensions
Width: 1,200 mm
Height: 1,600 mm
Depth: 500 mm
( Width: 47.2 ˝
Height: 63 ˝
Depth: 19.7 ˝ )
Dimensions of mounting plate (W x H)
1,099 mm x 1,496 mm
( 43.3 ˝ x 58.9 ˝ )
Protection category IP to EN 60 529
IP 55
Protection category NEMA
NEMA 1
NEMA 12
Type rating according to UL 50E
Type 1
Type 12
IK code
IK09
Number of doors
2
Base material
Carbon steel
Packaging unit
1 pc(s).
Net weight
145.3 kg
Gross weight
159.3 kg
Customs tariff number
94032080
EAN
4028177386679
ETIM 9
EC000261
ECLASS 8.0
27180101
Product description
TS Bayed enclosure system, WHD: 1200x1600x500 mm, Sheet steel, with mounting plate, two doors at the front
