Article no.:

TS 8286500

Material

Enclosure frame: Carbon steel, 1.5 mm

Roof: Carbon steel, 1.5 mm

Door: Carbon steel, 2.0 mm

Rear wall: carbon steel, 1.5 mm

Base plates: Carbon steel, 1.5 mm

Mounting panel: Carbon steel, 3.0 mm

Surface finish

Enclosure frame: Dipcoat-primed

Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint

Mounting plate and base plates: Zinc-plated

Color

RAL 7035

Supply includes

Enclosure frame

Door(s)

Right-hand door catch on single-door enclosures may be swapped to the left

Roof plate

Rear panel

4 eyebolts

Lock: 3 mm double-bit

Base Plates

Mounting panel

2 TS punched rails, 18 x 38 mm

2 support strips fitted in the enclosure depth

Dimensions

Width: 1,200 mm

Height: 1,800 mm

Depth: 600 mm

( Width: 47.2 ˝

Height: 70.9 ˝

Depth: 23.6 ˝ )

Dimensions of mounting plate (W x H)

1,099 mm x 1,696 mm

( 43.3 ˝ x 66.8 ˝ )

Protection category IP to EN 60 529

IP 55

Protection category NEMA

NEMA 1

NEMA 12

Type rating according to UL 50E

Type 1

Type 12

IK code

IK09

Number of doors

2

2 supportstrips in depth

Yes

Base material

Carbon steel

Packaging unit

1 pc(s).

Net weight

170.905 kg

Gross weight

179.9 kg

Customs tariff number

94032080

EAN

4028177250949

ETIM 9

EC000261

ECLASS 8.0

27180101

Product description

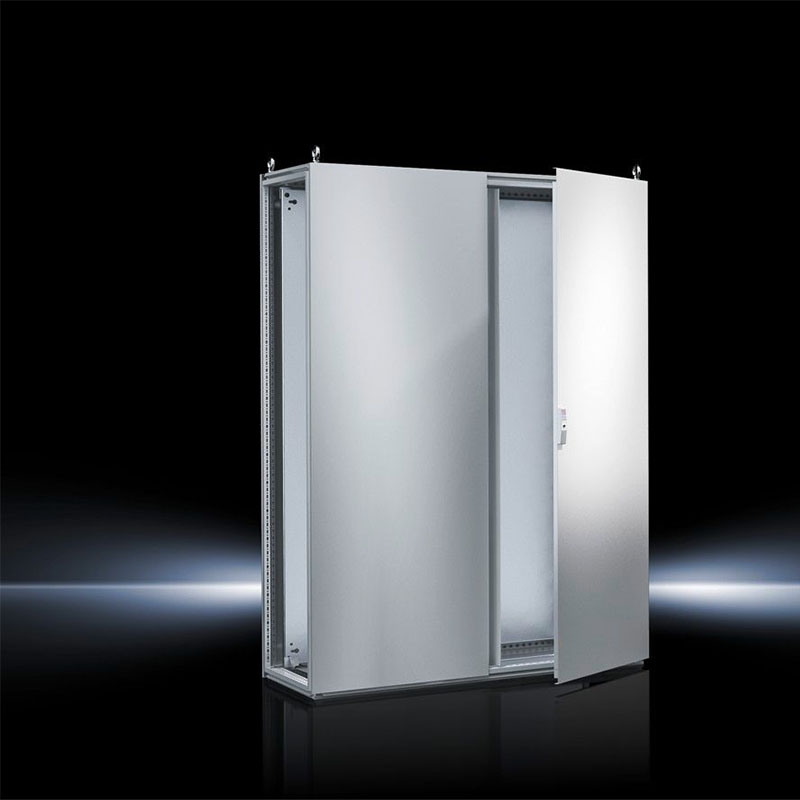

TS Bayed enclosure system, WHD: 1200x1800x600 mm, Sheet steel, with mounting plate, two doors at the front
