Accessories for climate control

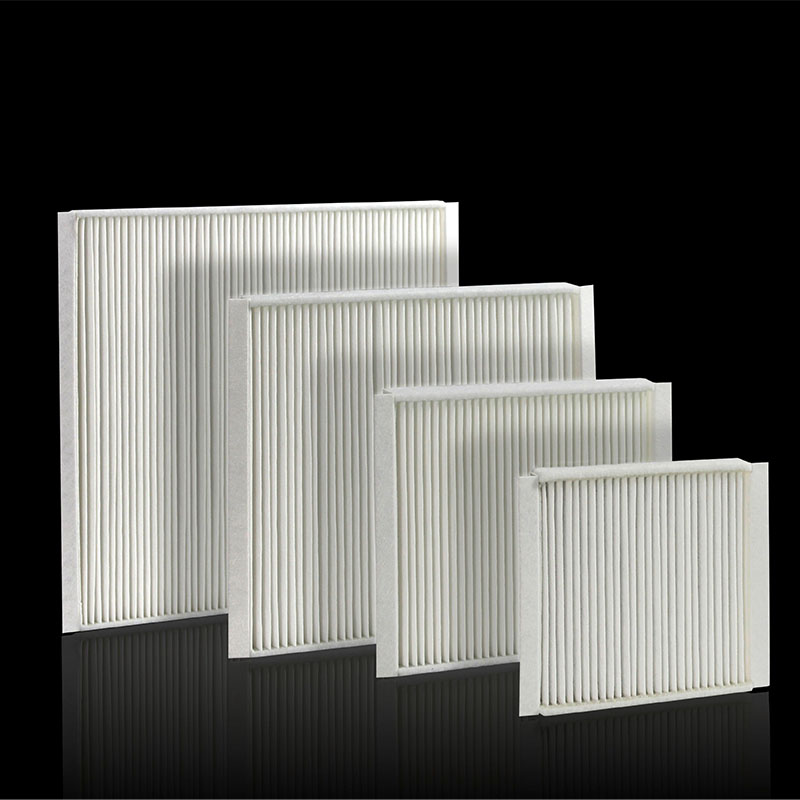

SK 3171120 Pleated filter for filter and roof-mounted fans, cooling units and chillers
Compared to conventional chopped fiber filters, the high-quality pleated filter technology enables a significant increase in the volume flow and thus an increase in the performance of the unit as well as a reduction in energy consumption. In addition, better filtration properties ensure less dust in the enclosure or unit, and the longer service life means significantly lower service costs.
Product description
SK Pleated filter IP54, for filter fan/outlet filter 3239.xxx, WHD: 167x167x21 mm
Article no.:
SK 3171120
Version
for fan-and-filter units / outlet filters
Material
PET
Color
White
Note
Performance data, protection category, and device approvals are only guaranteed when used in conjunction with original Rittal filter mats.
Suitable for Model No.
3239.xxx
Dimensions
Width: 167 mm
Height: 167 mm
Depth: 21 mm
( Width: 6.57 ˝
Height: 6.57 ˝
Depth: 0.83 ˝ )
Filter class
to DIN EN 779: G4
to DIN EN ISO 16890: ISO coarse 70%
Protection category IP to IEC 60 529
IP 54 when mounted in filter & roof-mounted fans/outlet filters
Note on Model No.:
Not suitable for use in EMC filter fans.
Packaging unit
5 pc(s).
Net weight
0.2 kg
Gross weight
0.22 kg
Customs tariff number
56039390
EAN
4028177969155
ETIM 9
EC002513
ETIM 8
EC002513
ECLASS 8.0
27180706
Product description
SK Pleated filter IP54, for filter fan/outlet filter 3239.xxx, WHD: 167x167x21 mm
