Accessories for climate control

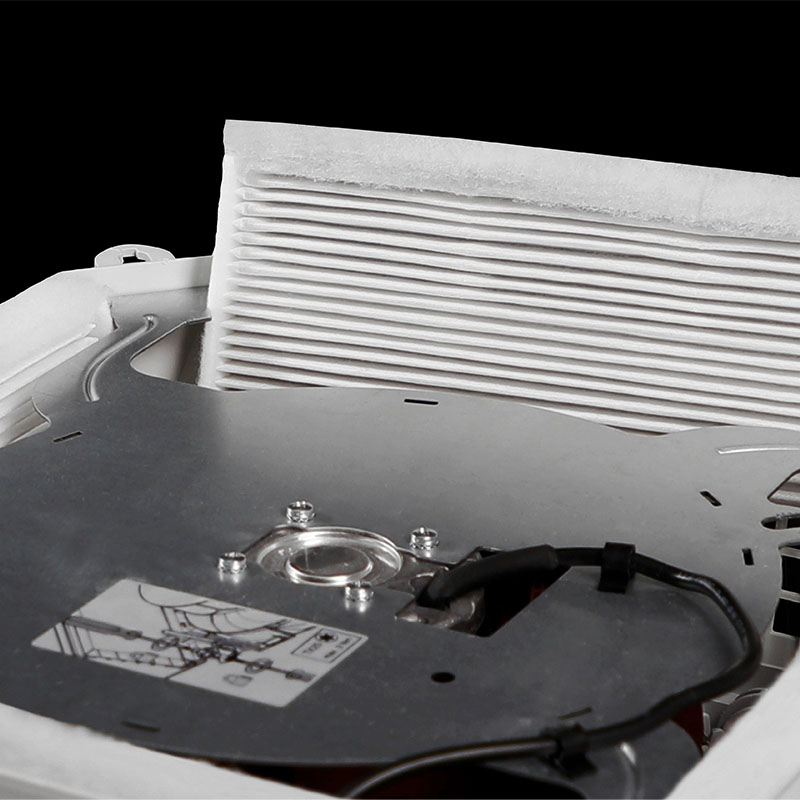

SK 3174120 Pleated filter for filter and roof-mounted fans, cooling units and chillers
Compared to conventional chopped fiber filters, the high-quality pleated filter technology enables a significant increase in the volume flow and thus an increase in the performance of the unit as well as a reduction in energy consumption. In addition, better filtration properties ensure less dust in the enclosure or unit, and the longer service life means significantly lower service costs.
Product description
SK Pleated filter IP54, for roof-mounted fan 3138./3139./3140.xxx, WHD: 265x100x18 mm
Article no.:
SK 3174120
Version
for roof fans
Material
Pleated filter: base polyester, meltblown polycarbonate
Note
Performance data, protection category, and device approvals are only guaranteed when used in conjunction with original Rittal filter mats.
Suitable for Model No.
3138.xxx
3139.xxx
3140.xxx
Dimensions
Width: 265 mm
Height: 100 mm
Depth: 18 mm
( Width: 10.4 ˝
Height: 3.94 ˝
Depth: 0.71 ˝ )
Filter class
to DIN EN 779: M5
to DIN EN ISO 16890: ISO ePM10 50 %
Protection category IP to IEC 60 529
IP 54 when mounted in filter & roof-mounted fans/outlet filters
Packaging unit
12 pc(s).
Net weight
0.276 kg
Gross weight
0.4 kg
Customs tariff number
56039390
EAN
4028177969070
ETIM 9
EC002513
ETIM 8
EC002513
ECLASS 8.0
27180706
Product description
SK Pleated filter IP54, for roof-mounted fan 3138./3139./3140.xxx, WHD: 265x100x18 mm
