Article no.:

SK 3386540

Version

roof-mounted

Product description

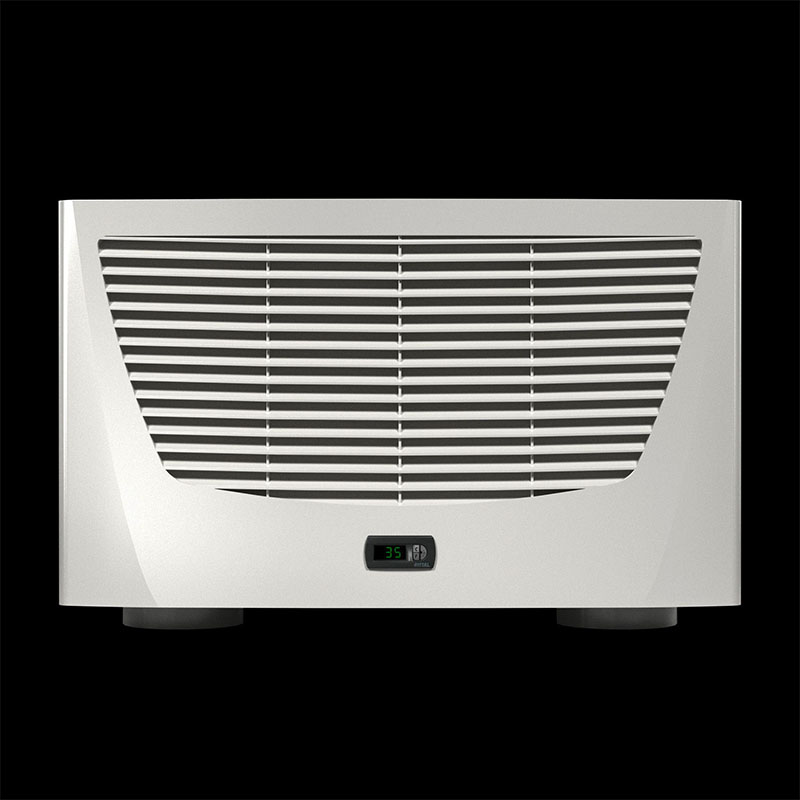

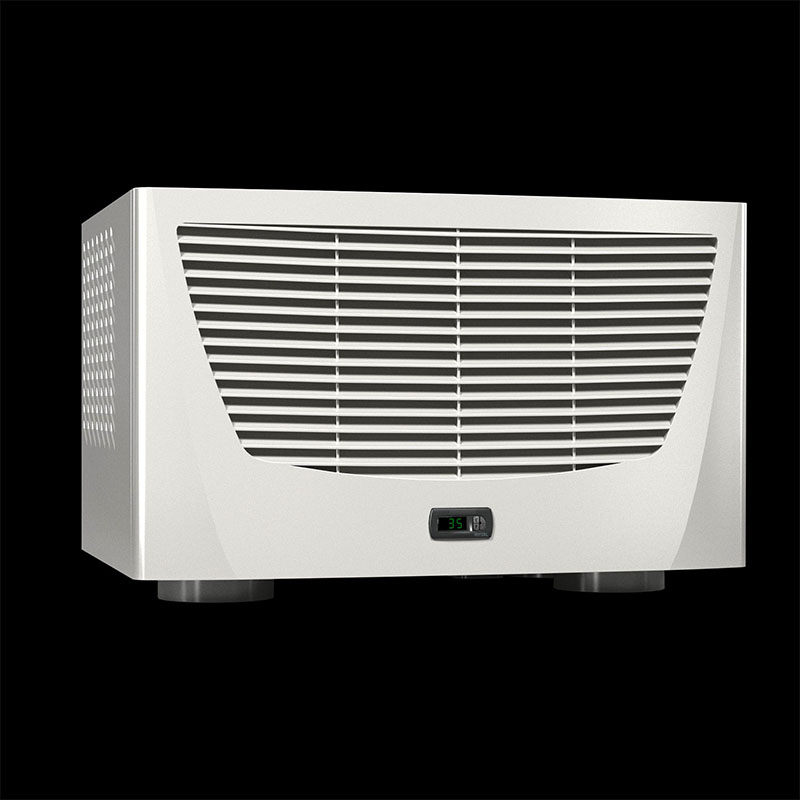

Energy-efficient Blue e roof-mounted cooling units with integral e-Comfort controller and electric condensate evaporation as standard.

Benefits

May be linked to the IoT interface via the Blue e IoT adapter for cooling units with an output of 500 W or higher and e-comfort controllers

Material

Carbon steel

Color

RAL 7035

Supply includes

Condenser with hydrophobic RiNano coating

Integral electric condensate evaporation

Wired ready for connection (plug-in terminal strip)

Drilling template

Fasteners

Total cooling output to DIN EN 14511

Cooling output L35 L35/50 Hz: 3 kW

Cooling output L35 L35/60 Hz: 3.3 kW

Cooling output L35 L50/50 Hz: 2.2 kW

Cooling output L35 L50/60 Hz: 2.5 kW

( Cooling output L35 L35/50 Hz: 10,236 BTU/h

Cooling output L35 L35/60 Hz: 11,260 BTU/h

Cooling output L35 L50/50 Hz: 7,507 BTU/h

Cooling output L35 L50/60 Hz: 8,530 BTU/h )

Rated operating voltage

400 V, 3~, 50 Hz

460 V, 3~, 60 Hz

Note

Due to its low noise level, the roof-mounted cooling unit 3273.500 is also suitable for use in office applications.

Rated current max.

At 50 Hz: 3.4 A

At 60 Hz: 3.4 A

Start-up current (max.)

At 50 Hz: 8 A

At 60 Hz: 9 A

Air throughput (unimpeded air flow)

External circuit: 3,450 m³/h

Internal circuit: 1,280 m³/h

( External circuit: 2,030.6 cfm

Internal circuit: 753.4 cfm )

Energy efficiency ratio (EER) 50/60 Hz L35 L35

Refrigeration factor L35 L35 (EER) 50 Hz: 2.29

Refrigeration factor L35 L35 (EER) 60 Hz: 2.13

Version

roof-mounted

Dimensions

Width: 796 mm

Height: 470 mm

Depth: 580 mm

( Width: 31.3 ˝

Height: 18.5 ˝

Depth: 22.8 ˝ )

Protection category IP to EN 60 529

External circuit, IP 34

Internal circuit, IP 54

Refrigerant/cooling medium

Refrigerant: R-513A

Quantity: 1.6 kg

Global Warming Potential (GWP): 631

CO₂ equivalent (CO₂e): 1.01 t

( Refrigerant: R-513A

Quantity: 3.5 lb. )

Type of connection (electrical)

Plug-in terminal strip

Duty cycle

100 %

Temperature control

e-Comfort Controller (factory setting +35 °C)

Operating temperature range

10 °C...55 °C

( 50 °F...131 °F )

Storage temperature range

-40 °C...70 °C

( -40 °F...158 °F )

Setting range

20 °C...55 °C

( 68 °F...131 °F )

Rated power Pel

Rated power L35 L35/50 Hz: 1.31 kW

Rated power L35 L35/60 Hz: 1.55 kW

Rated power L35 L50/50 Hz: 1.49 kW

Rated power L35 L50/60 Hz: 1.76 kW

Permissible operating pressure (p. max.)

28 bar

( 406.1 PSI )

Pre-fuse

Motor circuit-breaker: 6.3...10 A

Packaging unit

1 pc(s).

Net weight

83.7 kg

Gross weight

84 kg

Customs tariff number

84158200

EAN

4028177323308

ETIM 9

EC000855

ETIM 8

EC000855

ECLASS 8.0

27180704

Product description

SK cooling unit Blue e, roof-mounted, 10236 BTU/h, 400-460 V, 3~, 50/60 Hz, carbon steel, WHD: 796 x 470 x 580 mm
