Article no.:

VX 8617170

Product description

For variable and individual interior fitting of the enclosure frame on the inner mounting level and for installation in compact control enclosures.

Benefits

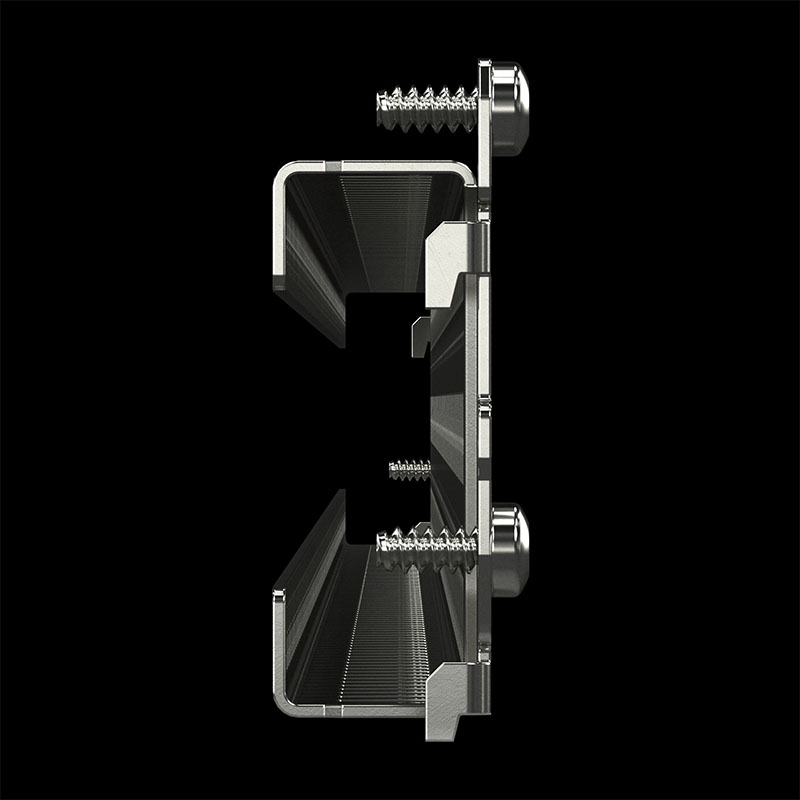

Simply place in the system punchings and screw-fasten

System punchings on all four sides

With slots at the top and bottom for cage nuts, for attaching your own components via metric screws

Material

Carbon steel

Surface finish

Zinc-plated

Supply includes

Assembly components

Installation options VX

In enclosure height 1400 mm, on the inner mounting level

Installation options AX

In enclosure height 1400 mm, in conjunction with rail for interior installation AX and base configuration rail for AX

Installation options AX stainless steel

In enclosure height 1,400 mm, in conjunction with the base configuration rail

Suitable for

Enclosure type: VX

VX IT

AX

Suitable for width or height or depth: 1,400 mm

Packaging unit

4 pc(s).

Net weight

5 kg

Gross weight

5.8 kg

PCF/VE (cradle-to-gate)

31.04

Customs tariff number

73269098

EAN

4028177829176

ETIM 9

EC002620

ECLASS 8.0

27189234

Product description

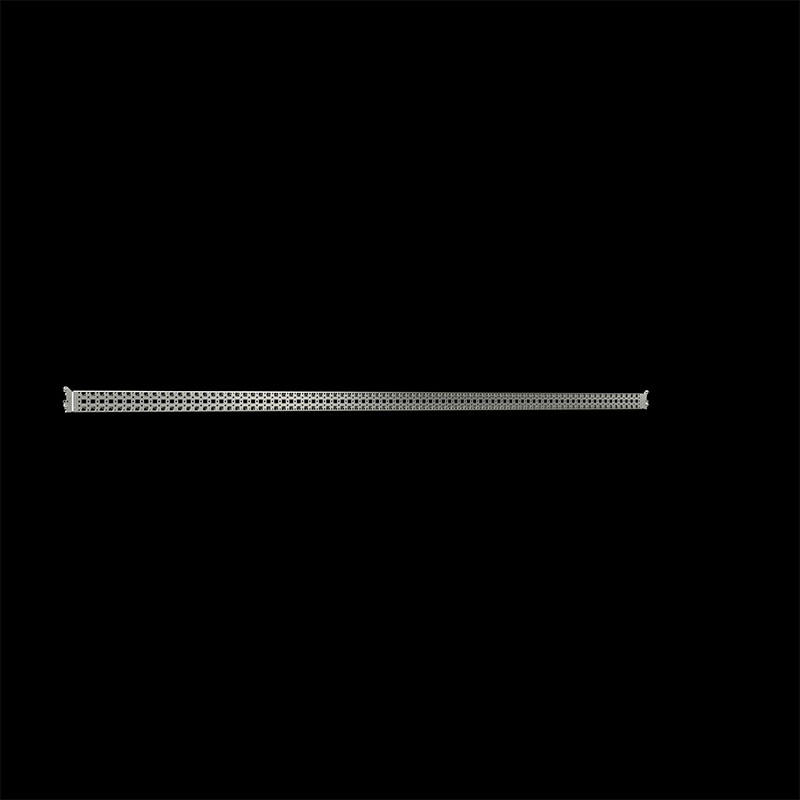

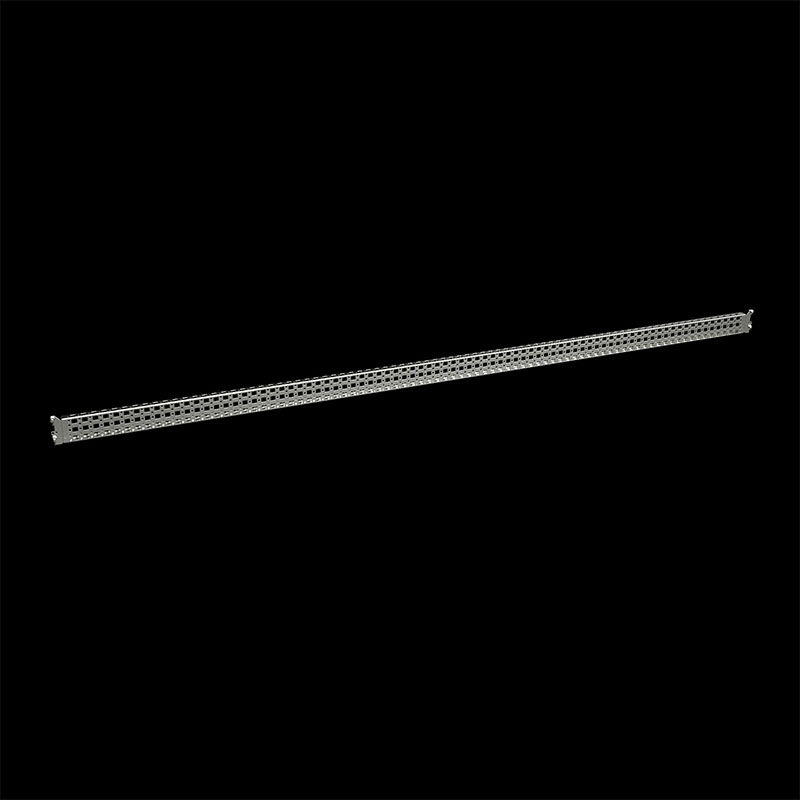

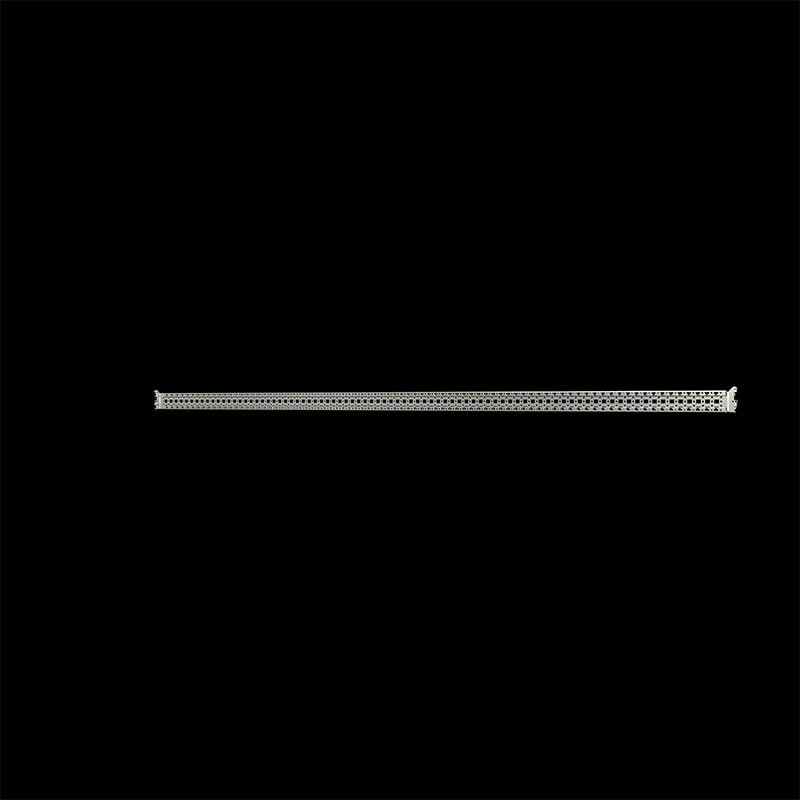

VX Punched section, with mounting flange 23 x 64 mm, for inner mounting level
