Article no.:

VX 8617180

Product description

For variable and individual interior fitting of the enclosure frame on the inner mounting level and for installation in compact control enclosures.

Benefits

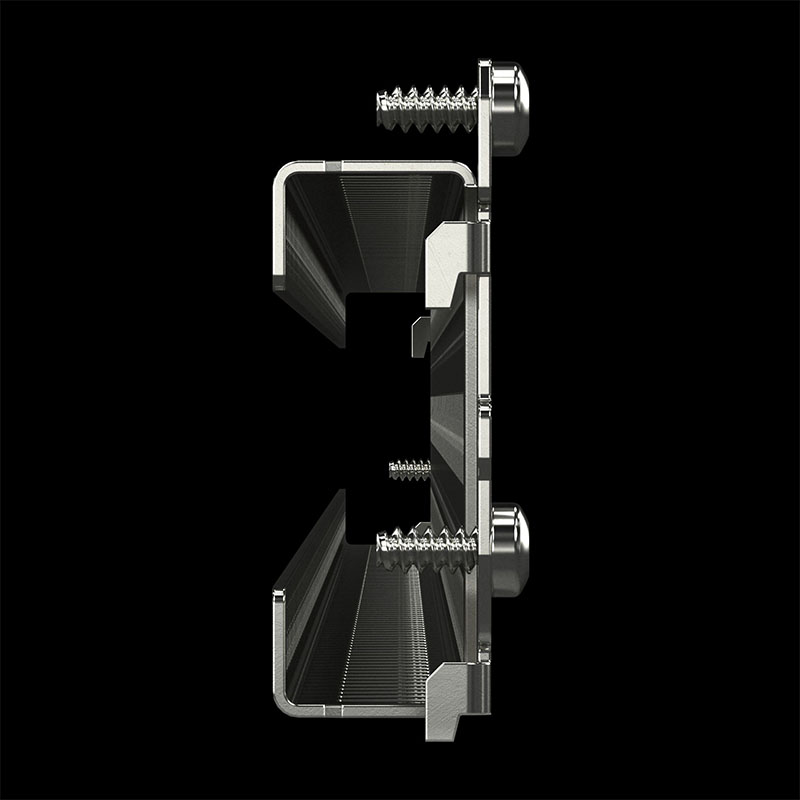

Simply place in the system punchings and screw-fasten

System punchings on all four sides

With slots at the top and bottom for cage nuts, for attaching your own components via metric screws

Material

Carbon steel

Surface finish

Zinc-plated

Supply includes

Assembly components

Installation options VX

In enclosure height 1600 mm, on the inner mounting level

Installation options VX SE

In enclosure width 1600 mm, on the inner mounting level, in conjunction with adaptor rail for VX compatibility

Installation options VX Base

In base/plinth width 1,600 mm on the base/plinth panels, in conjunction with base/plinth installation bracket

Suitable for

Enclosure type: VX

VX IT

VX SE

Suitable for width or height or depth: 1,600 mm

Suitable for

VX base system

Packaging unit

4 pc(s).

Net weight

6.72 kg

Gross weight

6.92 kg

PCF/VE (cradle-to-gate)

35.65

Customs tariff number

73269098

EAN

4028177829183

ETIM 9

EC002620

ECLASS 8.0

27189234

Product description

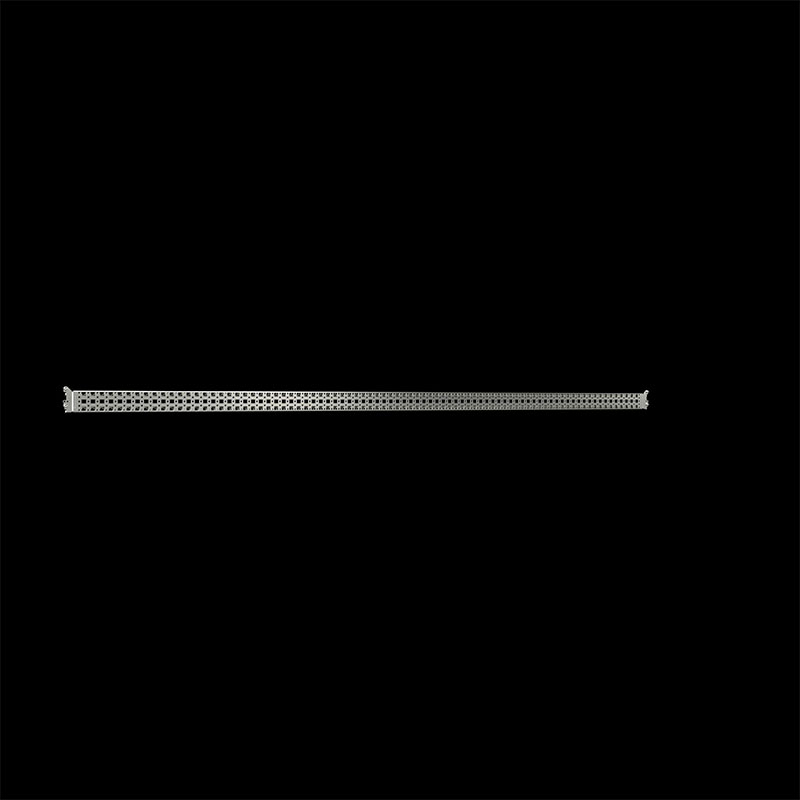

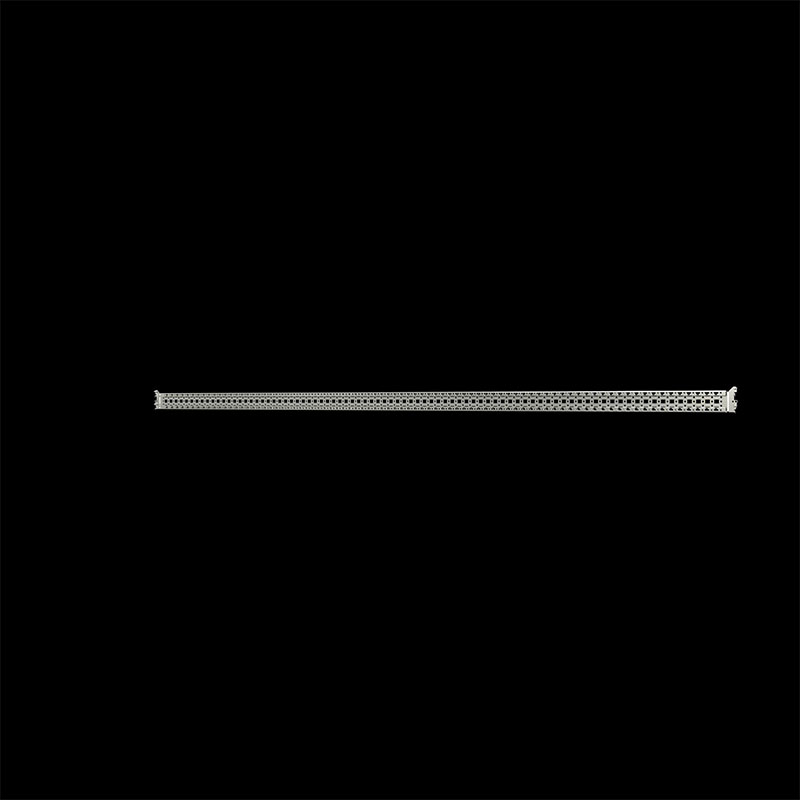

VX Punched section, with mounting flange 23 x 64 mm, for inner mounting level
