Article no.:

SK 3361500

Version

wall-mounted

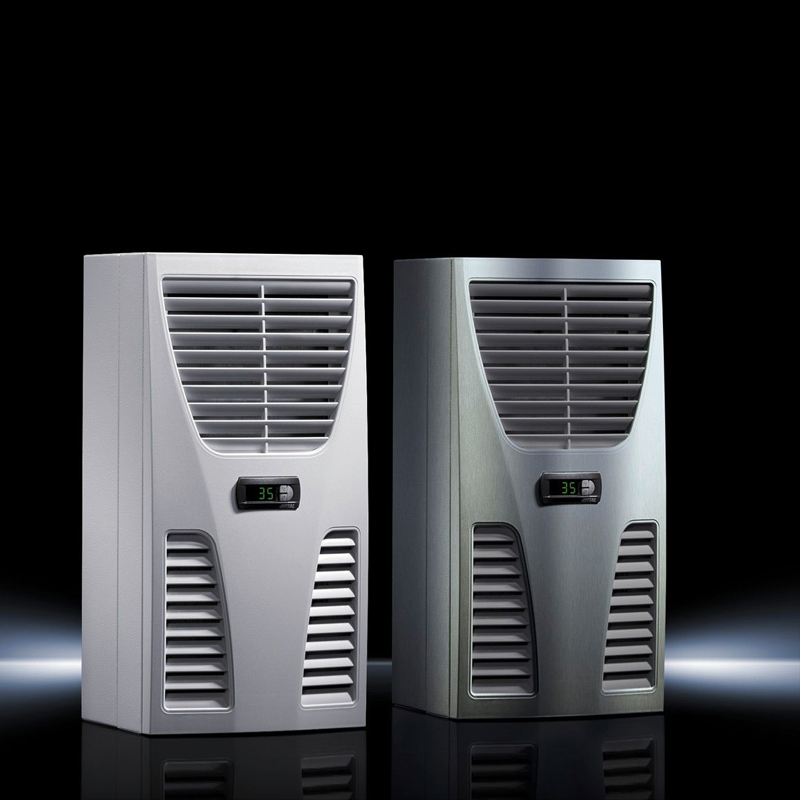

Product description

Energy efficient Blue e wall-mounted cooling units in performance classes 300 W to 4000 W and with integrated electrical condensation evaporation for 1000 W and above.

Benefits

May be linked to the IoT interface via the Blue e IoT adapter for cooling units with an output of 500 W or higher and e-comfort controllers

Material

Carbon steel

Color

RAL 7035

Supply includes

Condenser with hydrophobic RiNano coating
Wired ready for connection (plug-in terminal strip)
Drilling template
Fasteners

Total cooling output to DIN EN 14511

Cooling output L35 L35/50 Hz: 0.82 kW
Cooling output L35 L35/60 Hz: 0.82 kW
Cooling output L35 L50/50 Hz: 0.59 kW
Cooling output L35 L50/60 Hz: 0.6 kW
( Cooling output L35 L35/50 Hz: 2,798 BTU/h
Cooling output L35 L35/60 Hz: 2,798 BTU/h
Cooling output L35 L50/50 Hz: 2,013 BTU/h
Cooling output L35 L50/60 Hz: 2,047 BTU/h )

Rated operating voltage

230 V, 1~, 50 Hz/60 Hz

Rated current max.

At 50 Hz: 2.7 A
At 60 Hz: 2.7 A

Start-up current (max.)

At 50 Hz: 6 A
At 60 Hz: 9.6 A

Air throughput (unimpeded air flow)

External circuit: 550 m³/h
Internal circuit: 230 m³/h
( External circuit: 323.7 cfm
Internal circuit: 135.4 cfm )

Energy efficiency ratio (EER) 50/60 Hz L35 L35

Refrigeration factor L35 L35 (EER) 50 Hz: 1.95
Refrigeration factor L35 L35 (EER) 60 Hz: 1.78

Version

wall-mounted

Dimensions

Width: 280 mm
Height: 550 mm
Depth: 280 mm
( Width: 11 ˝
Height: 21.7 ˝
Depth: 11 ˝ )

Protection category IP to EN 60 529

External circuit, IP 34

Internal circuit, IP 54

Protection category NEMA

UL Type 12

Refrigerant/cooling medium

Refrigerant: R-513A
Quantity: 0.28 kg
Global Warming Potential (GWP): 631
CO₂ equivalent (CO₂e): 0.18 t
( Refrigerant: R-513A
Quantity: 0.6 lb. )

Temperature control

e-Comfort Controller (factory setting +35 °C)

Operating temperature range

10 °C...55 °C
( 50 °F...131 °F )

Operating temperature max @60 Hz

52 °C
( 126 °F )

Storage temperature range

-40 °C...70 °C
( -40 °F...158 °F )

Setting range

20 °C...52 °C
( 68 °F...126 °F )

Rated power Pel

Rated power L35 L35/50 Hz: 0.42 kW
Rated power L35 L35/60 Hz: 0.46 kW
Rated power L35 L50/50 Hz: 0.47 kW
Rated power L35 L50/60 Hz: 0.5 kW

Permissible operating pressure (p. max.)

28 bar
( 406.1 PSI )

Pre-fuse

Miniature circuit-breaker/fuse: 10 A

Packaging unit

1 pc(s).

Net weight

21.038 kg

Gross weight

22.145 kg

Customs tariff number

84158200

EAN

4028177429536

ETIM 9

EC000855

ETIM 8

EC000855

ECLASS 8.0

27180704

Product description

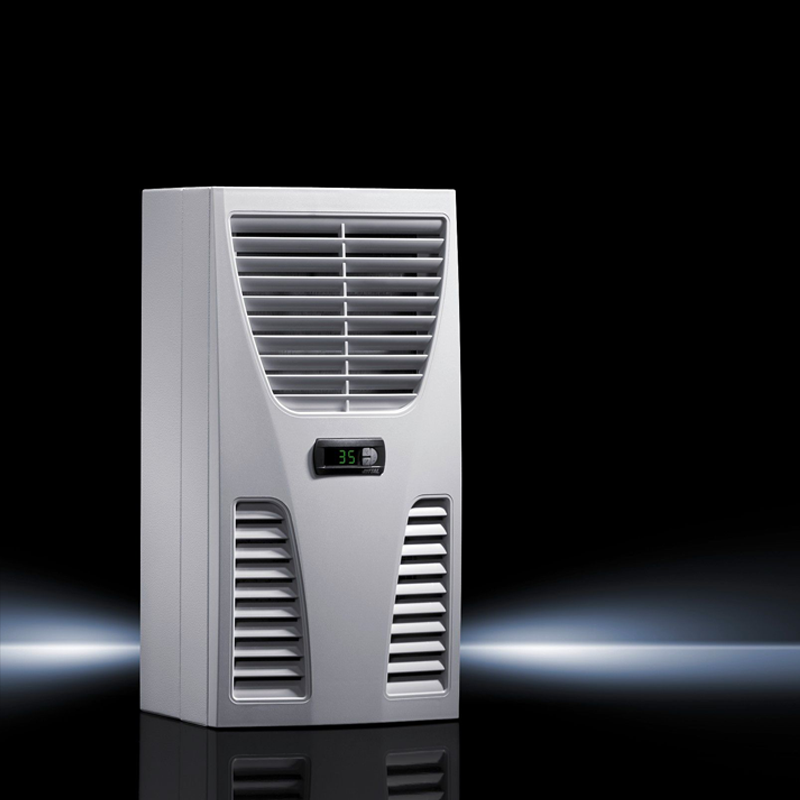

SK Cooling unit Blue e, wall-mounted, 2797.96 BTU/h, 230 V, 1~, 50/60 Hz, carbon steel, WHD: 280 x 550 x 280 mm
