Article no.:

SK 3240724

Version

wall-mounted

Product description

Filter fans with diagonal fan technology are more pressure-resistant and produce more constant air performance. The diagonal outflow direction ensures a more uniform heat dissipation from the enclosure.

Benefits

Highest airflow through pleated filter in delivery condition

Easy filter change thanks to a new opening mechanism on the louvre grille

Faster assembly on the enclosure due to optimized snap hooks

Diagonal fan technology ensures more uniform and consistent ventilation of the control cabinet through higher pressure stability.

Tool-free mounting

Material

Plastic

Color

RAL 7035

Supply includes

Complete unit ready to install, including pleated filter

Fan

Diagonal, DC motor

Unimpeded air flow (with pleated filter)

with DC: 218 m³/h

Airflow with corresponding outlet filter including pleated filter

with DC: 191 m³/h

Unimpeded air flow (with chopped fiber filter)

with DC: 175 m³/h

Airflow with corresponding outlet filter including chopped fiber filter

with DC: 130 m³/h

Rated operating voltage

24 V (DC)

Rated power Pel

with DC: 10.1 W

Rated current max.

with DC: 0.42 A

Dimensions

Width: 255 mm
Height: 255 mm
Depth: 129 mm
( Width: 10 ˝
Height: 10 ˝
Depth: 5.08 ˝ )

Installation depth

108 mm
( 4.25 ˝ )

Mounting cut-out

Width of opening: 224 mm
Cut-out height: 224 mm
( Width of opening: 8.82 ˝
Cut-out height: 8.82 ˝ )

Protection category IP to IEC 60 529

IP 54 with chopped fiber filter/pleated filter

IP 55 with pleated filter and absorber mat

IP 56 with chopped fiber filter/pleated filter and hose-proof hood

Protection category NEMA

Type 12 with chopped fiber filter/pleated filter

Type 3, 3R, 4, 4X with chopped fiber filter/pleated filter and hose-proof hood

Pre-fuse

Miniature circuit-breaker/fuse: 2 A

Note

For the 3237.XXX filter fan, the electrical connection is made via 2 individual wires (length approx. 300 mm) on the unit, for all other filter fans, it’s made via a spring-loaded terminal

Operating temperature range

-30 °C...55 °C
( -22 °F...131 °F )

Storage temperature range

-30 °C...70 °C
( -22 °F...158 °F )

Noise pressure level

with DC: 48 dB(A)

Packaging unit

1 pc(s).

Net weight

1.97 kg

Gross weight

2.178 kg

Customs tariff number

84145915

EAN

4028177998100

ETIM 9

EC000320

ETIM 8

EC000320

ECLASS 8.0

27180716

Product description

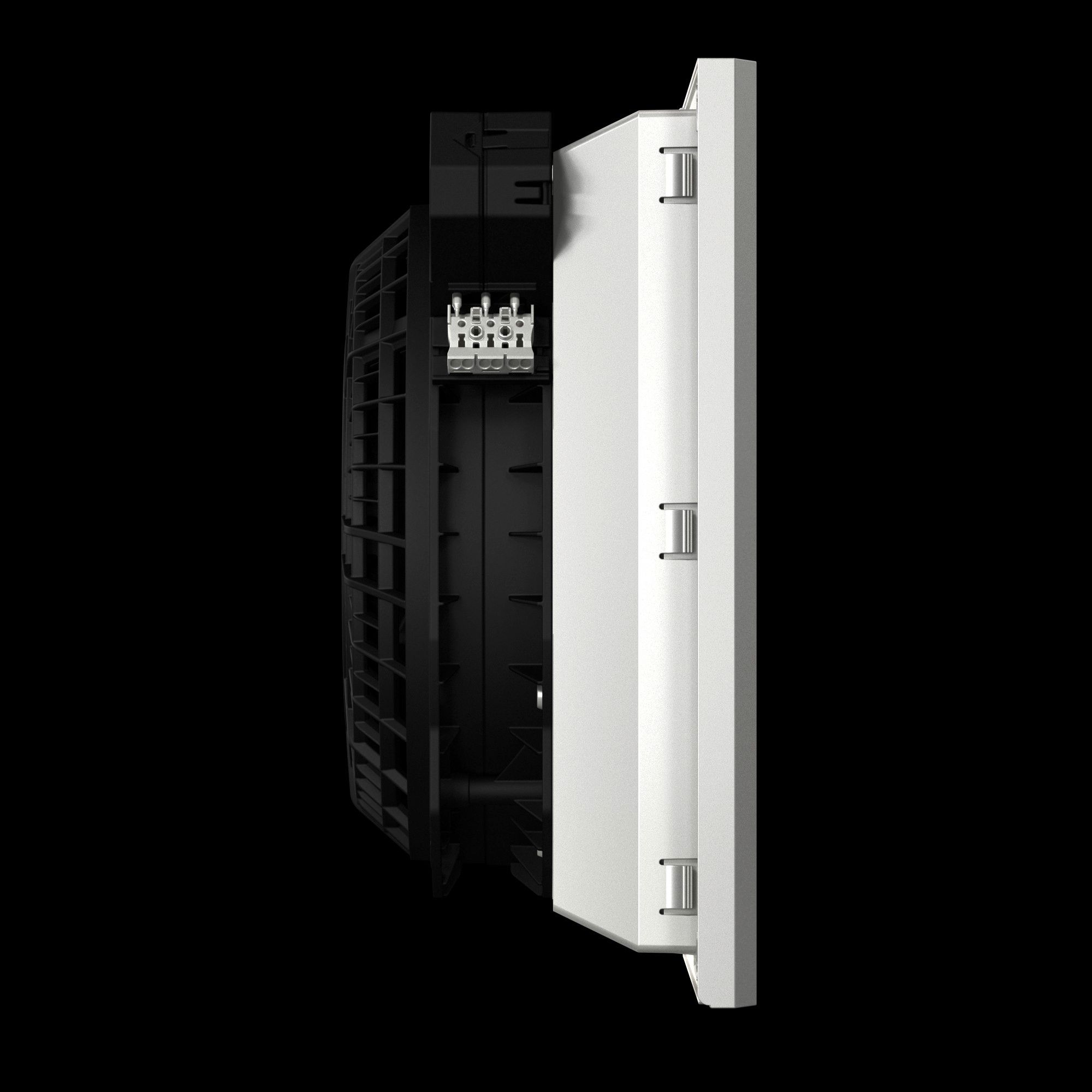

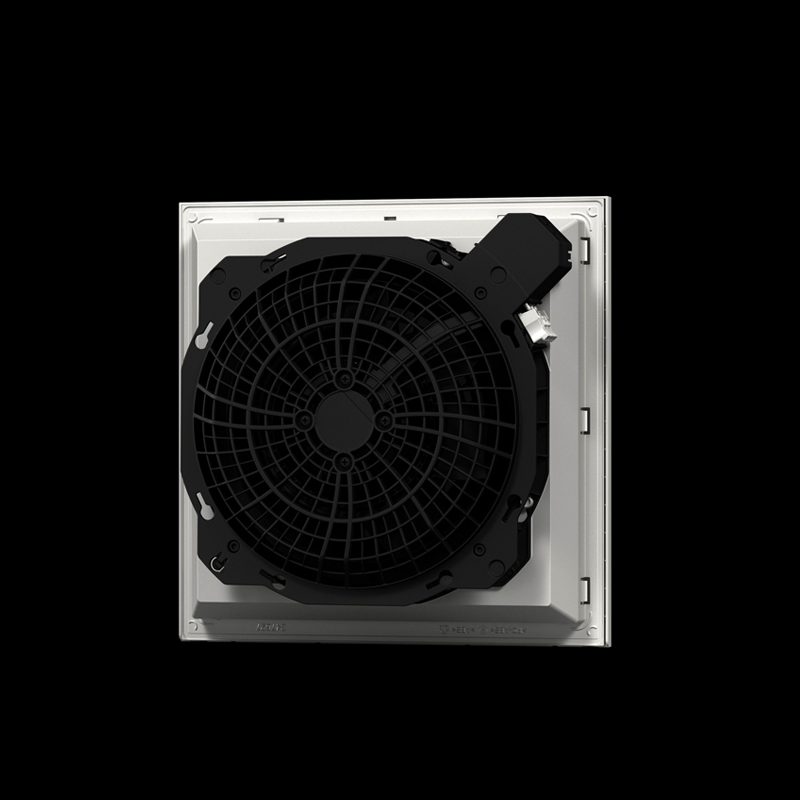

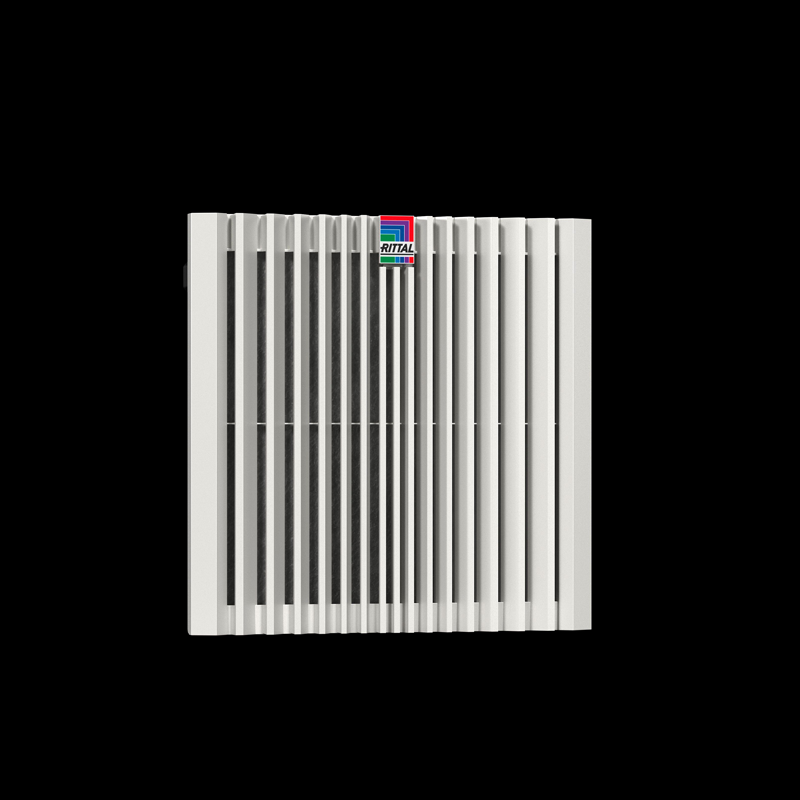

SK Blue e+ filter fan, 218 m³/h, 24 V (DC), WHD 255 x 255 x 129 mm, RAL 7035
