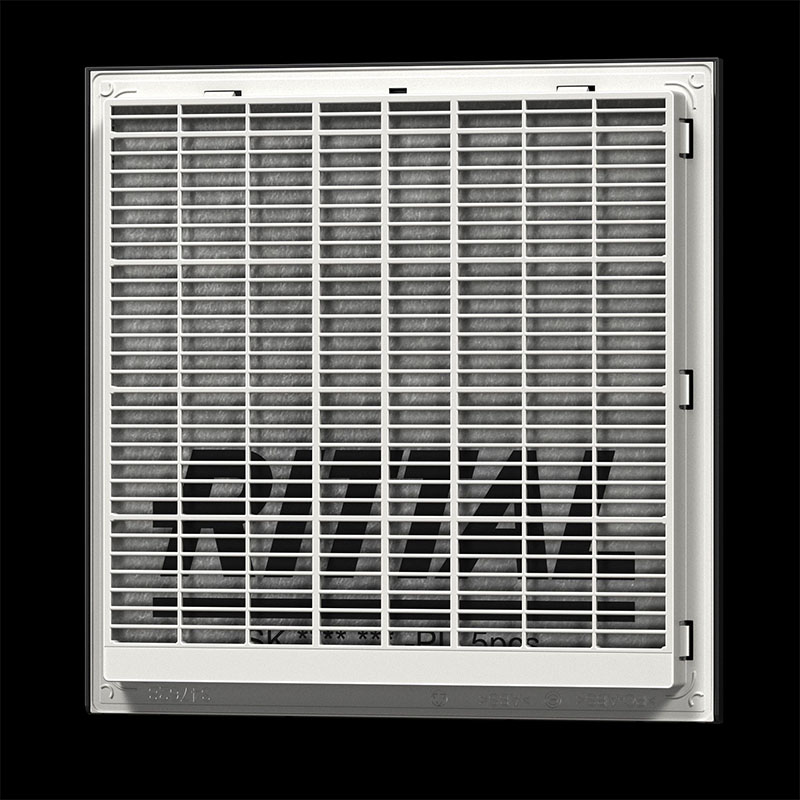

SK 3239300 Blue e+ outlet filter
The outlet filter is used in conjunction with the associated filter fan to dissipate lost heat out of the enclosures, to ventilate the enclosure and to protect temperature-sensitive components. This is done via the direct supply of ambient air that must be below the permissible temperature inside the enclosure.
Product description
SK Blue e+ outlet filter, for filter fan 3239.7xx, WH 204 x 204 mm, RAL 7035
Article no.:
SK 3239300
Version
wall-mounted
Benefits

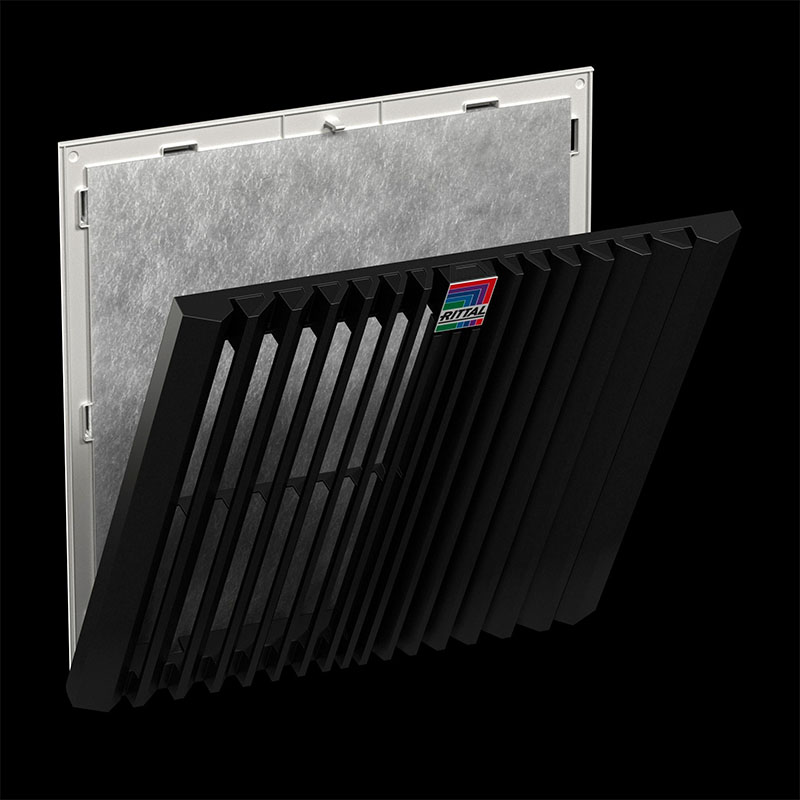

Easy filter change thanks to a new opening mechanism on the louvre grille

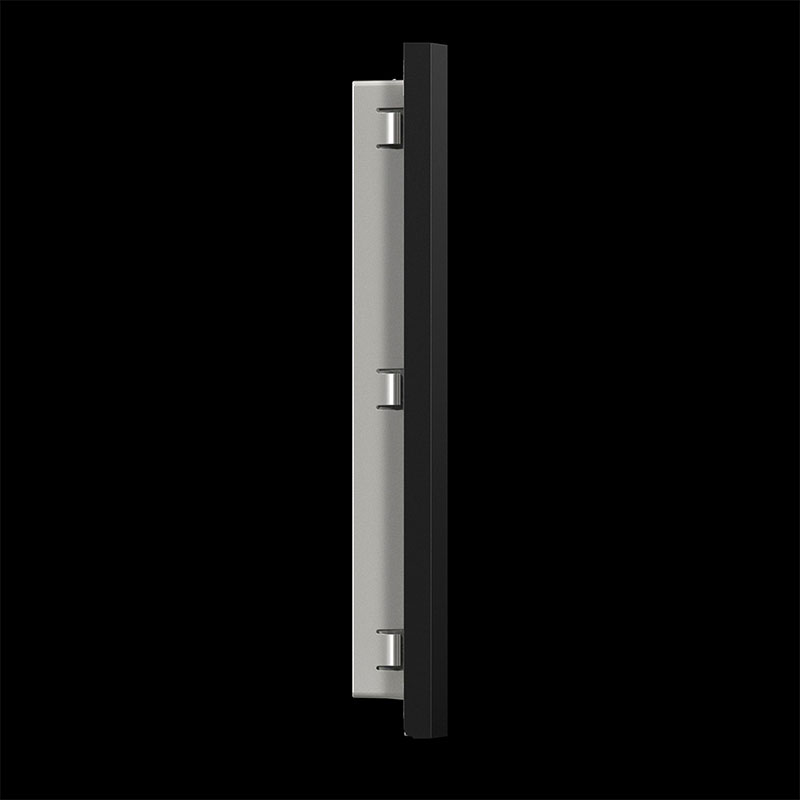

Faster assembly on the enclosure due to optimized snap hooks
Tool-free mounting
Material
Plastic
Color
RAL 7035
Supply includes
Outlet Filters
Pleated filter
Mounting cut-out
Width of opening: 177 mm
Cut-out height: 177 mm
( Width of opening: 6.97 ˝
Cut-out height: 6.97 ˝ )
Suitable for Model No.
SK 3239.7xx
Dimensions
Width: 204 mm
Height: 204 mm
Depth: 45.8 mm
( Width: 8.03 ˝
Height: 8.03 ˝
Depth: 1.8 ˝ )
Protection category NEMA
Type 12 with chopped fiber filter/pleated filter
Type 3, 3R, 4, 4X with chopped fiber filter/pleated filter and hose-proof hood
Protection category IP to IEC 60 529
IP 54 with chopped fiber filter/pleated filter
IP 55 with pleated filter and absorber mat
IP 56 with chopped fiber filter/pleated filter and hose-proof hood
Packaging unit
1 pc(s).
Net weight
0.37 kg
Gross weight
0.473 kg
Customs tariff number
39269097
EAN
4028177998391
ETIM 9
EC002513
ETIM 8
EC002513
ECLASS 8.0
27180706
Product description
SK Blue e+ outlet filter, for filter fan 3239.7xx, WH 204 x 204 mm, RAL 7035
