Article no.:

SK 3243700

Version

wall-mounted

Product description

Filter fans with diagonal fan technology are more pressure-resistant and produce more constant air performance. The diagonal outflow direction ensures a more uniform heat dissipation from the enclosure.

Benefits

Highest airflow through pleated filter in delivery condition

Easy filter change thanks to a new opening mechanism on the louvre grille

Faster assembly on the enclosure due to optimized snap hooks

Diagonal fan technology ensures more uniform and consistent ventilation of the control cabinet through higher pressure stability.

Tool-free mounting

Material

Plastic

Color

RAL 7035

Supply includes

Complete unit ready to install, including pleated filter

Fan

Diagonal, 1~ capacitor motor

Unimpeded air flow (with pleated filter)

At 50 Hz: 625 m³/h

At 60 Hz: 716 m³/h

( At 50 Hz: 367.86 cfm

At 60 Hz: 421.42 cfm )

Airflow with corresponding outlet filter including pleated filter

At 50 Hz: 565 m³/h

At 60 Hz: 645 m³/h

( At 50 Hz: 332.55 cfm

At 60 Hz: 379.63 cfm )

Unimpeded air flow (with chopped fiber filter)

At 50 Hz: 540 m³/h

At 60 Hz: 590 m³/h

( At 50 Hz: 317.8 cfm

At 60 Hz: 347.3 cfm )

Airflow with corresponding outlet filter including chopped fiber filter

At 50 Hz: 444 m³/h

At 60 Hz: 498 m³/h

( At 50 Hz: 261.33 cfm

At 60 Hz: 293.11 cfm )

Rated operating voltage

230 V, 1~, 50 Hz/60 Hz

Rated power Pel

At 50 Hz: 77.7 W

At 60 Hz: 106.4 W

Rated current max.

At 50 Hz: 0.39 A

At 60 Hz: 0.47 A

Dimensions

Width: 323 mm

Height: 323 mm

Depth: 144.5 mm

( Width: 12.7 ˝

Height: 12.7 ˝

Depth: 5.69 ˝ )

Installation depth

124 mm

( 4.88 ˝ )

Mounting cut-out

Width of opening: 292 mm

Cut-out height: 292 mm

( Width of opening: 11.5 ˝

Cut-out height: 11.5 ˝ )

Protection category IP to IEC 60 529

IP 54 with chopped fiber filter/pleated filter

IP 55 with pleated filter and absorber mat

IP 56 with chopped fiber filter/pleated filter and hose-proof hood

Protection category NEMA

Type 12 with chopped fiber filter/pleated filter

Type 3, 3R, 4, 4X with chopped fiber filter/pleated filter and hose-proof hood

Pre-fuse

Miniature circuit-breaker/fuse: 4 A

Note

For the 3237.XXX filter fan, the electrical connection is made via 2 individual wires (length approx. 300 mm) on the unit, for all other filter fans, it’s made via a spring-loaded terminal

Operating temperature range

-30 °C...55 °C

( -22 °F...131 °F )

Storage temperature range

-30 °C...70 °C

( -22 °F...158 °F )

Noise pressure level

At 50 Hz: 62 dB(A)

At 60 Hz: 65 dB(A)

Packaging unit

1 pc(s).

Net weight

4.1 kg

Gross weight

4.28 kg

Customs tariff number

84145915

EAN

4028177997981

ETIM 9

EC000320

ETIM 8

EC000320

ECLASS 8.0

27180716

Product description

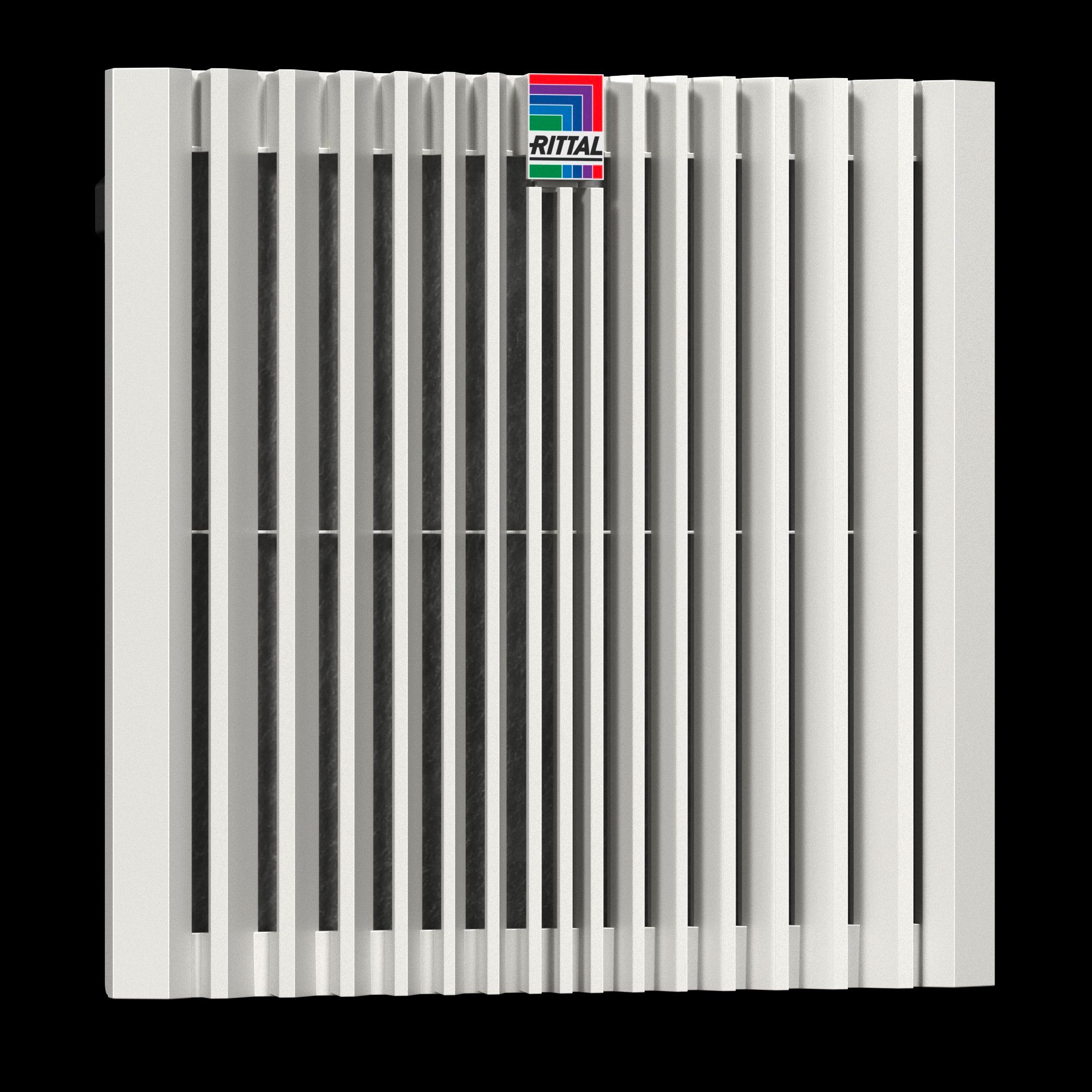

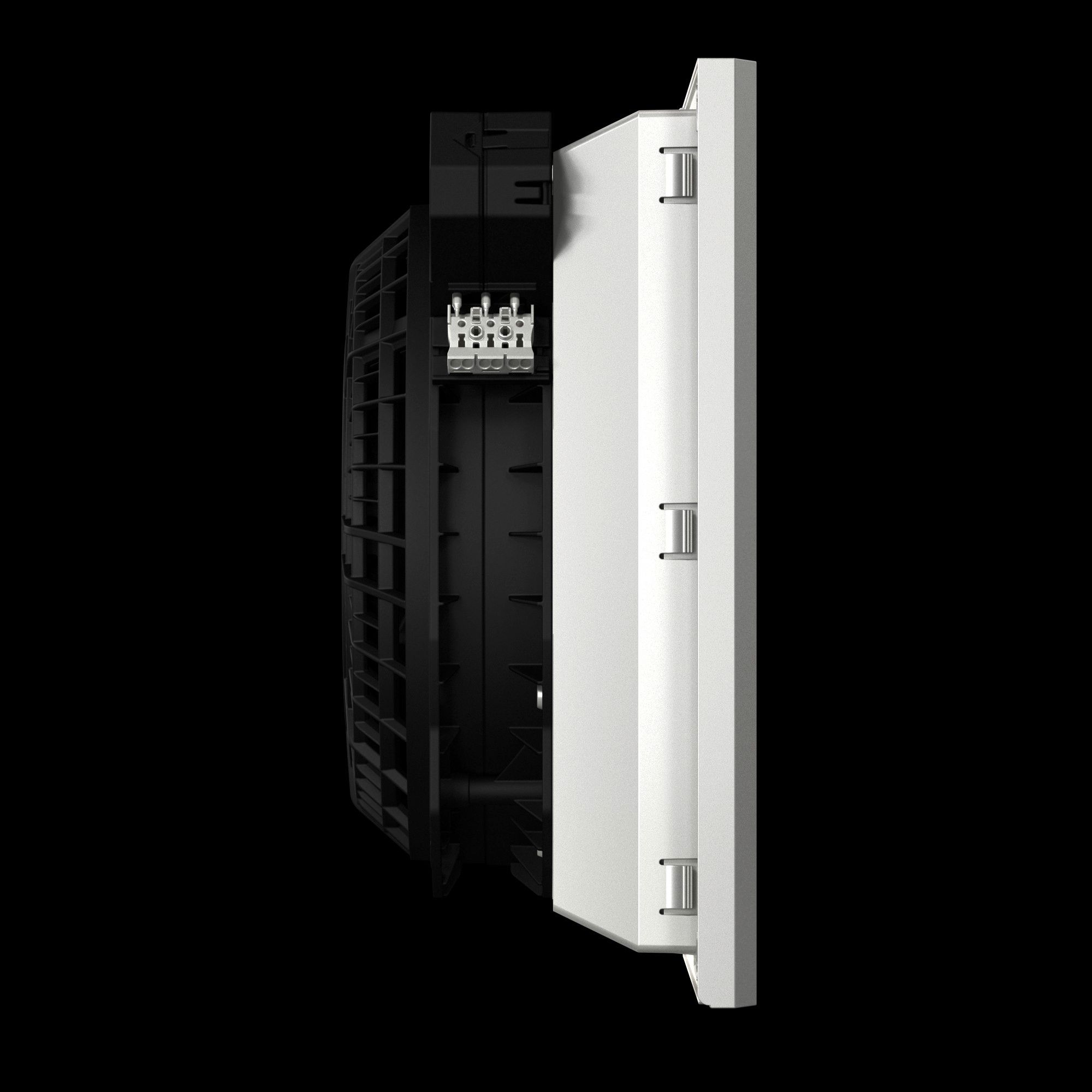

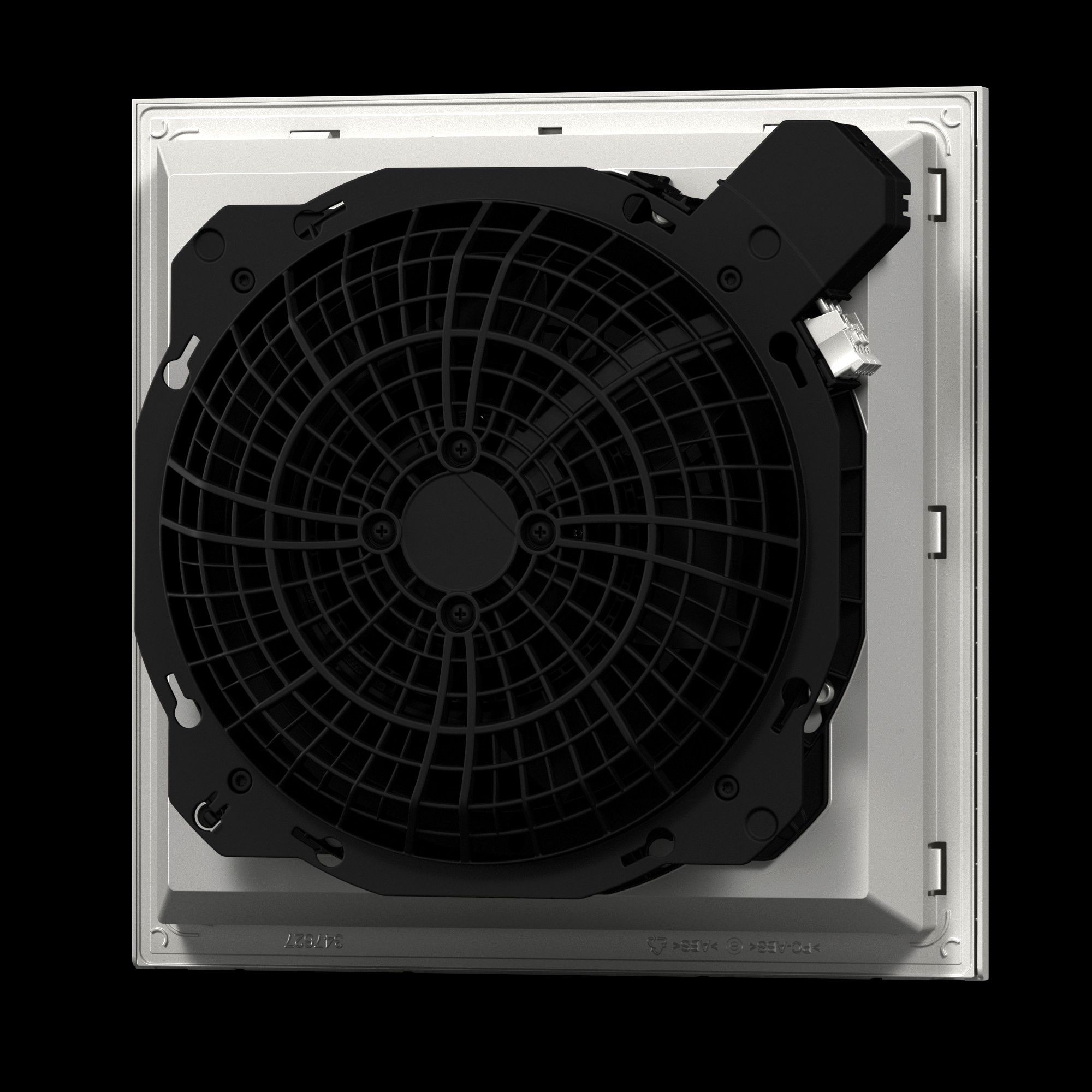

SK Blue e+ filter fan, 625/716 m³/h, 230 V, 1~, 50 Hz/60 Hz, WHD 323 x 323 x 144.5 mm, RAL 7035
