Article no.:

SZ 2500220

Version

without socket

Benefits

Optimum illumination of the entire enclosure

Option of clip-on, screw or magnetic attachment

A configuration to suit every application

Version

90° rotating connector

Adjustable light distribution

Material

Light body: Extruded aluminum

Light cover: polycarbonate

Light ends: PC-ABS

Color

Enclosure: RAL 7016

Supply includes

Assembly screws

Rated power

11 W

Connection options

Power Supply, 2-pole

Through-wiring, 2-pole

Door-operated switch

Protection category

III (SELV)

Light – installation type

Screw fastening

Clip fastening

Magnetic fastener (accessories)

Installation options

Directly onto the enclosure section with 25 mm pitch pattern

Luminous flux

900 lm

Light color

4000 K (neutral white)

Note

Connection accessories should be ordered separately

Dimensions

Width: 437 mm

Height: 75 mm

Depth: 23 mm

( Width: 17.2 ˝

Height: 2.95 ˝

Depth: 0.91 ˝ )

Operating temperature range

-20 °C...55 °C

( -4 °F...131 °F )

Rated operating voltage

24 V (DC)

Protection category IP to IEC 60 529

IP 20

Packaging unit

1 pc(s).

Net weight

0.394 kg

Gross weight

0.54 kg

Customs tariff number

94054990

EAN

4028177806979

ETIM 9

EC000321

ETIM 8

EC000321

ECLASS 8.0

27189241

Product description

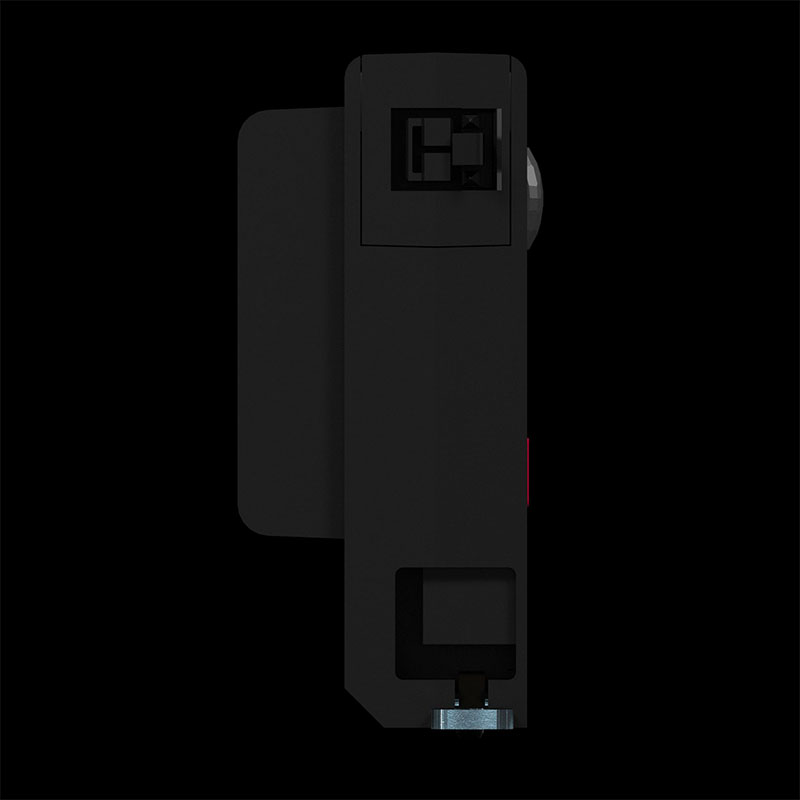

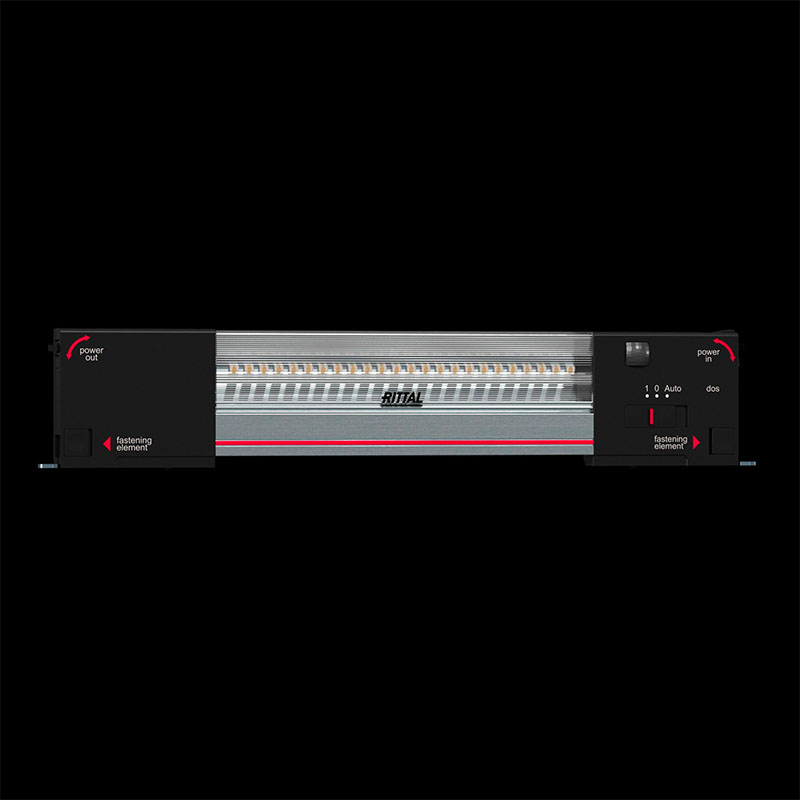

SZ System Light LED, 900 Lumen, L: 437 mm, 24 V DC
