Article no.:

SZ 2500300

Version

with motion detector

Benefits

Optimum illumination of the entire enclosure

Option of clip-on, screw or magnetic attachment

A configuration to suit every application

Version

Motion sensor

90° rotating connector

Adjustable light direction

Adjustable light distribution

Material

Light body: Extruded aluminum

Light cover: polycarbonate

Light ends: PC-ABS

Color

Enclosure: RAL 7016

Supply includes

Assembly screws

Rated power

13 W

Connection options

Power Supply, 3-pole

Through-wiring, 3-pole

Motion detector

Yes

Overvoltage category

II

Protection category

II (total insulation)

Light – installation type

Screw fastening

Clip fastening

Magnetic fastener (accessories)

Rated impulse withstand voltage, phase to earth

2500 V AC

Rated insulation voltage

300 V AC

Installation options

Directly onto the enclosure section with 25 mm pitch pattern

Luminous flux

1,200 lm

Light color

4000 K (neutral white)

Note

Connection accessories should be ordered separately

Dimensions

Width: 437 mm

Height: 85 mm

Depth: 37 mm

( Width: 17.2 ˝

Height: 3.35 ˝

Depth: 1.46 ˝ )

Operating temperature range

-20 °C...55 °C

( -4 °F...131 °F )

Rated operating voltage

100 V - 230 V, 1~, 50 Hz/60 Hz

Protection category IP to IEC 60 529

IP 20

Packaging unit

1 pc(s).

Net weight

0.488 kg

Gross weight

0.65 kg

PCF/VE (cradle-to-gate)

15.9

Customs tariff number

94054990

EAN

4028177809864

ETIM 9

EC000321

ETIM 8

EC000321

ECLASS 8.0

27189241

Product description

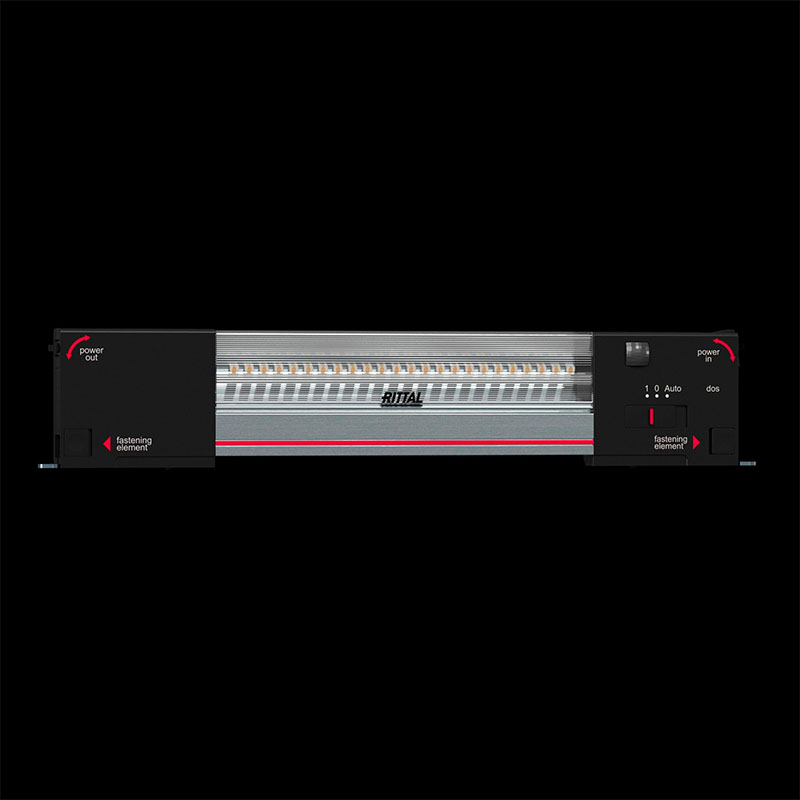

SZ LED system light, 1200 lumens, L: 437 mm, 100-230 V, with motion detector
