Article no.:

SV 3582000

Material

E-Cu

Note

May be cut to length as required

Standards

DIN EN 13 601

Cross-section

20 mm x 5 mm

( 0.79 ˝ x 0.2 ˝ )

Dimensions

Length: 2,400 mm

( Length: 94.5 ˝ )

Packaging unit

6 pc(s).

Net weight

12.6 kg

Gross weight

12.8 kg

Copper weight (kg per piece)

2.15

Customs tariff number

74071000

EAN

4028177044784

ETIM 9

EC001522

ETIM 8

EC001522

ECLASS 8.0

27370303

Product description

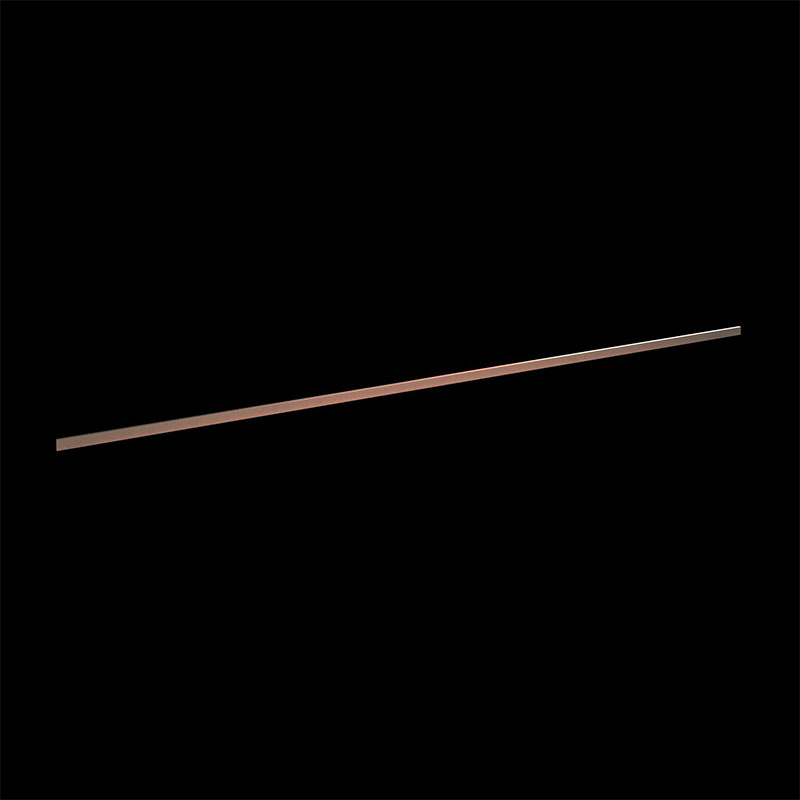

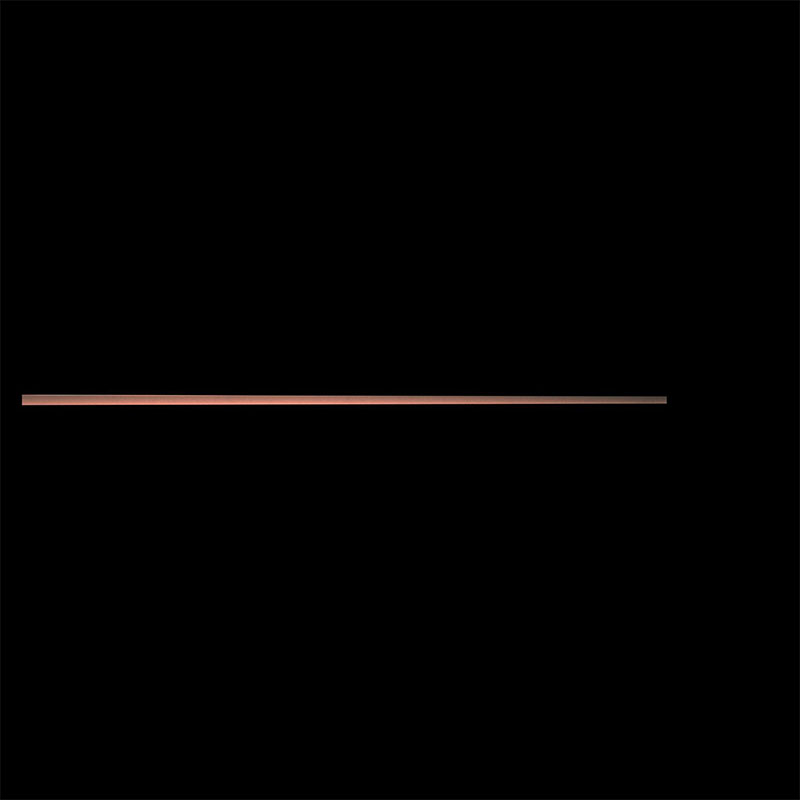

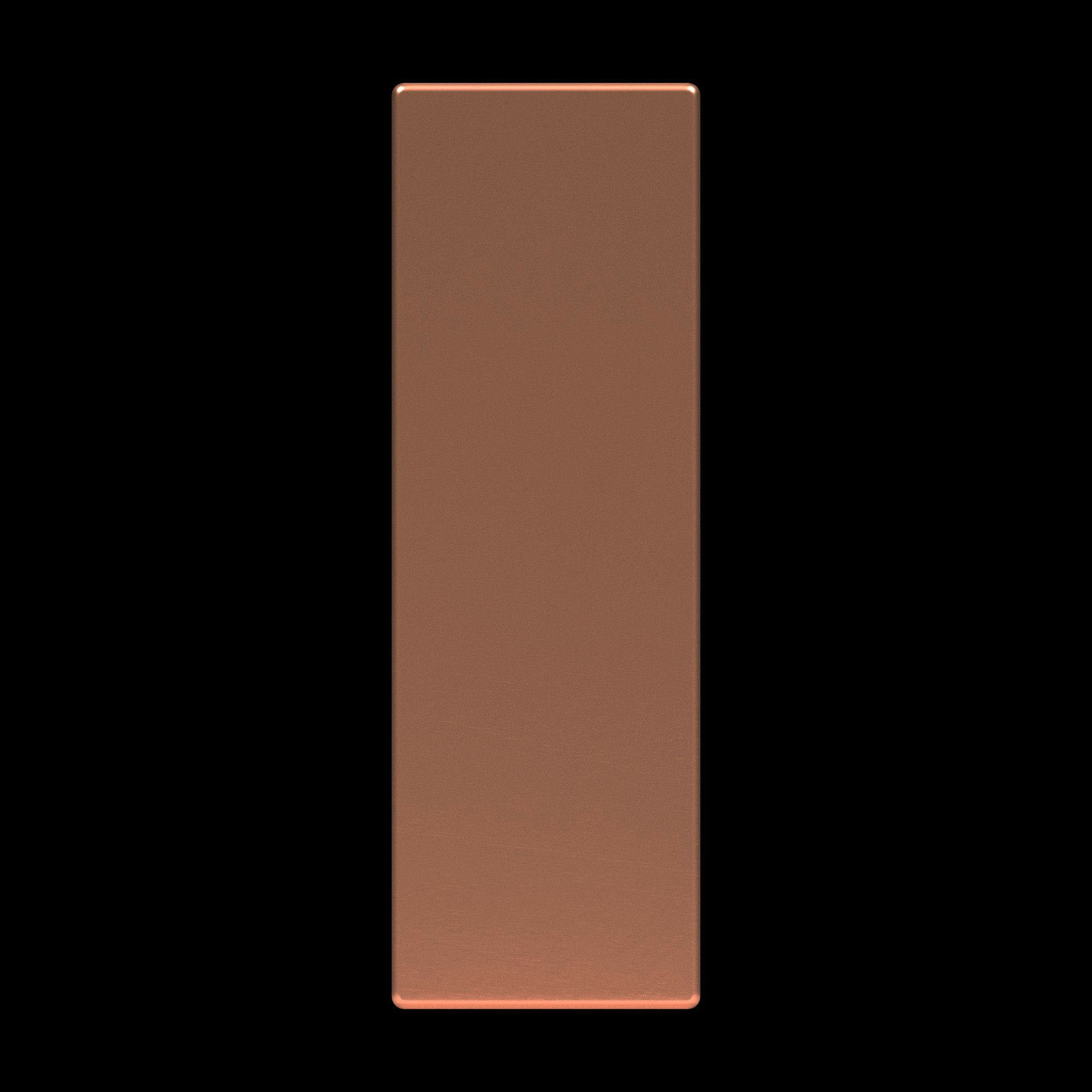

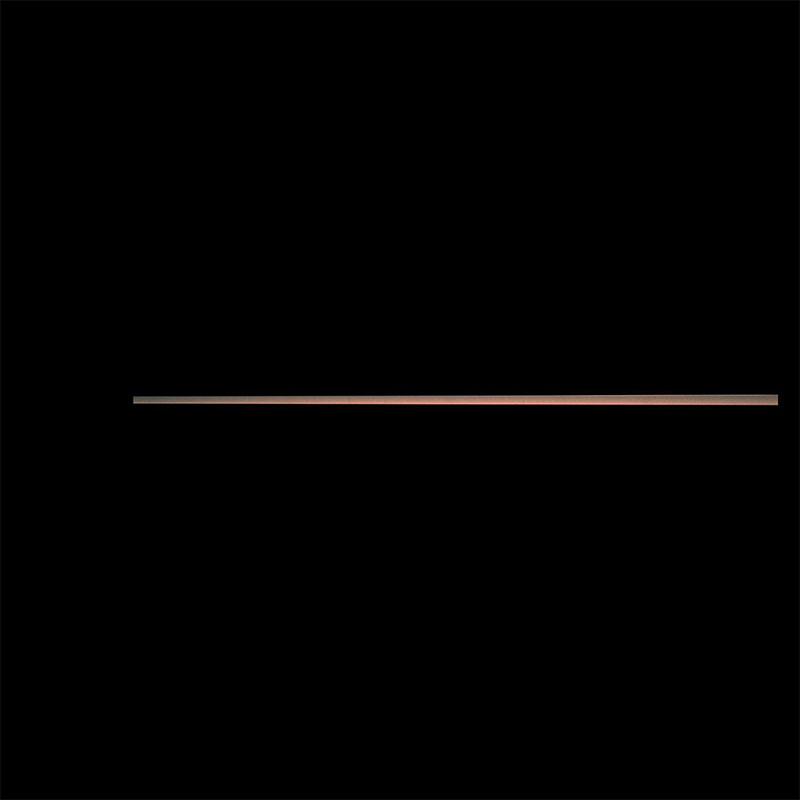

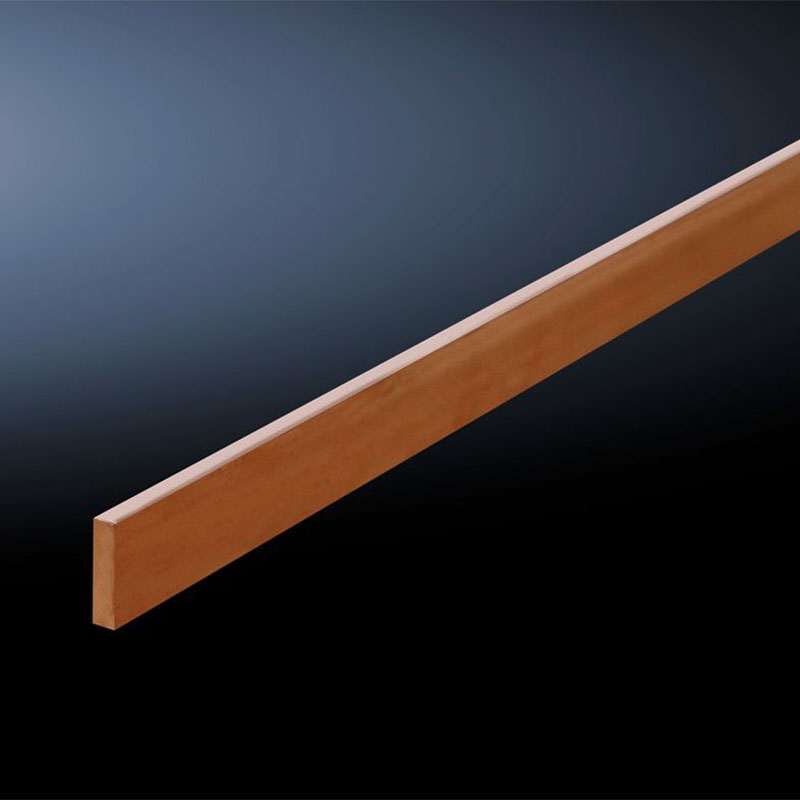

SV Busbar E-Cu, WH: 20x5 mm, L: 2400 mm
