Article no.:

SV 3583000

Material

E-Cu

Note

May be cut to length as required

Standards

DIN EN 13 601

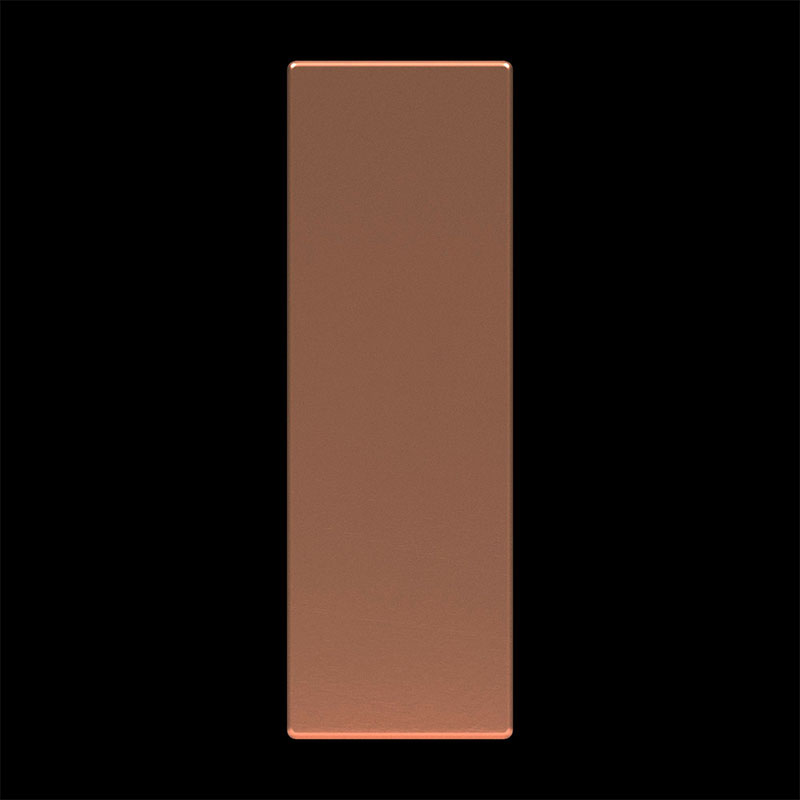

Cross-section

25 mm x 5 mm

( 0.98 ˝ x 0.2 ˝ )

Dimensions

Length: 2,400 mm

( Length: 94.5 ˝ )

Packaging unit

6 pc(s).

Net weight

15.9 kg

Gross weight

16.16 kg

Copper weight (kg per piece)

2.68

Customs tariff number

74071000

EAN

4028177044807

ETIM 9

EC001522

ETIM 8

EC001522

ECLASS 8.0

27370303

Product description

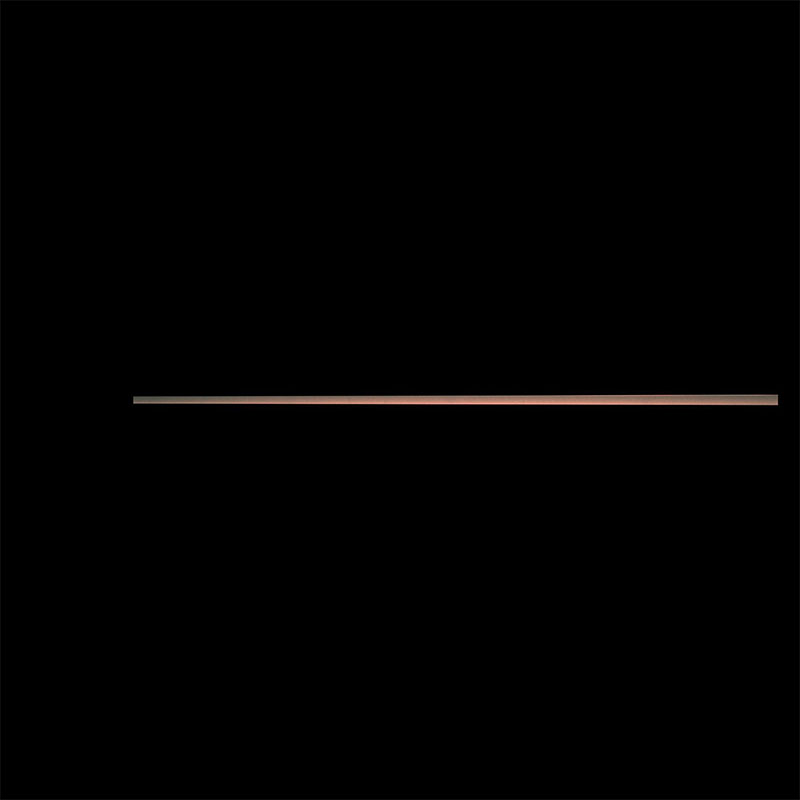

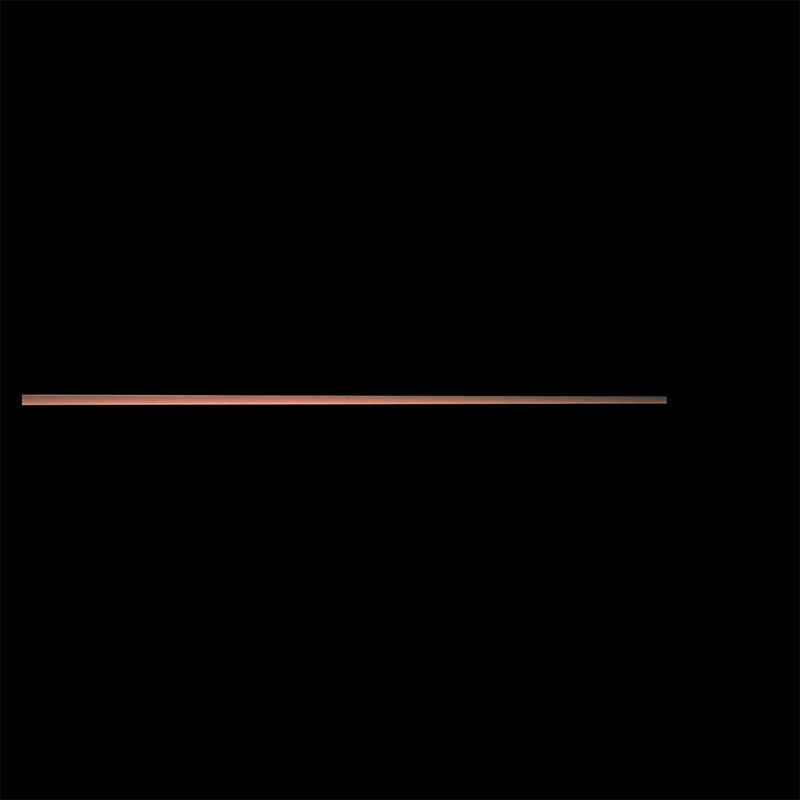

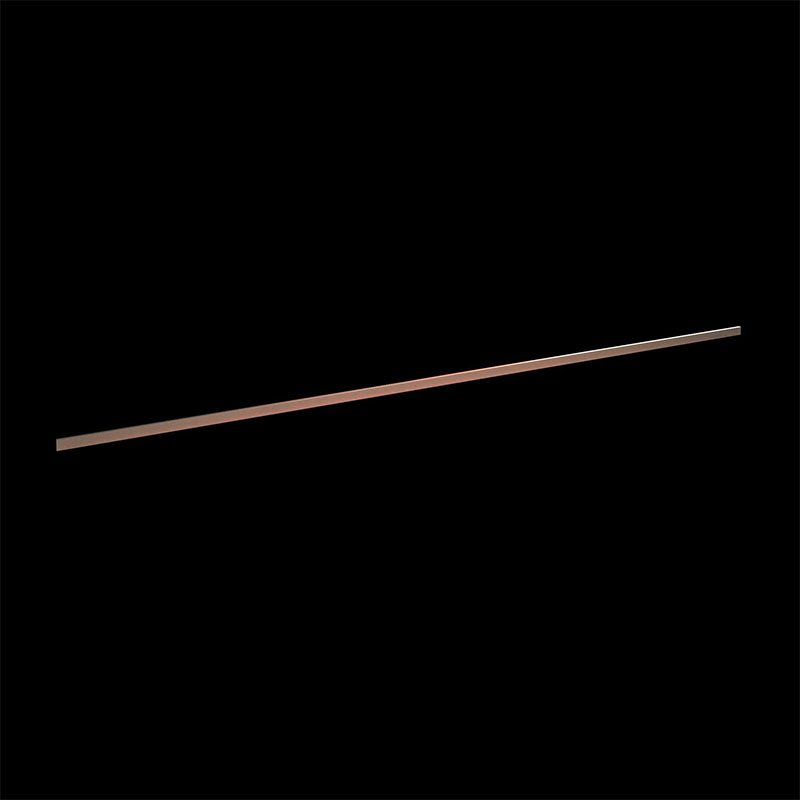

SV Busbar E-Cu, WH: 25x5 mm, L: 2400 mm
