Power distribution

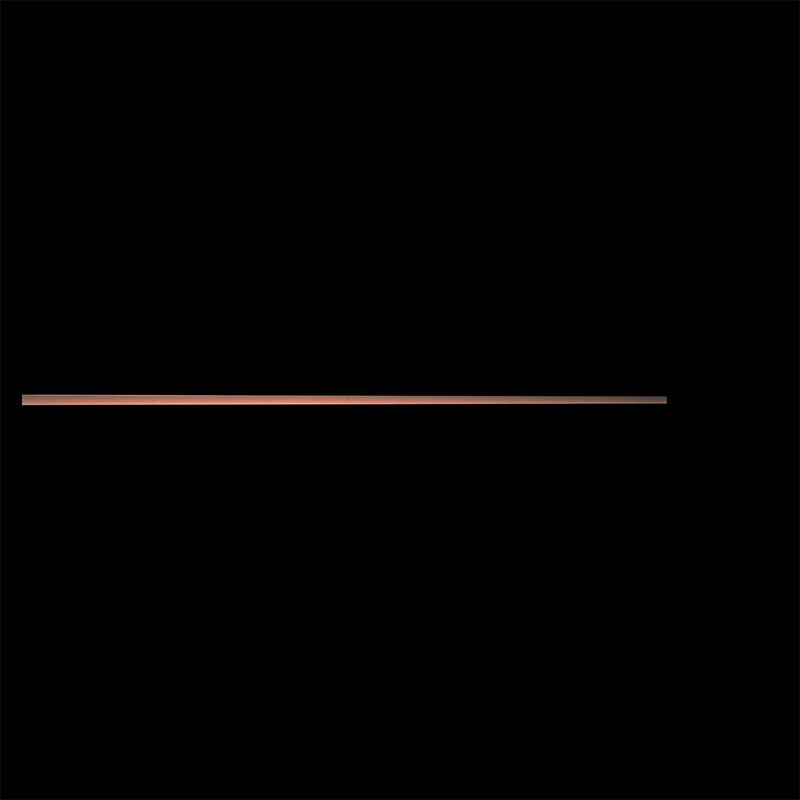

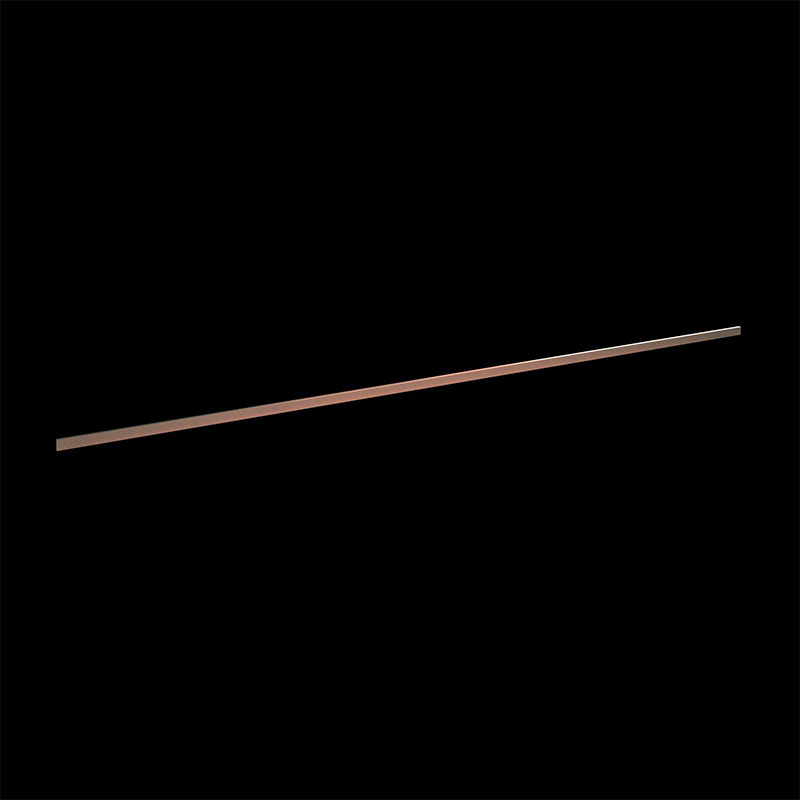

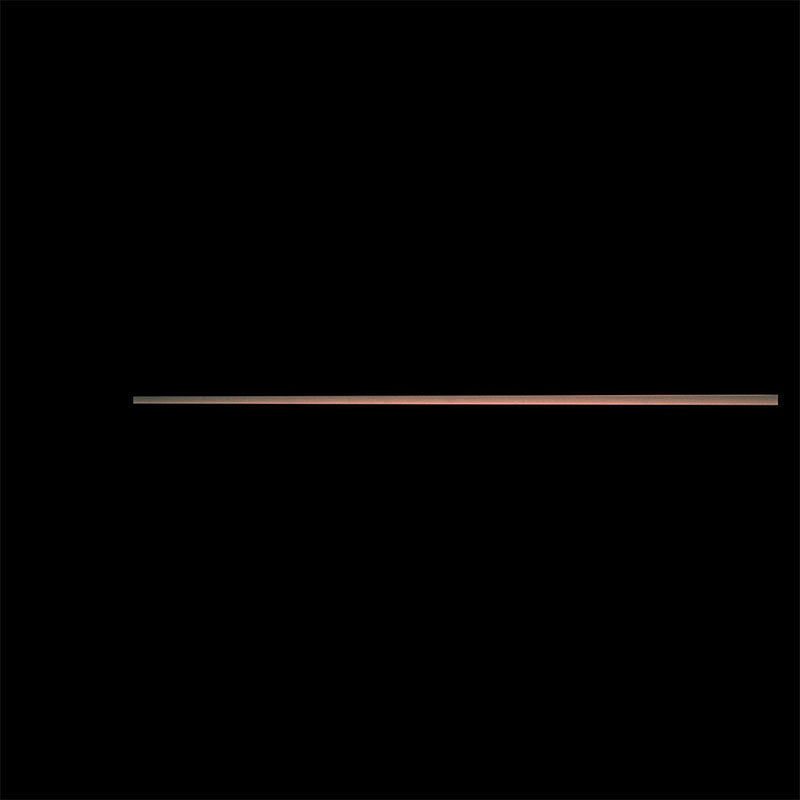

SV 3584000 E-Cu Busbars
Length: 2400 mm (94.5")/bar.
Product description
SV Busbar E-Cu, WH: 30x5 mm, L: 2400 mm
Product Introduction
Article no.:
SV 3584000
Material
E-Cu
Note
May be cut to length as required
Standards
DIN EN 13 601

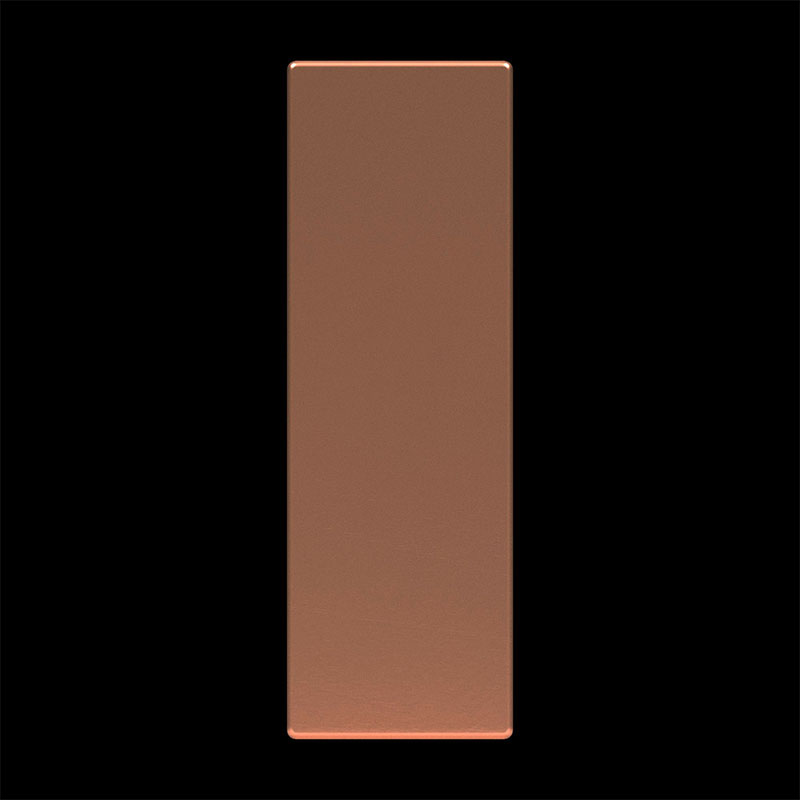

Cross-section
30 mm x 5 mm
( 1.18 ˝ x 0.2 ˝ )
Dimensions
Length: 2,400 mm
( Length: 94.5 ˝ )
Packaging unit
6 pc(s).
Net weight
19.2 kg
Gross weight
19.24 kg
Copper weight (kg per piece)
3.21
Customs tariff number
74071000
EAN
4028177044821
ETIM 9
EC001522
ETIM 8
EC001522
ECLASS 8.0
27370303
Product description
SV Busbar E-Cu, WH: 30x5 mm, L: 2400 mm
